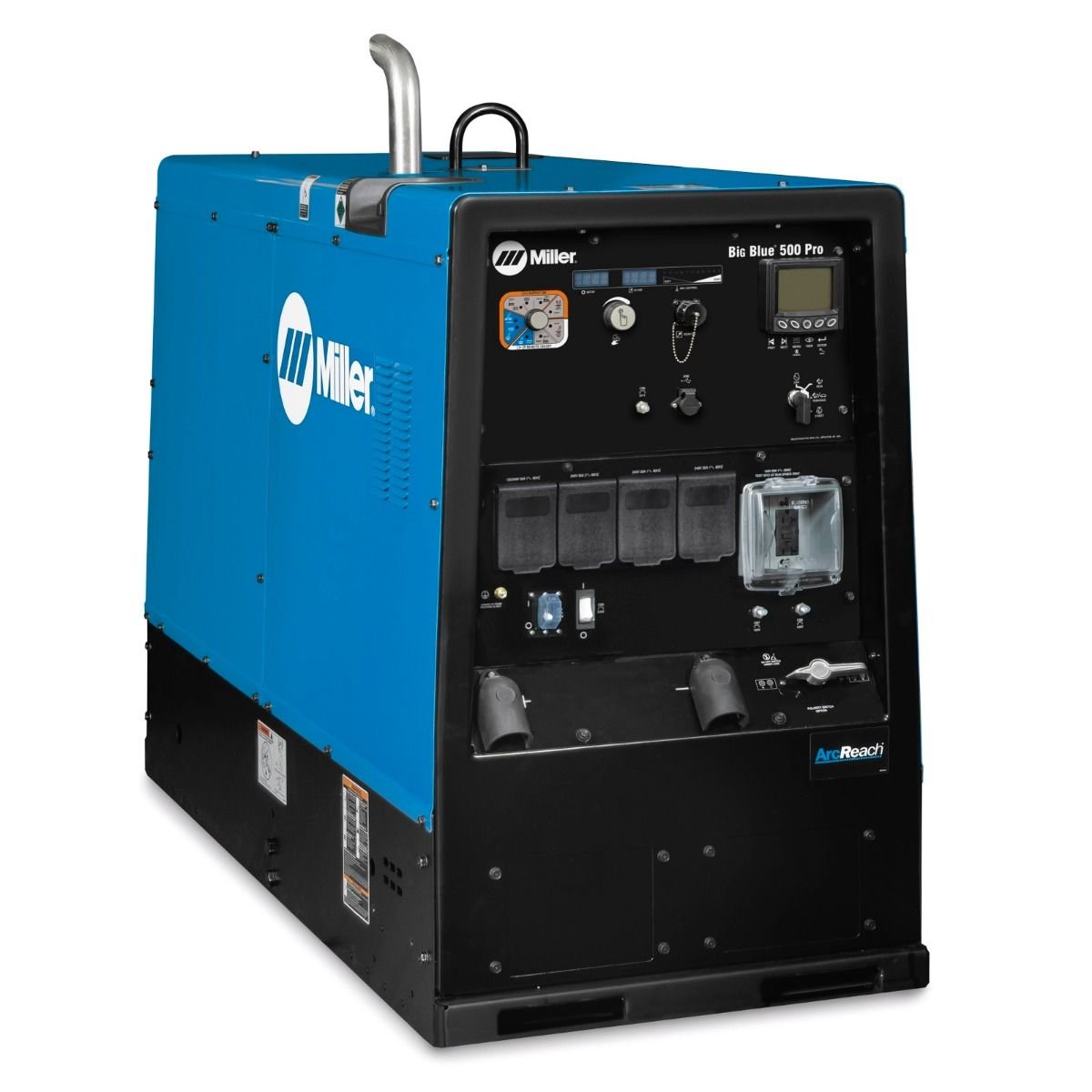

Miller Big Blue 500 Pro Kubota Deluxe Welder/Generator w/ ArcReach
$24,888.00
In Stock
Miller Big Blue 500 Pro Kubota Deluxe features ArcReach technology for remote control without extra cables in heavy industrial sites. Engineered for superior arc performance and stability.
- ArcReach technology allows parameter adjustment at the wire feeder to improve site safety
- Reliable Kubota diesel engine supports high-amperage welding and carbon arc gouging
- Brand New deluxe unit includes digital meters and Miller 3-Year True Blue Warranty
In Stock
2-Day Shipping
All orders are processed and dispatched within 2 days
Description
Miller Big Blue 500 Pro Kubota Deluxe W/Arcreach 907736001
- Brand: Miller
- Model: Big Blue 500 Pro Deluxe with ArcReach
- MPN: 907736001
- Engine: Kubota V2403, Tier 4 Final, 4-Cylinder Diesel
- Engine Power: 48.4 HP @ 1,800 RPM
- Fuel Type: Diesel
- Fuel Tank Capacity: 25 gallons (94.6 liters)
- Welding Output: 500 Amps DC Max
- Duty Cycle: 100% at 500 Amps
- Welding Processes: Stick, MIG, Flux-Cored, DC TIG, Air Carbon Arc Gouging (up to 3/8″)
- ArcReach Technology: Yes – remote parameter adjustment from compatible feeders/remotes
- Auto-Speed Technology: Yes – engine RPM adjusts to match load
- Deluxe Features: GFCI outlets, digital meters, enhanced control panel
- Generator Output (3-Phase): 25,000 Watts Continuous
- Generator Output (1-Phase): 15,000 Watts Continuous
- Noise Level: Approx. 76 dB @ 23 ft under load
- Dimensions: 68 in L × 28.5 in W × 50 in H
- Weight: Approx. 1,490 lbs (676 kg)
- GTIN: 715959664214
- Google Product Category: 2920 (Welding Machines)
- Warranty: 3-Year Miller True Blue Warranty
Miller Big Blue 500 Pro Kubota Deluxe Welder/Generator w/ ArcReach Technical Specifications
| Brand | Miller |
|---|---|
| Full Model Name/SKU | Big Blue 500 Pro Kubota Deluxe w/ ArcReach (907736001) |
| Country of Origin | USA |
| Welding Process | Stick (SMAW), TIG (GTAW), MIG (GMAW), Flux-Cored (FCAW), Air Carbon Arc Gouging |
| Inverter/Transformer Technology | Three-Phase Rotating Field |
| Input Voltage | N/A (Engine Driven) |
| Output Current Range | 20 – 500 A |
| Duty Cycle | 100% @ 400 A, 40% @ 500 A |
| Open Circuit Voltage (OCV) | 92 VDC |
| Rated Input Capacity | 20,000 Watts (Peak) / 12,000 Watts (Continuous) |
| Power Factor & Efficiency | Optimized Fuel-Sip Engine Control |
| Wire Feed Speed Range | N/A |
| Protection Class | IP23 |
| Insulation Class | Class H |
| Cooling System | Liquid-Cooled (Kubota V2403) |
| Dimensions | 813 x 724 x 1422 mm |
| Net Weight | 751 kg |
| Smart Features | ArcReach Technology, Deluxe Digital Gauges, Polarity Reversing Switch |
| Standard Compliance | CSA, EPA Tier 4 Final |
| Primary Application | Infrastructure Construction, Mechanical Contractors, Heavy Fabrication |
