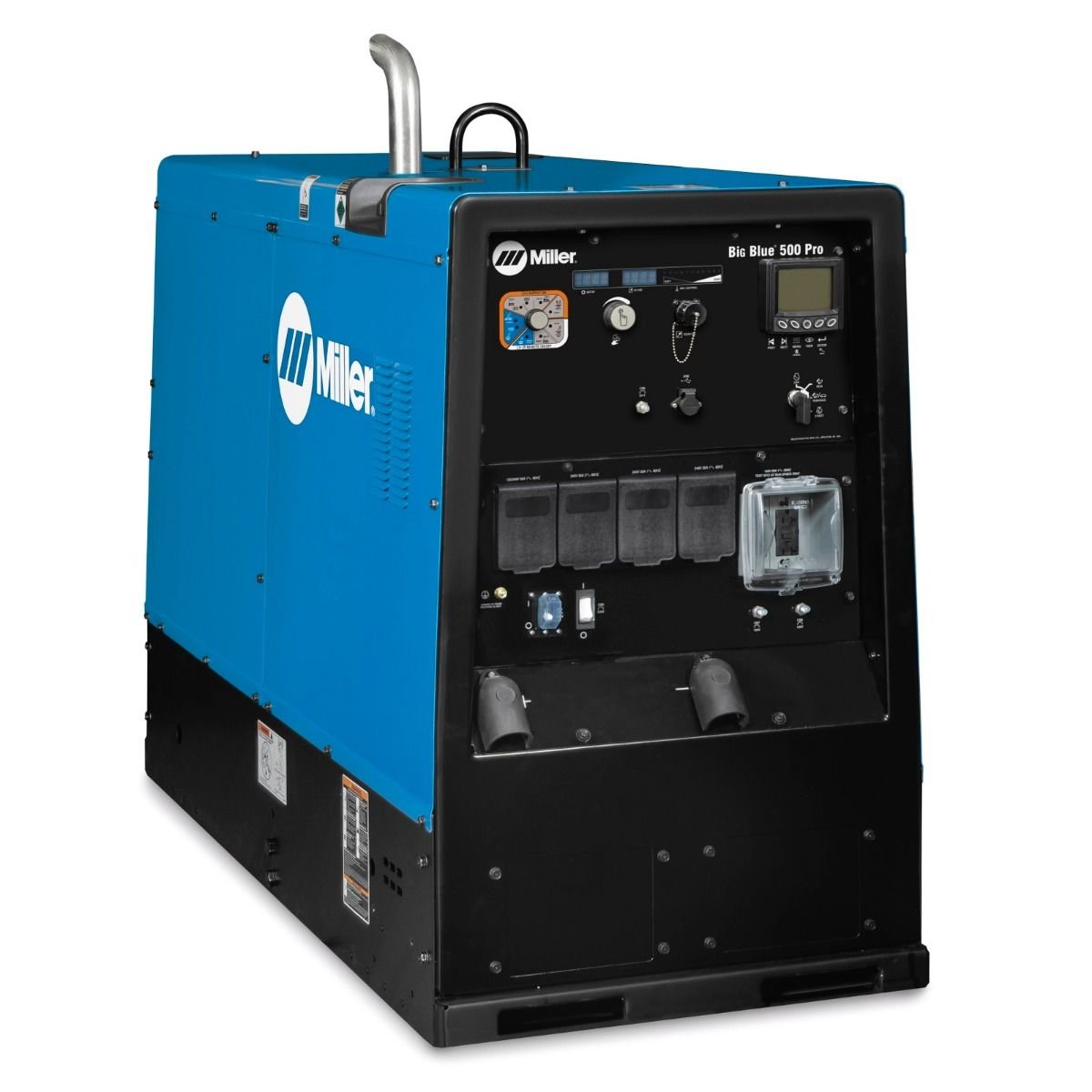

Miller Big Blue 500 Pro Kubota Industrial Welder/Generator
$24,696.00
In Stock
In Stock
Wholesale Price
Request for Quotations
Description
Miller Big Blue 500 Pro Kubota Welder/Generator (907736) Specs
- Brand: Miller
- Model: Big Blue 500 Pro
- MPN: 907736
- Engine: Kubota V2403, Tier 4 Final, 24.7 HP @ 1,800 RPM
- Fuel Type: Diesel
- Fuel Tank Capacity: 24 gallons (90.8 liters)
- Welding Output: 500 Amps @ 40V, 100% Duty Cycle
- Processes: Stick, MIG, Flux-Cored, DC TIG, Gouging (up to 3/8″)
- Generator Output: 20,000 Watts (3-phase) / 12,000 Watts (1-phase)
- ArcReach Technology: Yes
- Digital Display: True Blue digital meters
- Dimensions: 56.6 in L × 28.5 in W × 45 in H
- Weight: Approx. 1,425 lbs (646.3 kg)
- Noise Level: 72.4 dB @ 23 ft (Load)
- Gouging Capacity: Up to 3/8 in (with carbon arc)
- GTIN: 715959674626
- Google Product Category: 2920 (Welding Machines)
- Warranty: 3-Year Miller True Blue Warranty
Miller Big Blue 500 Pro Kubota Industrial Welder/Generator Technical Specifications
| Brand | Miller |
|---|---|
| Full Model Name/SKU | Big Blue 500 Pro Kubota Industrial (907736) |
| Country of Origin | USA |
| Welding Process | Stick (SMAW), TIG (GTAW), MIG (GMAW), Flux-Cored (FCAW), Air Carbon Arc Gouging |
| Inverter/Transformer Technology | Three-Phase Rotating Field Generator |
| Input Voltage | N/A (Engine Driven) |
| Output Current Range | 20 – 500 A |
| Duty Cycle | 100% @ 400 A, 40% @ 500 A |
| Open Circuit Voltage (OCV) | 92 VDC |
| Rated Input Capacity | 20,000 Watts (Peak) / 12,000 Watts (Continuous) Auxiliary Power |
| Power Factor & Efficiency | Low OCV Design for Fuel Efficiency |
| Wire Feed Speed Range | N/A (Compatible with 70 Series/ArcReach Feeders) |
| Protection Class | IP23 |
| Insulation Class | Class H |
| Cooling System | Liquid-Cooled (Kubota V2403) |
| Dimensions | 813 x 724 x 1422 mm |
| Net Weight | 751 kg |
| Smart Features | ArcReach Technology, Digital Meters, Vandalism Lockout |
| Standard Compliance | CSA (US/Canada), EPA Tier 4 Final Compliant |
| Primary Application | Heavy Industrial Construction, Pipe Welding, Mining Maintenance |
