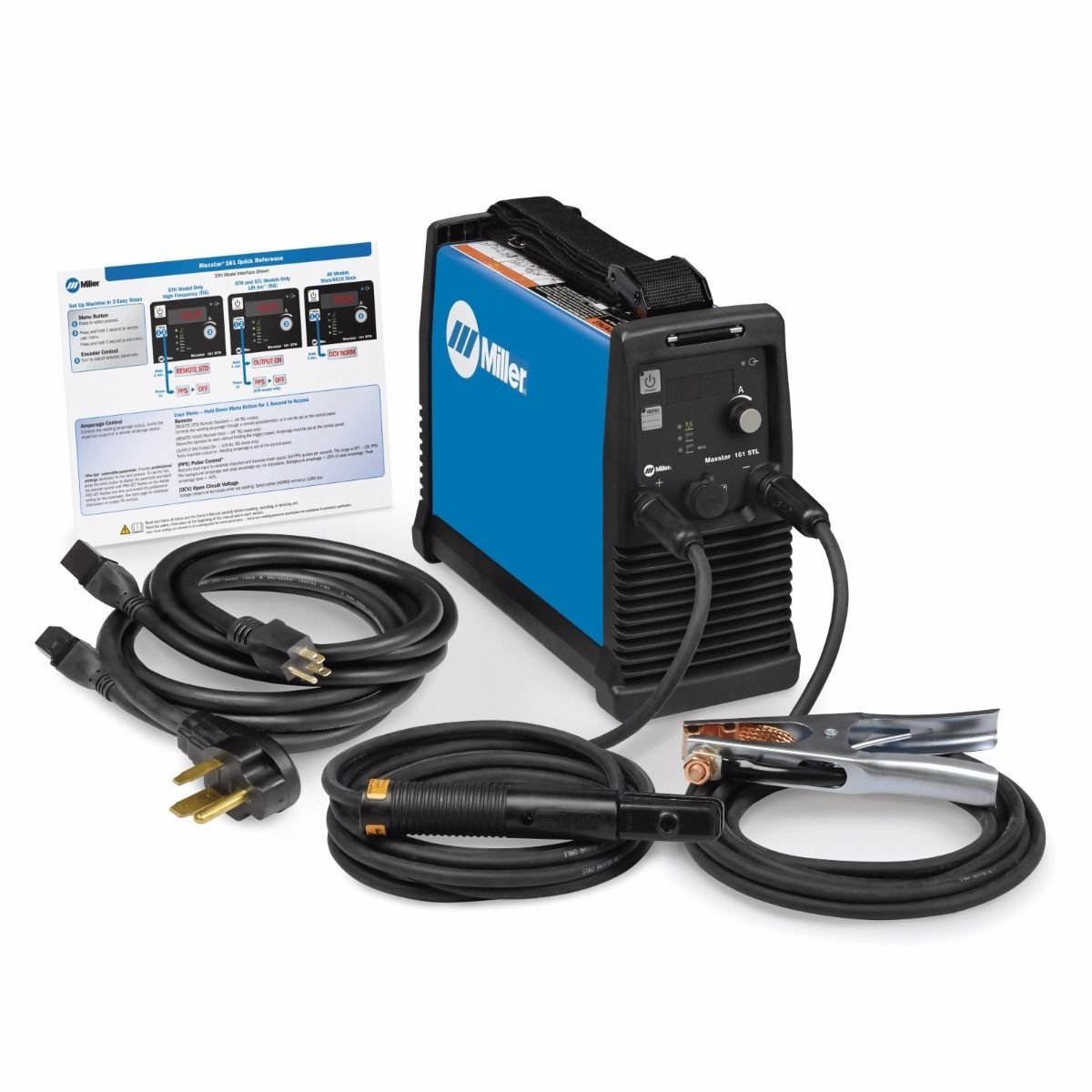

Miller 907710 Maxstar 161 STL Portable DC TIG & Stick Welder
$1,038.00
In Stock
Miller 907710 Maxstar 161 STL is a portable DC TIG and Stick welder for site-work. This compact unit offers industrial performance in a lightweight package.
- Equipped with Lift-Arc TIG for reliable starts without the need for high frequency, ideal for work near sensitive electronics
- Features Fan-On-Demand technology to reduce noise and intake of contaminants into the power source
- Brand New unit featuring a compact design and Miller’s professional-grade warranty
In Stock
2-Day Shipping
All orders are processed and dispatched within 2 days
Description
Miller Maxstar 161 Stl Tig And Stick Welder 907710 Specs
- Brand: Miller
- Model: Maxstar 161 STL
- MPN: 907710
- Processes: DC TIG (GTAW), Stick (SMAW)
- Input Voltage: 120V / 240V (Dual Voltage)
- Output Range: 20 – 160 Amps
- Rated Output: 160A @ 60% Duty Cycle (DC TIG at 240V)
- Technology: Inverter-based, Lift-Arc, Adaptive Hot Start, Fan-On-Demand
- Display: Basic 2-knob analog interface
- Material Compatibility: Steel, Stainless Steel
- Weight: 13 lbs (5.9 kg)
- Dimensions: 9 in H × 5.5 in W × 13.25 in D
- Portability: Ultra-portable with shoulder strap
- Included Accessories: Electrode holder, work clamp, 120V and 240V power cords, shoulder strap
- Google Product Category: 2920 (Welding Machines)
- Warranty: 3-Year Miller True Blue Warranty
Miller Maxstar 161 STL Portable DC TIG & Stick Welder Technical Specifications
| Brand | Miller |
|---|---|
| Full Model Name/SKU | Maxstar 161 STL (907710) |
| Country of Origin | USA |
| Welding Process | DC TIG (GTAW), Stick (SMAW) |
| Inverter/Transformer Technology | DC IGBT Inverter |
| Input Voltage | 120 / 240 V (Multi-Voltage Plug / MVP) |
| Output Current Range | 5 – 160 A |
| Duty Cycle | 30% @ 160 A (240V), 100% @ 110 A (240V) |
| Open Circuit Voltage (OCV) | 48 VDC |
| Rated Input Capacity | 6.3 kVA |
| Power Factor & Efficiency | Compact High-Frequency Inverter Optimization |
| Wire Feed Speed Range | N/A |
| Protection Class | IP23 |
| Insulation Class | Class F |
| Cooling System | Fan-On-Demand |
| Dimensions | 262 x 139 x 343 mm |
| Net Weight | 5.9 kg |
| Smart Features | Lift-Arc Start (No HF), MVP Plug System, Auto-Line, Thermal Overload Protection |
| Standard Compliance | CSA, IEC 60974-1 |
| Primary Application | HVAC, Maintenance/Repair, Dairy/Food Grade Repair, Process Piping |
