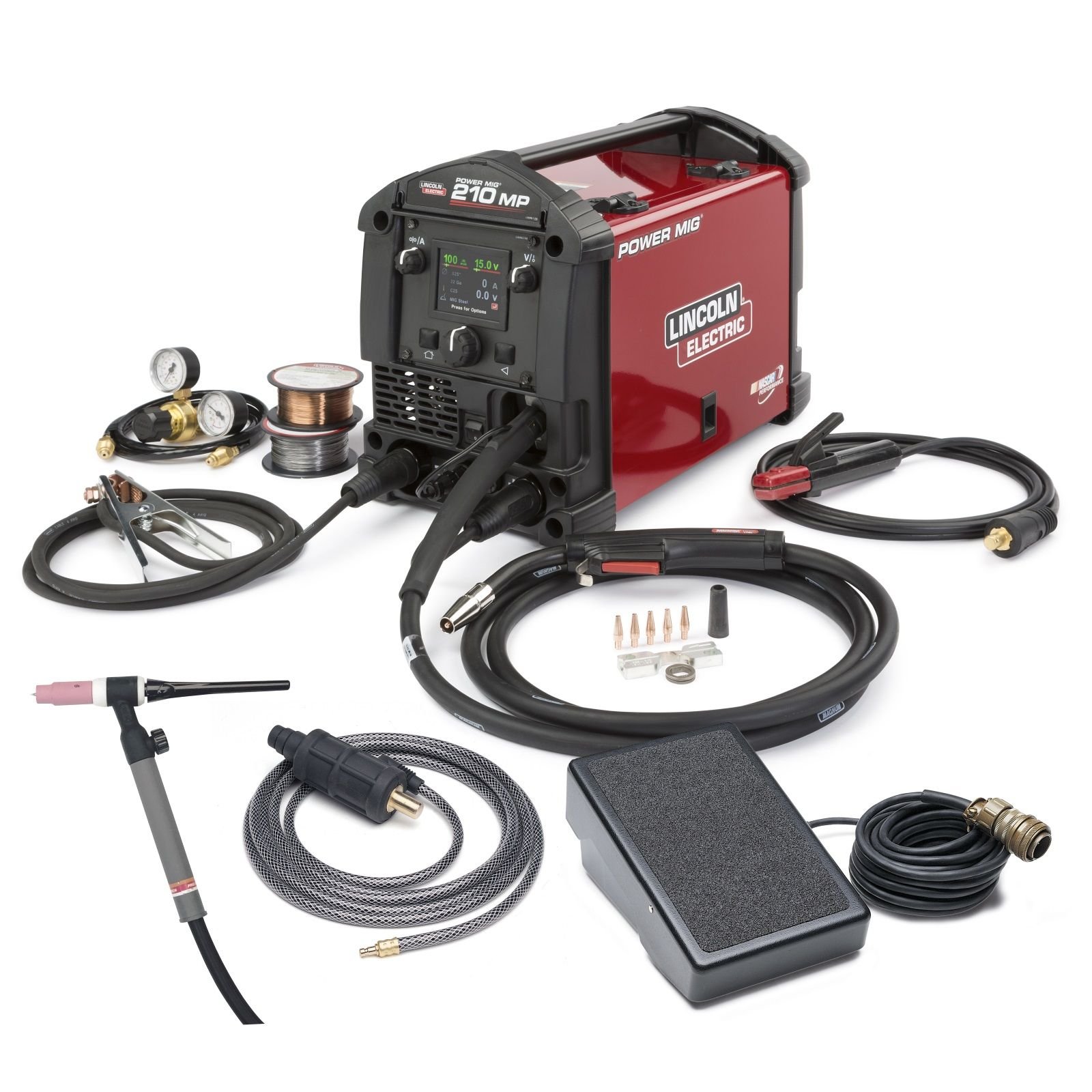

Lincoln K4195-2 Power MIG 210 MP Multi-Process Welder w/ TIG Kit
$1,776.00
In Stock
In Stock
Wholesale Price
Request for Quotations
Description
Lincoln Power Mig 210 Mp Multi Process Welder With Tig Kit K4195-2 Specs
- Brand: Lincoln Electric
- Model: Power MIG 210 MP with TIG Kit
- MPN: K4195-2
- Processes: MIG (GMAW), Flux-Cored (FCAW), Stick (SMAW), DC TIG (GTAW)
- Input Voltage: 120V / 230V (Dual Voltage)
- Output Range: 20 – 220 Amps (230V), 20 – 140 Amps (120V)
- Rated Output: 200A @ 25% Duty Cycle
- Technology: Inverter-based, Digital Display, Spool Gun Ready
- Display: Color LCD Interface with push-and-turn control
- Material Compatibility: Mild Steel, Stainless Steel, Aluminum (with optional spool gun)
- Included Accessories: PTA-17FV TIG Torch, Foot Pedal, Stick Electrode Holder, MIG Gun, Work Clamp, Gas Regulator, Spool of wire
- Weight: Approx. 40 lbs (18.1 kg)
- Dimensions: 14 in H × 10.75 in W × 19 in D
- Portability: Lightweight, portable, carry handle included
- Google Product Category: 2920 (Welding Machines)
- Warranty: 3-Year Lincoln Industrial Warranty
Lincoln Power MIG 210 MP Multi-Process Welder w/ TIG Kit Technical Specifications
| Brand | Lincoln Electric |
|---|---|
| Full Model Name/SKU | Power MIG 210 MP w/ TIG Kit (K4195-2) |
| Country of Origin | USA |
| Welding Process | MIG (GMAW), Flux-Cored (FCAW), Stick (SMAW), DC TIG (GTAW) |
| Inverter/Transformer Technology | IGBT Inverter |
| Input Voltage | 120 / 230 V (Dual Voltage) |
| Output Current Range | 20 – 210 A |
| Duty Cycle | 25% @ 200 A, 40% @ 100 A |
| Open Circuit Voltage (OCV) | 56 VDC |
| Rated Input Capacity | 6.4 kVA |
| Power Factor & Efficiency | Active Power Factor Correction (PFC) Efficiency |
| Wire Feed Speed Range | 1.3 – 12.7 m/min (50 – 500 ipm) |
| Protection Class | IP21S |
| Insulation Class | Class H |
| Cooling System | Forced Air |
| Dimensions | 356 x 273 x 483 mm |
| Net Weight | 18.1 kg |
| Smart Features | TIG Torch and Foot Pedal Included, Color LCD Interface, Push-and-Turn Controls |
| Standard Compliance | CSA, IEC 60974-1 |
| Primary Application | Light Fabrication, Automotive Repair, Maintenance, On-Site Restoration |
