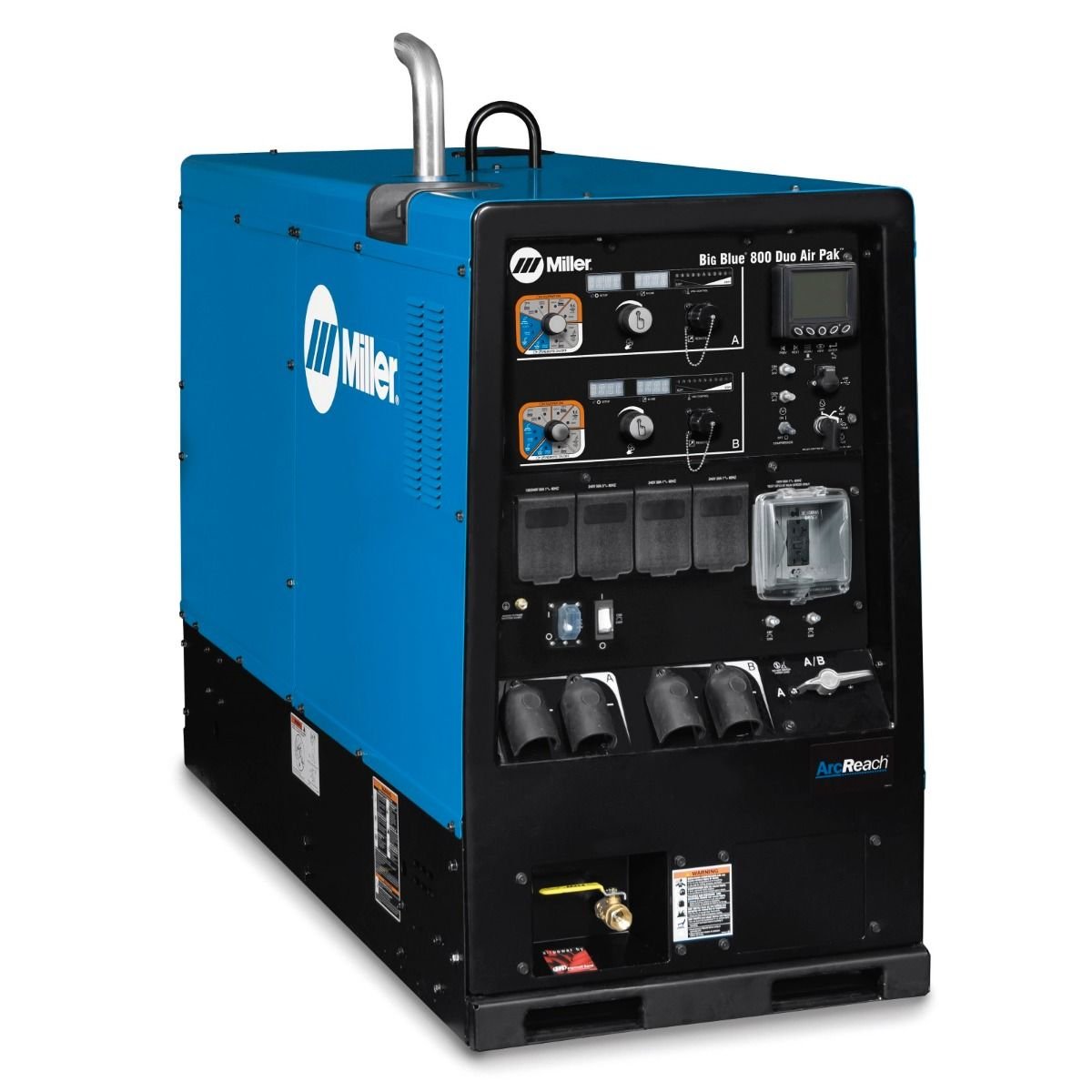

Miller Big Blue 800 Duo Air Pak Dual Operator Welder/Generator w/ ArcReach & Air Compressor
$38,112.00
In Stock
Miller Big Blue 800 Duo Air Pak is an all-in-one dual operator system integrating a welder, generator, and high-capacity air compressor. Engineered for extreme site efficiency.
- Integrated rotary screw compressor delivers 60 CFM to support heavy pneumatic tools
- Dual operator 800A capacity allows two independent welders to maximize field uptime
- Brand New unit includes ArcReach technology and a Miller 3-Year True Blue Warranty
In Stock
2-Day Shipping
All orders are processed and dispatched within 2 days
Description
Miller Big Blue 800 Duo Air Pak Welder/Generator W/Arcreach 907752
- Brand: Miller
- Model: Big Blue 800 Duo Air Pak with ArcReach
- MPN: 907752
- Engine: Deutz TD2.9L4 Turbo Diesel, Tier 4 Final
- Engine Power: 65.7 HP @ 1,800 RPM
- Fuel Type: Diesel
- Fuel Tank Capacity: 25 gallons (94.6 liters)
- Welding Output: 2 x 400 Amps (dual operator)
- Duty Cycle: 100% at 400A per side
- Welding Processes: Stick (SMAW), TIG (GTAW), MIG (GMAW), Flux-Cored (FCAW), Carbon Arc Gouging (up to 1/2″)
- ArcReach: Yes – remote control of weld parameters at the arc
- Compressor: Ingersoll Rand Rotary Screw Air Compressor
- Air Output: 60 CFM at 100 PSI
- Generator Output (3-Phase): 27,000 watts continuous
- Generator Output (1-Phase): 11,000 watts continuous
- Receptacles: GFCI-protected 120V/240V outlets
- Auto-Speed Technology: Yes – adjusts engine RPM for efficiency
- Noise Level: Approx. 74 dB @ 23 ft under load
- Dimensions: 78 in L × 28.5 in W × 48.5 in H
- Weight: Approx. 2,000 lbs (907 kg)
- GTIN: 715959659936
- Google Product Category: 2920 (Welding Machines)
- Warranty: 3-Year Miller True Blue Warranty
Miller Big Blue 800 Duo Air Pak Dual Operator Welder/Generator Technical Specifications
| Brand | Miller |
|---|---|
| Full Model Name/SKU | Big Blue 800 Duo Air Pak (907753) |
| Country of Origin | USA |
| Welding Process | Dual-Operator Stick, TIG, MIG, Flux-Cored, SAW, Air Carbon Arc |
| Inverter/Transformer Technology | Three-Phase Rotating Field Generator |
| Input Voltage | N/A (Engine Driven) |
| Output Current Range | 20 – 800 A (Single) / 20 – 400 A (Dual) |
| Duty Cycle | 100% @ 400 A (Dual), 100% @ 800 A (Single) |
| Open Circuit Voltage (OCV) | 85 VDC |
| Rated Input Capacity | 27,000 Watts (Peak) / 20,000 Watts (Continuous) |
| Power Factor & Efficiency | Heavy-Duty Industrial Efficiency |
| Wire Feed Speed Range | N/A |
| Protection Class | IP23 |
| Insulation Class | Class H |
| Cooling System | Liquid-Cooled (Deutz TD2.9 L4) |
| Dimensions | 813 x 724 x 1753 mm |
| Net Weight | 951 kg |
| Smart Features | Dual Operator Control, 60 CFM Ingersoll Rand Compressor, ArcReach |
| Standard Compliance | CSA, EPA Tier 4 Final |
| Primary Application | Heavy Industrial Fabrication, Rail, Mining, Large Bore Pipe |
