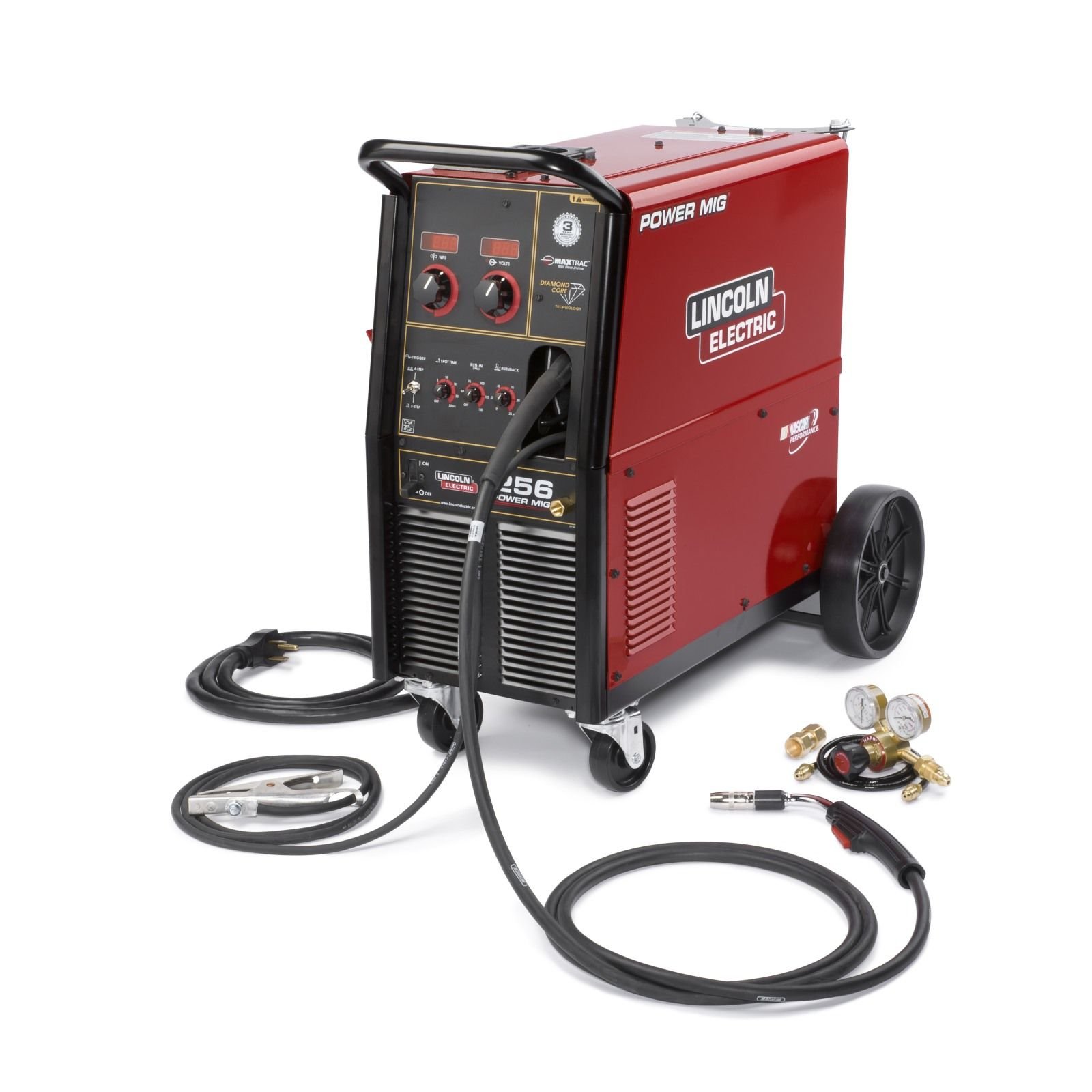

Lincoln K3068-1 Power MIG 256 250A MIG Welder Package (208/230V)
$2,496.00
In Stock
In Stock
Wholesale Price
Request for Quotations
Description
Lincoln Power Mig 256 Welder Package 208/230 Vk3068-1 Specs
- Brand: Lincoln Electric
- Model: Power MIG 256
- MPN: K3068-1
- Processes: MIG (GMAW), Flux-Cored (FCAW)
- Input Voltage: 208/230V, 1 Phase
- Output Range: 30 – 300 Amps
- Rated Output: 250A @ 40% Duty Cycle
- Wire Feed Speed: 50 – 700 IPM
- Technology: Transformer-Based with Digital Display
- Display: 7-Segment Digital Display with Adjustable Voltage and WFS
- Material Compatibility: Mild Steel, Stainless Steel, Aluminum
- Included Accessories: Magnum 250L Gun, Gas Regulator & Hose, Work Clamp, Input Cable, Spindle Adapter
- Wire Diameter Capacity: 0.023 in – 0.045 in (Steel), 0.035 in – 3/64 in (Aluminum)
- Weight: Approx. 218 lbs (98.9 kg)
- Dimensions: 31 in H × 18.5 in W × 38 in D
- Google Product Category: 2920 (Welding Machines)
- Warranty: 3-Year Lincoln Industrial Warranty
Lincoln Power MIG 256 250A MIG Welder Package Technical Specifications
| Brand | Lincoln Electric |
|---|---|
| Full Model Name/SKU | Power MIG 256 Package (K3068-1) |
| Country of Origin | USA |
| Welding Process | MIG (GMAW), Flux-Cored (FCAW) |
| Inverter/Transformer Technology | Diamond Core Technology (Transformer) |
| Input Voltage | 208 / 230 V (Single-Phase Only) |
| Output Current Range | 30 – 300 A |
| Duty Cycle | 40% @ 250 A |
| Open Circuit Voltage (OCV) | 40 VDC |
| Rated Input Capacity | 12.4 kVA @ 230V |
| Power Factor & Efficiency | Stable Arc Transformer Technology |
| Wire Feed Speed Range | 1.3 – 17.8 m/min (50 – 700 ipm) |
| Protection Class | IP21 |
| Insulation Class | Class H |
| Cooling System | Air-Cooled |
| Dimensions | 813 x 483 x 1016 mm |
| Net Weight | 100 kg |
| Smart Features | Diamond Core Technology, MAXTRAC Drive System, Spool Gun Ready, Digital Meters |
| Standard Compliance | CSA, NEMA |
| Primary Application | Fabrication, Automotive, Agricultural, Industrial Maintenance |
