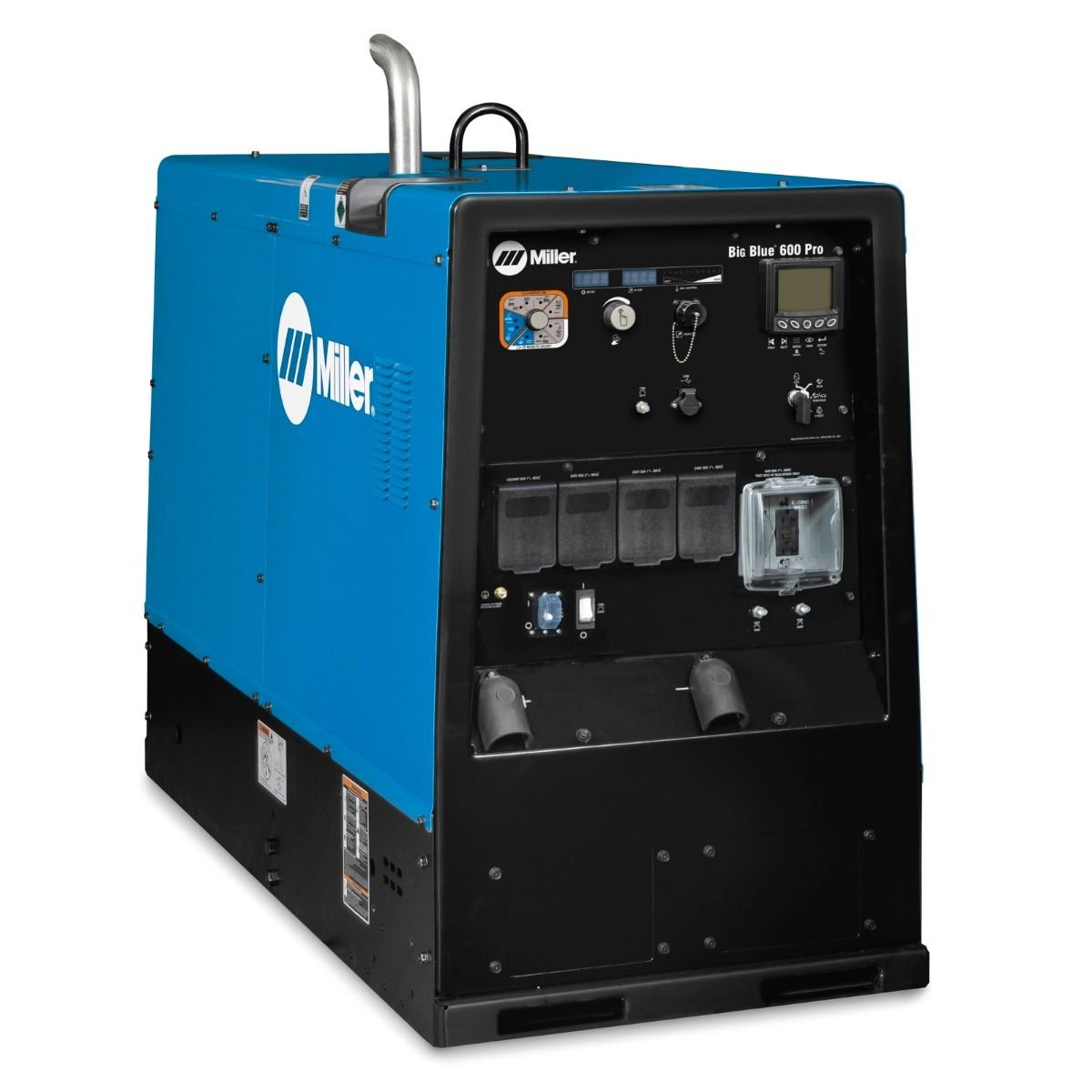

Miller Big Blue 600 Pro Kubota Industrial Welder/Generator
$26,886.00
In Stock
Miller Big Blue 600 Pro Kubota is a high-output industrial welder generator designed for the most demanding heavy-duty fabrication tasks. Engineered for maximum reliability and uptime.
- Massive 600A welding output supports large diameter wires and heavy gouging rods
- Kubota Tier 4 Final engine delivers powerful performance with low maintenance costs
- Brand New industrial unit features a rugged design and 3-Year Miller Warranty
In Stock
2-Day Shipping
All orders are processed and dispatched within 2 days
Description
Miller Big Blue 600 Pro Kubota Welder/Generator 907737
- Brand: Miller
- Model: Big Blue 600 Pro
- MPN: 907737
- Engine Brand: Kubota
- Engine Model: V3600, 4-Cylinder Diesel, Tier 4 Final
- Engine Power: 74.3 HP @ 1,800 RPM
- Fuel Type: Diesel
- Fuel Tank Capacity: 40 gallons (151.4 liters)
- Welding Output: 40 – 600 Amps DC
- Duty Cycle: 100 percent at 600 Amps
- Processes Supported: Stick, MIG, Flux-Cored, DC TIG, Air Carbon Arc Gouging (up to 3/8″)
- ArcReach Technology: Yes – full remote parameter control
- Auto-Speed Technology: Yes – automatic engine RPM adjustment to load
- Generator Output (3-Phase): 25,000 Watts Continuous
- Generator Output (1-Phase): 15,000 Watts Continuous
- Power Quality: Clean, independent generator power – safe for sensitive equipment
- Air Carbon Arc Gouging Capacity: Up to 3/8 inch
- Noise Level: 75 dB @ 23 ft under load
- Dimensions: 68 in L × 28.5 in W × 50 in H
- Weight: Approx. 1,725 lbs (782 kg)
- GTIN: 715959675704
- Google Product Category: 2920 (Welding Machines)
- Warranty: 3-Year Miller True Blue Warranty
Miller Big Blue 600 Pro Kubota Industrial Welder/Generator Technical Specifications
| Brand | Miller |
|---|---|
| Full Model Name/SKU | Big Blue 600 Pro Kubota Industrial (907739) |
| Country of Origin | USA |
| Welding Process | Stick (SMAW), TIG (GTAW), MIG (GMAW), Flux-Cored (FCAW), Air Carbon Arc Gouging |
| Inverter/Transformer Technology | Three-Phase Rotating Field Generator |
| Input Voltage | N/A (Engine Driven) |
| Output Current Range | 20 – 600 A |
| Duty Cycle | 100% @ 500 A, 60% @ 600 A |
| Open Circuit Voltage (OCV) | 92 VDC |
| Rated Input Capacity | 20,000 Watts (Peak) / 12,000 Watts (Continuous) Auxiliary Power |
| Power Factor & Efficiency | Low OCV Design for Fuel Savings |
| Wire Feed Speed Range | N/A |
| Protection Class | IP23 |
| Insulation Class | Class H |
| Cooling System | Liquid-Cooled (Kubota V2403) |
| Dimensions | 813 x 724 x 1422 mm |
| Net Weight | 751 kg |
| Smart Features | ArcReach Technology Compatible, Industrial Digital Meters, Vandalism Lockout |
| Standard Compliance | CSA (US/Canada), EPA Tier 4 Final Compliant |
| Primary Application | Heavy Industrial Construction, Pipe Welding, Mining Maintenance |
