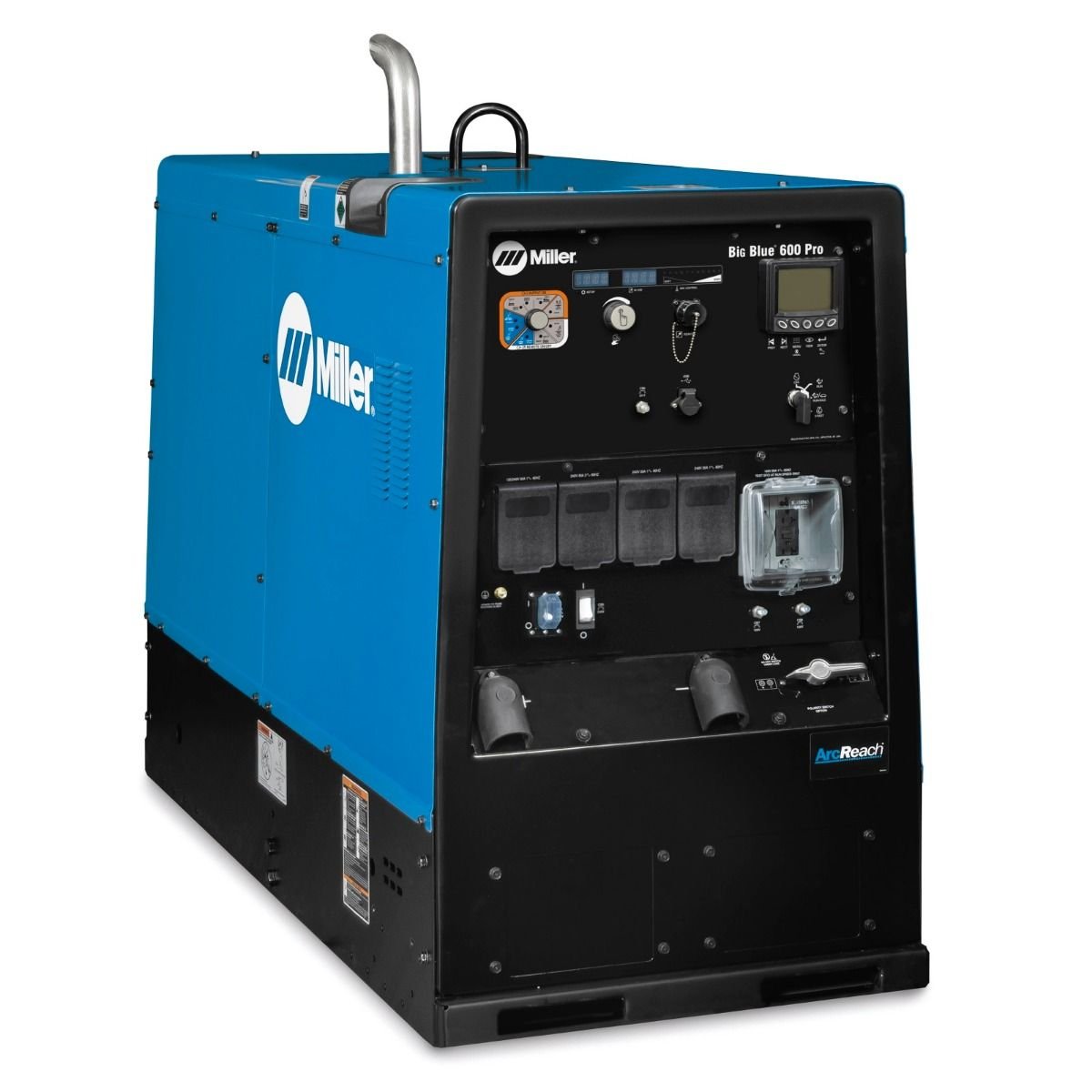

Miller Big Blue 600 Pro Kubota Deluxe Welder/Generator w/ ArcReach
$27,036.00
In Stock
Miller Big Blue 600 Pro Kubota Deluxe with ArcReach is a premier high-output welder designed for heavy-duty industrial and pipeline use. Features advanced remote control capabilities.
- ArcReach technology improves efficiency by allowing parameter changes at the feeder
- High-amperage 600A output handles heavy carbon arc gouging and large wires
- Brand New deluxe unit includes a Kubota diesel engine and 3-Year Warranty
In Stock
2-Day Shipping
All orders are processed and dispatched within 2 days
Description
Miller Big Blue 600 Pro Kubota Deluxe W/Arcreach 907737001
- Brand: Miller
- Model: Big Blue 600 Pro Deluxe with ArcReach
- MPN: 907737001
- Engine: Kubota V3600, 4-Cylinder Diesel, Tier 4 Final
- Engine Power: 74.3 HP @ 1,800 RPM
- Fuel Type: Diesel
- Fuel Tank Capacity: 40 gallons (151.4 liters)
- Welding Output: Up to 600 Amps DC
- Duty Cycle: 100% at 600 Amps
- Welding Processes: Stick (SMAW), DC TIG (GTAW), MIG (GMAW), Flux-Cored (FCAW), Air Carbon Arc Gouging (up to 3/8″)
- ArcReach Technology: Yes – remote control at the weld joint
- Auto-Speed Technology: Yes – adjusts RPM to welding/power demand
- Deluxe Features: Digital meters, enhanced panel, GFCI outlets
- Generator Output (3-Phase): 25,000 watts continuous
- Generator Output (1-Phase): 15,000 watts continuous
- Noise Level: Approx. 76 dB @ 23 ft (under load)
- Dimensions: 68 in L × 28.5 in W × 50 in H
- Weight: Approx. 1,725 lbs (782 kg)
- GTIN: 715959690660
- Google Product Category: 2920 (Welding Machines)
- Warranty: 3-Year Miller True Blue Warranty
Miller Big Blue 600 Pro Kubota Deluxe Welder/Generator w/ ArcReach Technical Specifications
| Brand | Miller |
|---|---|
| Full Model Name/SKU | Big Blue 600 Pro Kubota Deluxe (907739) |
| Country of Origin | USA |
| Welding Process | Stick (SMAW), TIG (GTAW), MIG (GMAW), Flux-Cored (FCAW), Gouging |
| Inverter/Transformer Technology | Three-Phase Rotating Field |
| Input Voltage | N/A (Engine Driven) |
| Output Current Range | 20 – 600 A |
| Duty Cycle | 100% @ 500 A, 60% @ 600 A |
| Open Circuit Voltage (OCV) | 92 VDC |
| Rated Input Capacity | 20,000 Watts (Peak) / 12,000 Watts (Continuous) |
| Power Factor & Efficiency | Low OCV Design for Reduced Fuel Consumption |
| Wire Feed Speed Range | N/A |
| Protection Class | IP23 |
| Insulation Class | Class H |
| Cooling System | Liquid-Cooled (Kubota V2403) |
| Dimensions | 813 x 724 x 1422 mm |
| Net Weight | 751 kg |
| Smart Features | ArcReach Technology, Deluxe Digital Gauges, Polarity Reversing Switch |
| Standard Compliance | CSA, EPA Tier 4 Final |
| Primary Application | Cross-Country Pipeline, Industrial Construction, Mechanical Contractors |
