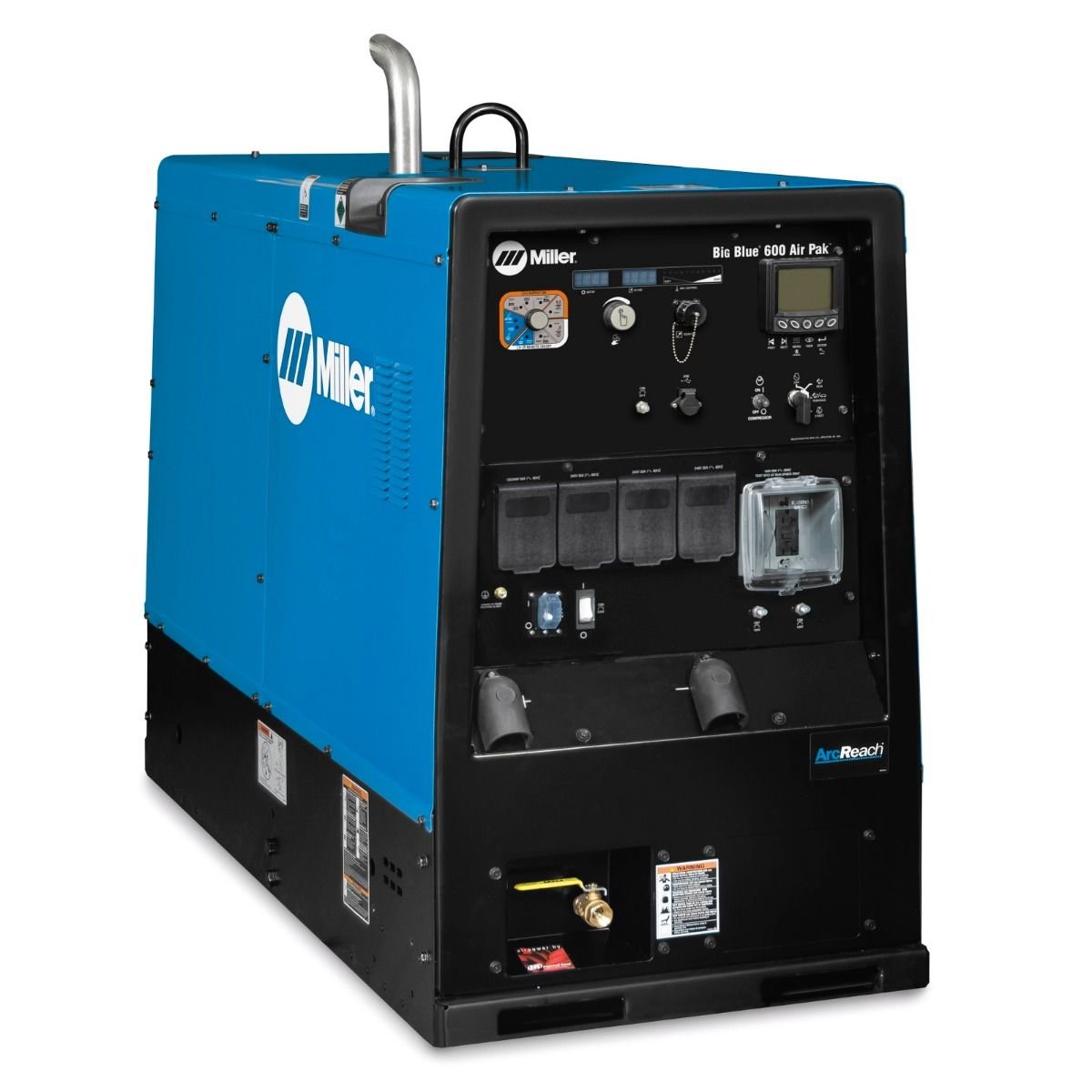

Miller Big Blue 600 Air Pak Welder/Generator w/ ArcReach & Air Compressor
$35,970.00
In Stock
In Stock
Wholesale Price
Request for Quotations
Description
Miller Big Blue 600 Air Pak Welder/Generator W/Arcreach 907750
- Brand: Miller
- Model: Big Blue 600 Air Pak with ArcReach
- MPN: 907750
- Engine: Deutz TD2.9L4, Turbocharged 4-Cylinder Diesel, Tier 4 Final
- Engine Power: 49.6 HP @ 1,800 RPM
- Fuel Type: Diesel
- Fuel Tank Capacity: 25 gallons (94.6 liters)
- Welding Output: 20 – 600 Amps (DC)
- Duty Cycle: 100% at 600 Amps
- Welding Processes: Stick (SMAW), TIG (GTAW), MIG (GMAW), Flux-Cored (FCAW), Air Carbon Arc Gouging (up to 3/8″)
- ArcReach Technology: Yes – remote control of weld settings
- Compressor: Ingersoll Rand Rotary Screw Air Compressor
- Air Output: 60 CFM at 100 PSI
- Generator Output (3-Phase): 27,000 watts continuous
- Generator Output (1-Phase): 11,000 watts continuous
- Receptacles: GFCI-protected 120/240V outlets
- Auto-Speed Technology: Yes – reduces fuel usage and noise
- Noise Level: Approx. 75.5 dB @ 23 ft under load
- Dimensions: 68 in L × 27.5 in W × 43 in H
- Weight: Approx. 1,700 lbs (771 kg)
- GTIN: 715959653409
- Google Product Category: 2920 (Welding Machines)
- Warranty: 3-Year Miller True Blue Warranty
Miller Big Blue 600 Air Pak Welder/Generator w/ ArcReach & Air Compressor Technical Specifications
| Brand | Miller |
|---|---|
| Full Model Name/SKU | Big Blue 600 Air Pak w/ ArcReach (907750) |
| Country of Origin | USA |
| Welding Process | Stick (SMAW), TIG (GTAW), MIG (GMAW), Flux-Cored (FCAW), SAW, Gouging |
| Inverter/Transformer Technology | Three-Phase Rotating Field |
| Input Voltage | N/A (Engine Driven) |
| Output Current Range | 20 – 600 A |
| Duty Cycle | 100% @ 500 A, 60% @ 600 A |
| Open Circuit Voltage (OCV) | 92 VDC |
| Rated Input Capacity | 27,000 Watts (Peak) / 20,000 Watts (Continuous) |
| Power Factor & Efficiency | Vane Compressor System Efficiency |
| Wire Feed Speed Range | N/A |
| Protection Class | IP23 |
| Insulation Class | Class H |
| Cooling System | Liquid-Cooled (Deutz TD2.9 L4) |
| Dimensions | 813 x 724 x 1753 mm |
| Net Weight | 905 kg |
| Smart Features | Integrated 60 CFM Air Compressor, ArcReach Technology, Electronic Engine Display |
| Standard Compliance | CSA, EPA Tier 4 Final |
| Primary Application | Bridge Construction, Shipyards, Heavy Structural Fabrication |
