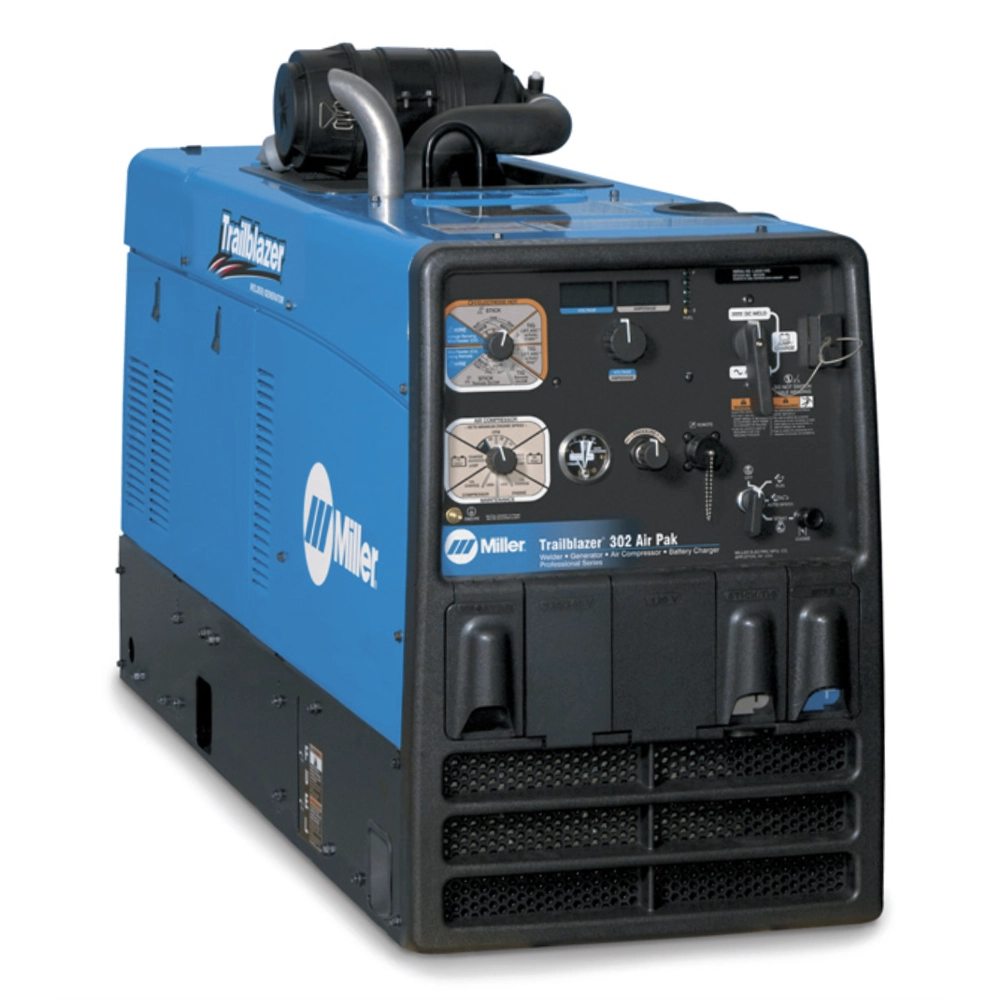

Miller Trailblazer 302 Kohler Air Pak Welder/Generator
$12,174.00
In Stock
Miller Trailblazer 302 Kohler Air Pak is an all-in-one industrial solution integrating a welder, generator, and air compressor. Engineered to maximize truck space and field productivity.
- Integrated rotary screw air compressor delivers 26 CFM for pneumatic tools
- Versatile 300A welding output supports stick, TIG, and MIG processes in the field
- Brand New multi-function unit includes 13000W generator and 3-Year Warranty
In Stock
2-Day Shipping
All orders are processed and dispatched within 2 days
Description
Miller Trailblazer 302 Kohler Air Pak Welder/Generator 907549001 Specs
- Brand: Miller
- Model: Trailblazer 302 Kohler Air Pak
- MPN: 907549001
- Processes: Stick (SMAW), MIG (GMAW), Flux-Cored (FCAW), DC TIG (GTAW)
- Engine: Kohler Gasoline Engine, 23 HP, Twin-Cylinder, Air-Cooled
- Rated Welding Output: 300A @ 32V, 100% Duty Cycle
- Welding Output Range: 20 – 300 Amps
- Auxiliary Power Output: 13,000 Watts Peak, 10,500 Watts Continuous
- Compressor Type: Rotary Screw Air Compressor
- Air Compressor Output: 26 CFM at 100 PSI
- Air Pressure Range: 80–160 PSI
- Fuel Capacity: 12 gallons (45.4 liters)
- Run Time: Up to 18 hours at idle
- Start Type: Electric Start
- Cooling System: Air-Cooled
- Dimensions: 59.75 in L × 20 in W × 32.75 in H
- Weight: 771 lbs (350 kg)
- GTIN: 715959334056
- Google Product Category: 2920 (Welding Machines)
- Warranty: 3-Year Miller True Blue Warranty
Miller Trailblazer 302 Kohler Air Pak Welder/Generator Technical Specifications
| Brand | Miller |
|---|---|
| Full Model Name/SKU | Trailblazer 302 Air Pak Kohler (907549) |
| Country of Origin | USA |
| Welding Process | Stick (SMAW), TIG (GTAW), MIG (GMAW), Flux-Cored (FCAW), Air Carbon Arc Gouging |
| Inverter/Transformer Technology | Four-Pole, Three-Phase Rotating Field |
| Input Voltage | N/A (Engine Driven) |
| Output Current Range | 10 – 300 A |
| Duty Cycle | 100% @ 280 A |
| Open Circuit Voltage (OCV) | 80 VDC |
| Rated Input Capacity | 13,000 Watts (Peak) / 11,000 Watts (Continuous) |
| Power Factor & Efficiency | Independent Weld and Power Generators |
| Wire Feed Speed Range | N/A |
| Protection Class | IP23 |
| Insulation Class | Class H |
| Cooling System | Air-Cooled (Kohler CH740) |
| Dimensions | 864 x 508 x 1514 mm |
| Net Weight | 350 kg |
| Smart Features | Integrated Rotary Screw Air Compressor (26 CFM), Battery Charger/Jump Starter |
| Standard Compliance | CSA, EPA Tier 4 |
| Primary Application | Mobile Service Trucks, Fleet Maintenance, Heavy Equipment Repair |
