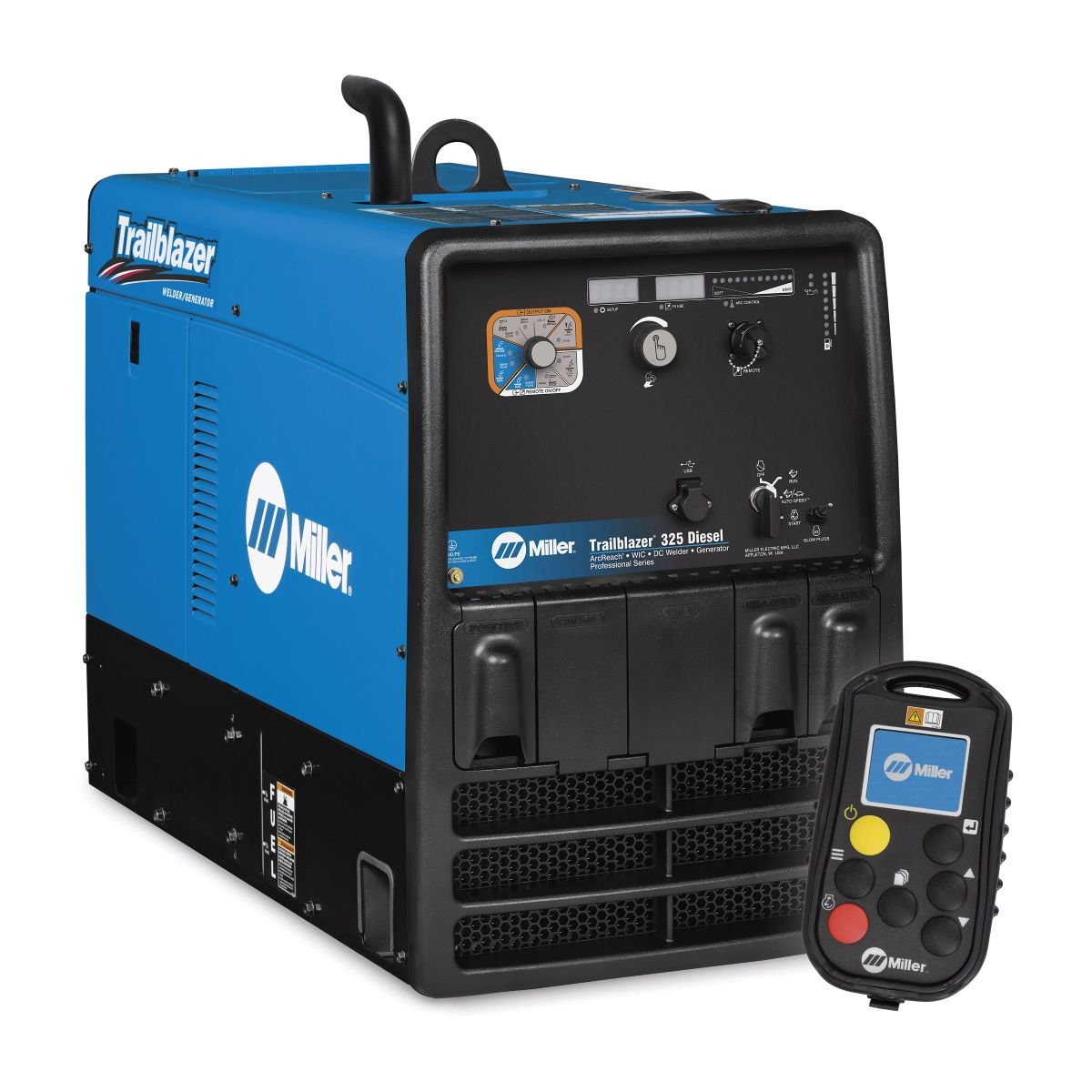

Miller Trailblazer 325 Diesel Welder/Generator (WIC)
$12,498.00
In Stock
In Stock
Wholesale Price
Request for Quotations
Description
Miller Trailblazer 325 Diesel Engine Welder/Generator W/Wic 907799003 Specs
- Brand: Miller
- Model: Trailblazer 325 Diesel W/ WIC
- MPN: 907799003
- Processes: Stick (SMAW), MIG (GMAW), TIG (GTAW), Flux-Cored (FCAW)
- Engine: Kubota D722, Diesel, 3-Cylinder, Tier 4 Final
- Welding Output: 325A @ 28V, 100% Duty Cycle
- Output Range: 20 – 325 Amps
- Auxiliary Power: 12,000W Peak / 10,500W Continuous, Clean Power (<5% THD)
- Fuel Tank Capacity: 12 gallons (45.4 liters)
- Run Time: Up to 24 hours at 25% load
- Wireless Interface Control (WIC): Included
- Noise Level: 71 dB at 23 ft (quieter operation)
- Technologies: ArcReach, Auto-Speed, Excel Power
- Start Type: Electric Start
- Cooling System: Liquid-Cooled
- Dimensions: 42.6 in L × 20 in W × 32.4 in H
- Weight: 600 lbs (272.2 kg)
- Google Product Category: 2920 (Welding Machines)
- Warranty: 3-Year Manufacturer Warranty
Miller Trailblazer 325 Diesel Welder/Generator (WIC) Technical Specifications
| Brand | Miller |
|---|---|
| Full Model Name/SKU | Trailblazer 325 Diesel w/ Wireless Interface Control (907799003) |
| Country of Origin | USA |
| Welding Process | Stick (SMAW), TIG (GTAW), MIG (GMAW), Flux-Cored (FCAW) |
| Inverter/Transformer Technology | ITW Inverter Technology |
| Input Voltage | N/A (Engine Driven) |
| Output Current Range | 10 – 325 A |
| Duty Cycle | 100% @ 325 A |
| Open Circuit Voltage (OCV) | 75 VDC |
| Rated Input Capacity | 12,000 Watts (Peak) / 10,500 Watts (Continuous) |
| Power Factor & Efficiency | Auto-Speed Variable RPM Efficiency |
| Wire Feed Speed Range | N/A |
| Protection Class | IP23 |
| Insulation Class | Class F |
| Cooling System | Liquid-Cooled (Kubota D902) |
| Dimensions | 711 x 508 x 1151 mm |
| Net Weight | 281 kg |
| Smart Features | WIC (Wireless Interface Control), ArcReach Technology, Auto-Speed |
| Standard Compliance | CSA, EPA Tier 4 Final |
| Primary Application | Mechanical Contractors, Structural Steel, Remote Site Fabrication |
