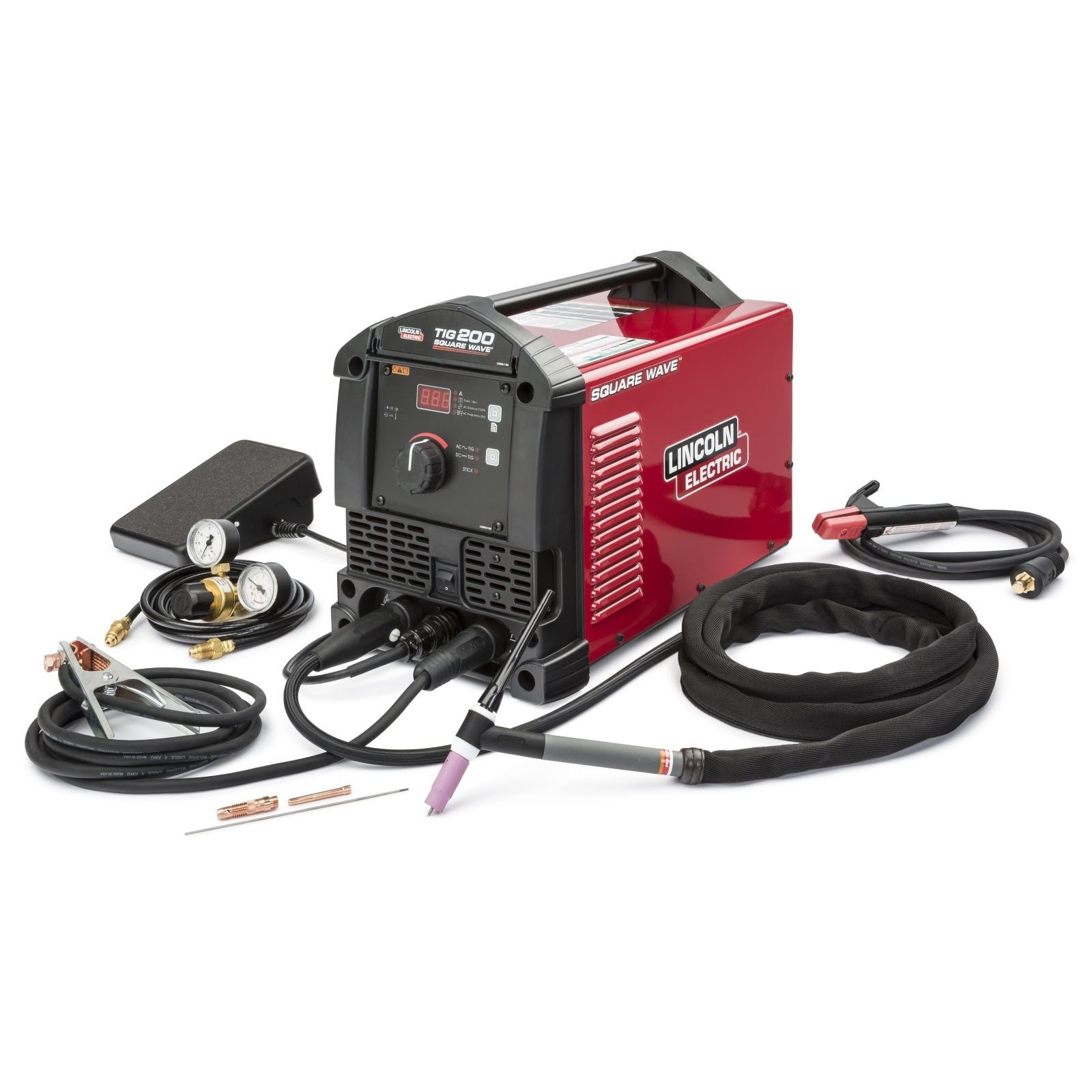

Lincoln K5126-1 Square Wave TIG 200 AC/DC TIG & Stick Welder
$1,434.00
In Stock
In Stock
Wholesale Price
Request for Quotations
Description
Lincoln Square Wave Tig 200 Welder K5126-1 Specs
- Brand: Lincoln Electric
- Model: Square Wave TIG 200
- MPN: K5126-1
- Processes: TIG (AC/DC), Stick
- Input Voltage: 120V / 230V
- Output Range: 10–200A (TIG), 10–170A (Stick)
- Duty Cycle: 25% @ 200A (TIG 230V), 25% @ 170A (Stick 230V)
- Weldable Materials: Aluminum, Stainless Steel, Mild Steel
- Weight: 46 lbs (20.9 kg)
- Portability: Yes – lightweight and compact
- Controls: Digital display, AC Balance, AC Frequency, Pulse
- Dimensions: 14 in L × 10.75 in W × 19.25 in H
- Included: TIG torch, ground clamp, electrode holder, gas regulator
- Google Product Category: 2920 (Welding Machines)
- Warranty: 3-Year Limited Warranty
Lincoln Square Wave TIG 200 AC/DC TIG & Stick Welder Technical Specifications
| Brand | Lincoln Electric |
|---|---|
| Full Model Name/SKU | Square Wave TIG 200 (K5126-1) |
| Country of Origin | USA |
| Welding Process | AC/DC TIG (GTAW), Stick (SMAW) |
| Inverter/Transformer Technology | AC/DC IGBT Inverter |
| Input Voltage | 120 / 230 V (Dual Voltage) |
| Output Current Range | 10 – 200 A |
| Duty Cycle | 25% @ 200 A (230V), 20% @ 125 A (120V) |
| Open Circuit Voltage (OCV) | 56 VDC |
| Rated Input Capacity | 6.4 kVA |
| Power Factor & Efficiency | Advanced Squarewave Inverter Stability |
| Wire Feed Speed Range | N/A |
| Protection Class | IP21S |
| Insulation Class | Class H |
| Cooling System | Forced Air |
| Dimensions | 356 x 274 x 488 mm |
| Net Weight | 21 kg |
| Smart Features | AC Frequency Control, Pulsed TIG, High-Frequency Start, Dual Voltage Capability |
| Standard Compliance | CSA, IEC 60974-1 |
| Primary Application | General Maintenance Repair, Light Aluminum Projects, Artist/Sculptors, DIY Hobbyist |
