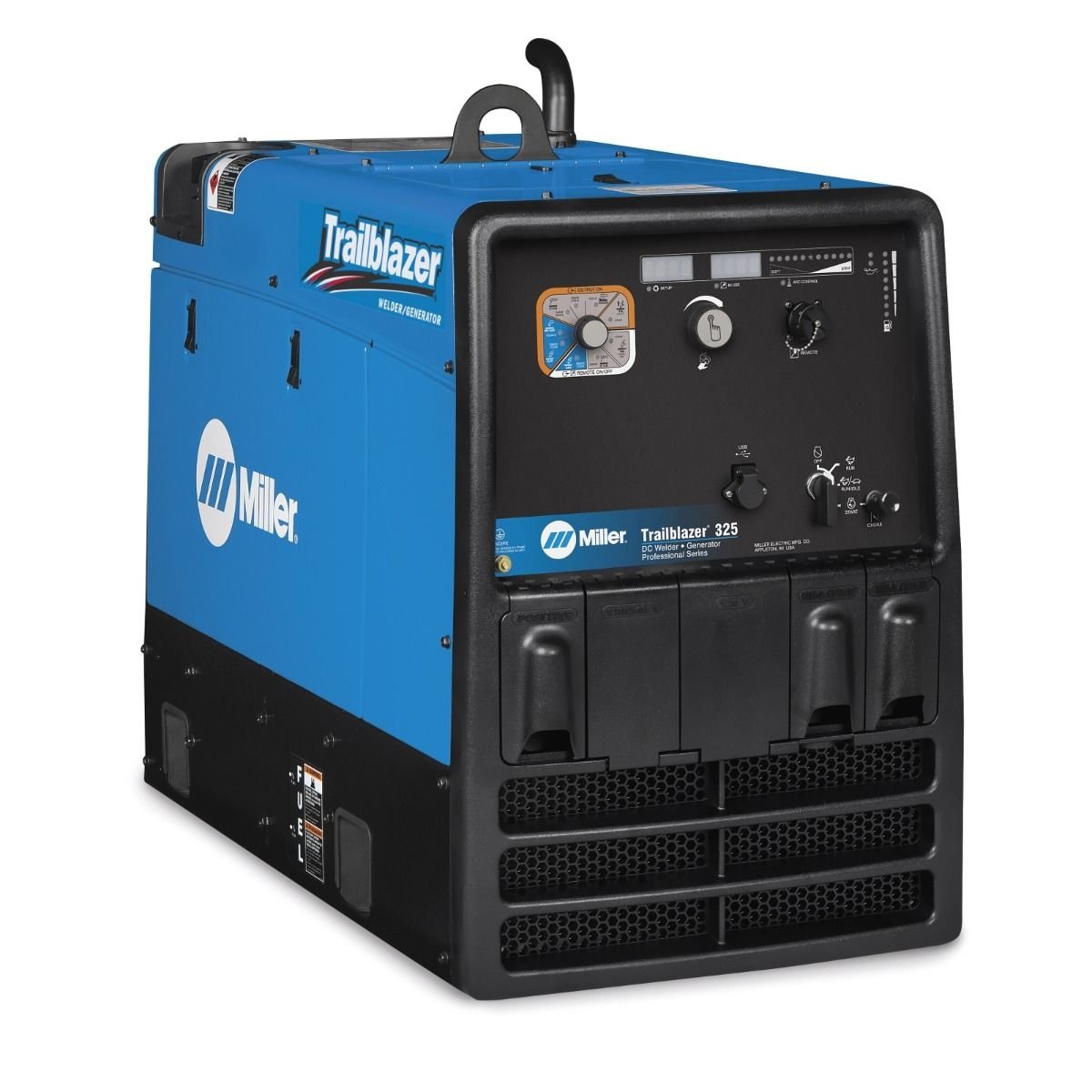

Miller Trailblazer 325 ArcReach Engine Driven Welder/Generator w/ GFCI
$5,538.00
In Stock
Miller Trailblazer 325 ArcReach provides remote parameter control at the weld joint to improve productivity and safety on construction sites. Engineered with GFCI protection for safety.
- ArcReach technology allows for remote voltage control directly at the wire feeder
- Powerful 325A output delivers professional results for critical industrial joints
- Brand New engine-driven unit includes GFCI receptacles and 3-Year Warranty
In Stock
2-Day Shipping
All orders are processed and dispatched within 2 days
Description
Miller Trailblazer 325 Arcreach Engine Driven Welder/Generator W/Gfci 907797001
- Brand: Miller
- Model: Trailblazer 325 ArcReach with GFCI
- MPN: 907797001
- Engine: Kohler CH730, V-Twin Gasoline Engine
- Engine Power: 25 HP @ 3,600 RPM
- Fuel Type: Gasoline
- Fuel Tank Capacity: 12 gallons (45.4 liters)
- Welding Output: Up to 325 Amps (DC)
- Duty Cycle: 100% at 300 Amps
- Welding Processes: Stick (SMAW), TIG (GTAW), MIG (GMAW), Flux-Cored (FCAW), Air Carbon Arc Gouging (up to 3/16″)
- ArcReach: Yes – remote parameter control at the arc
- Auto-Speed Technology: Yes – fuel and noise optimized
- Generator Output (Peak): 10,500 watts
- Generator Output (Continuous): 9,500 watts (240V/120V)
- Receptacles: GFCI-protected 120V/240V outlets
- Noise Level: Approx. 73.5 dB @ 23 ft (under load)
- Dimensions: 42.6 in L × 20 in W × 32.4 in H
- Weight: Approx. 498 lbs (226 kg)
- GTIN: 715959676712
- Google Product Category: 2920 (Welding Machines)
- Warranty: 3-Year Miller True Blue Warranty
Miller Trailblazer 325 ArcReach Engine Driven Welder/Generator w/ GFCI Technical Specifications
| Brand | Miller |
|---|---|
| Full Model Name/SKU | Trailblazer 325 Gas w/ ArcReach & GFCI (907797001) |
| Country of Origin | USA |
| Welding Process | Stick (SMAW), TIG (GTAW), MIG (GMAW), Flux-Cored (FCAW) |
| Inverter/Transformer Technology | ITW Inverter Technology |
| Input Voltage | N/A (Engine Driven) |
| Output Current Range | 10 – 325 A |
| Duty Cycle | 100% @ 325 A |
| Open Circuit Voltage (OCV) | 75 VDC |
| Rated Input Capacity | 12,000 Watts (Peak) / 10,500 Watts (Continuous) |
| Power Factor & Efficiency | Auto-Speed Fuel Optimization |
| Wire Feed Speed Range | N/A |
| Protection Class | IP23 |
| Insulation Class | Class F |
| Cooling System | Air-Cooled (Kohler CH740) |
| Dimensions | 711 x 508 x 1029 mm |
| Net Weight | 209 kg |
| Smart Features | ArcReach Technology, Full GFCI Protection, Excel Power |
| Standard Compliance | CSA, EPA Tier 4 |
| Primary Application | Construction, Field Service, Industrial Maintenance |
