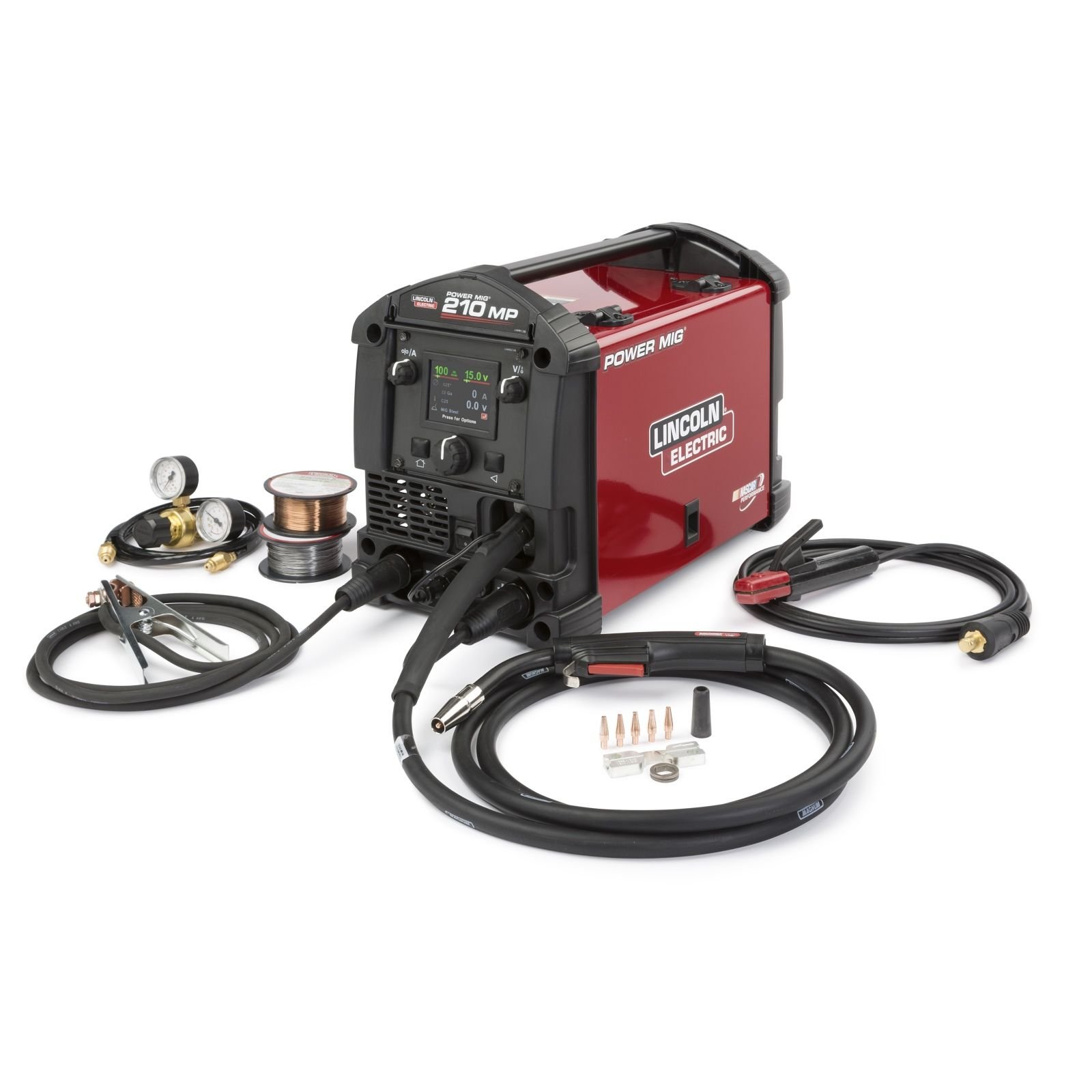

Lincoln K3963-1 Power MIG 210 MP Multi-Process Welder (MIG/Stick/TIG)
$1,140.00
In Stock
In Stock
Wholesale Price
Request for Quotations
Description
Lincoln Power Mig 210 Mp Multi Process Welder K3963-1 Specs
- Brand: Lincoln Electric
- Model: Power MIG 210 MP
- MPN: K3963-1
- Processes: MIG, Flux-Cored, Stick, DC TIG
- Input Voltage: 120V / 230V
- Output Range: MIG: 20–200A, TIG: 20–200A, Stick: 20–170A
- Duty Cycle: 25% @ 200A (230V)
- Technology: Digital interface with push-and-turn controls
- Display: Large color LCD screen for easy navigation
- Material Compatibility: Mild steel, stainless steel, aluminum (with spool gun)
- Spool Gun Ready: Yes (optional Magnum PRO 100SG)
- Included Accessories: Magnum PRO 100L MIG Gun, work cable, electrode holder, regulator, spool of wire, sample consumables
- Weight: 40 lbs (18.1 kg)
- Dimensions: 14 in H × 10.75 in W × 19 in D
- Portability: Lightweight and compact for transport
- Google Product Category: 2920 (Welding Machines)
- Warranty: 3-Year Lincoln Electric Warranty
Lincoln Power MIG 210 MP Multi-Process Welder Technical Specifications
| Brand | Lincoln Electric |
|---|---|
| Full Model Name/SKU | Power MIG 210 MP (K3963-1) |
| Country of Origin | USA |
| Welding Process | MIG (GMAW), Flux-Cored (FCAW), Stick (SMAW), DC TIG (GTAW) |
| Inverter/Transformer Technology | IGBT Inverter |
| Input Voltage | 120 / 230 V (Dual Voltage) |
| Output Current Range | 20 – 210 A |
| Duty Cycle | 25% @ 200 A, 40% @ 100 A |
| Open Circuit Voltage (OCV) | 56 VDC |
| Rated Input Capacity | 6.4 kVA |
| Power Factor & Efficiency | Active Power Factor Correction (PFC) Efficiency |
| Wire Feed Speed Range | 1.3 – 12.7 m/min (50 – 500 ipm) |
| Protection Class | IP21S |
| Insulation Class | Class H |
| Cooling System | Forced Air |
| Dimensions | 356 x 273 x 483 mm |
| Net Weight | 18.1 kg |
| Smart Features | Color LCD Interface, Push-and-Turn Digital Controls, Multi-Process Capability |
| Standard Compliance | CSA, IEC 60974-1 |
| Primary Application | Light Fabrication, Automotive Repair, Maintenance, Vocational Training |
