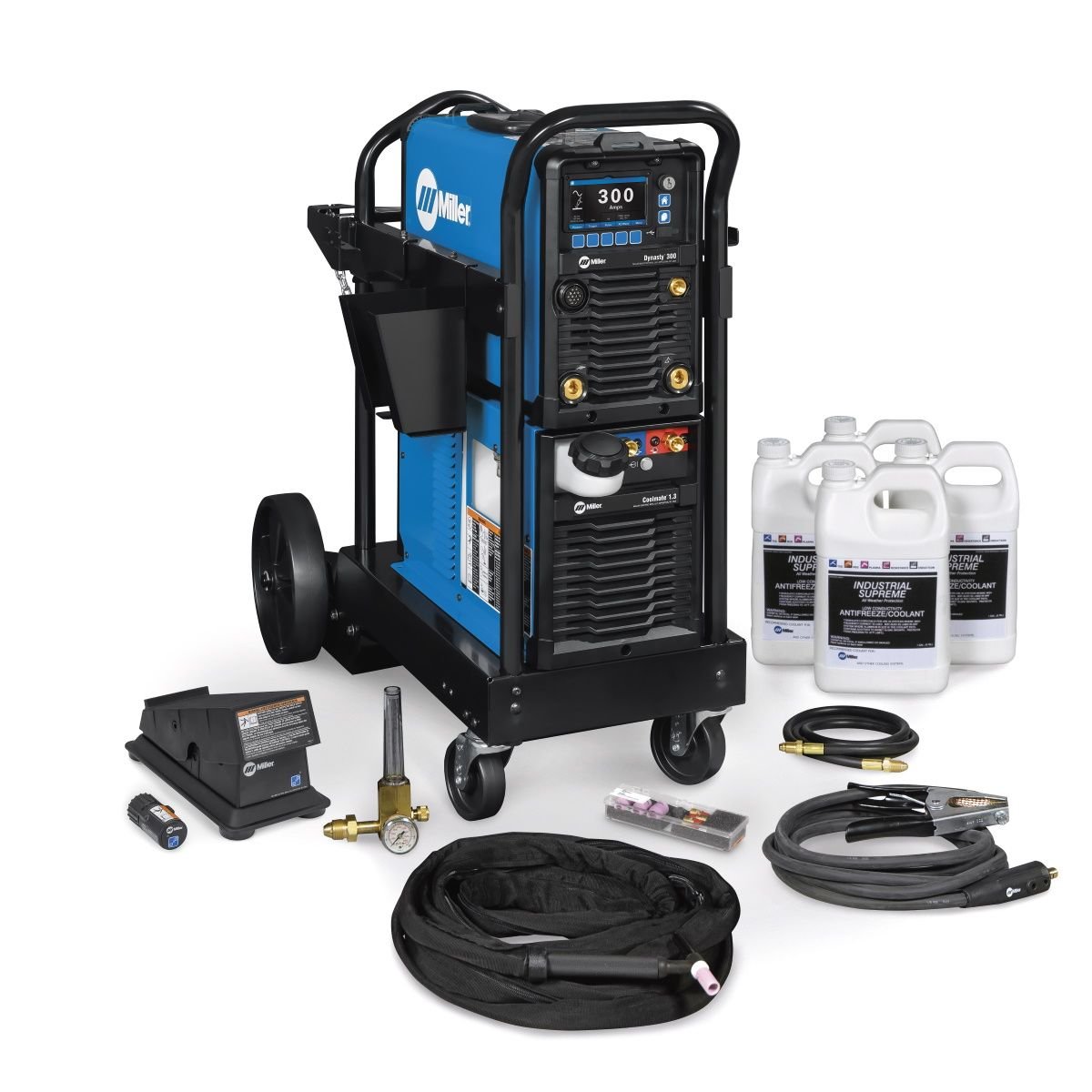

Miller 951937 Dynasty 300 AC/DC TIG Welder w/ Wireless Foot Control
$8,280.00
In Stock
Miller 951937 Dynasty 300 is a high-power AC/DC TIG welder with a wireless foot control. This 300 Amp unit is built for heavy industrial fabrication.
- Wireless foot control provides total mobility in large shops, eliminating dangerous trip hazards and cable wear
- Advanced AC controls including independent amplitude and frequency allows for ultimate control over the weld bead profile
- Brand New unit including wireless remote and high-output TIG components with Miller’s industrial warranty
In Stock
2-Day Shipping
All orders are processed and dispatched within 2 days
Description
Miller Dynasty 300 Complete Package W/Wireless Foot Control 951937 Specs
- Brand: Miller
- Model: Dynasty 300 Complete Package
- MPN: 951937
- Processes: AC/DC TIG (GTAW), Stick (SMAW)
- Input Voltage: 208–575V, 1/3 Phase (Auto-Line)
- Output Range: 1 – 300 Amps
- Rated Output: 250A @ 60% Duty Cycle
- Technology: Inverter-based, Auto-Line, Pulse TIG, Adjustable AC Frequency & Balance
- Display: Color LCD screen with intuitive controls and digital settings
- TIG Features: Pulse TIG, Adjustable AC Balance, HF Start, Adjustable AC Frequency
- Stick Features: Adaptive Hot Start, Stick-Stuck detection
- Material Compatibility: Aluminum, Stainless Steel, Mild Steel, Titanium
- Cooling: Compatible with Coolmate 3.5 (not included)
- Included Accessories: TIG torch, wireless foot control, ground clamp, power cord, regulator, electrode holder, running gear (optional)
- Weight: 50 lbs (22.7 kg)
- Dimensions: 20.25 in H × 11.5 in W × 23.5 in D
- Portability: Compact and lightweight with ergonomic design and optional running gear
- Google Product Category: 2920 (Welding Machines)
- Warranty: 3-Year Miller True Blue Warranty
Miller Dynasty 300 AC/DC TIG Welder w/ Wireless Foot Control Technical Specifications
| Brand | Miller |
|---|---|
| Full Model Name/SKU | Dynasty 300 Wireless Package (951937) |
| Country of Origin | USA |
| Welding Process | AC/DC TIG (GTAW), Pulsed TIG (GTAW-P), Stick (SMAW) |
| Inverter/Transformer Technology | AC/DC IGBT Inverter |
| Input Voltage | 208 – 600 V (Auto-Line) |
| Output Current Range | 1 – 300 A |
| Duty Cycle | 60% @ 210 A, 100% @ 175 A |
| Open Circuit Voltage (OCV) | 60 VDC |
| Rated Input Capacity | 11.4 kVA / 10.9 kW |
| Power Factor & Efficiency | 0.95 Power Factor / High-Efficiency Inverter |
| Wire Feed Speed Range | N/A |
| Protection Class | IP23 |
| Insulation Class | Class H |
| Cooling System | Coolmate 3.5 (Water-Cooled Package) |
| Dimensions | 1092 x 559 x 889 mm (Total System) |
| Net Weight | 62 kg (Full System) |
| Smart Features | Wireless Foot Control, Pro-Set, Blue Lightning HF, Independent AC Amplitude |
| Standard Compliance | CSA, CE, IEC 60974-1 |
| Primary Application | Precision Industrial Fabrication, Aluminum Repair, Aerospace Maintenance |
