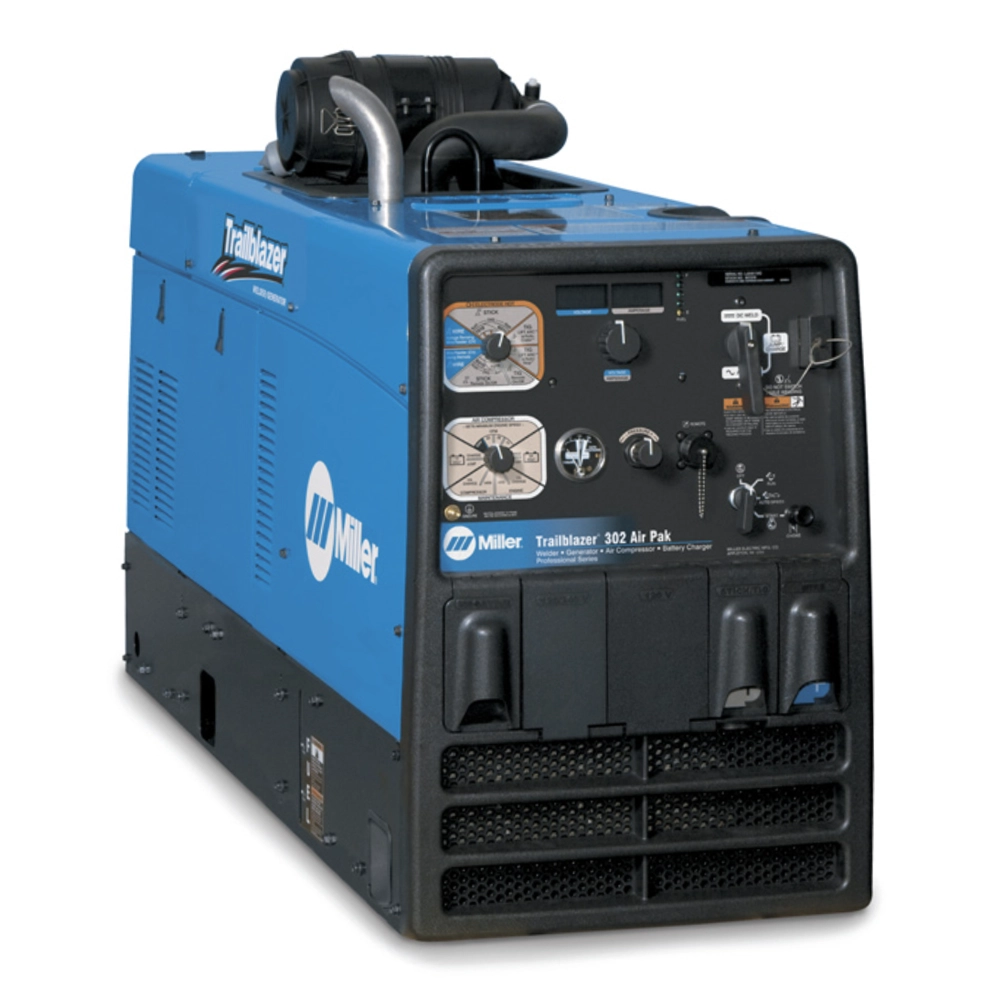

Miller Trailblazer 302 Kohler Air Pak Welder/Generator w/ GFCI & Electric Fuel Pump
$12,462.00
In Stock
Miller Trailblazer 302 Kohler Air Pak integrates a welder, generator, and air compressor with an electric fuel pump for superior field reliability. Engineered for maximum versatility.
- Integrated rotary screw compressor delivers 26 CFM for high-demand pneumatic tools
- Powerful 300A welding output supports stick, TIG, and MIG in professional shop environments
- Brand New unit includes GFCI protection, electric fuel pump, and 3-Year Warranty
In Stock
2-Day Shipping
All orders are processed and dispatched within 2 days
Description
Miller Trailblazer 302 Kohler Air Pak Welder/Generator With Gfci And Electric Fuel Pump 907549
- Brand: Miller
- Model: Trailblazer 302 Air Pak with GFCI and Electric Fuel Pump
- MPN: 907549
- Engine: Kohler CH730, V-Twin Gasoline Engine
- Engine Power: 23.5 HP @ 3,600 RPM
- Fuel Type: Gasoline
- Fuel Tank Capacity: 12 gallons (45.4 liters)
- Welding Output: 20 – 300 Amps (DC)
- Duty Cycle: 100% at 300 Amps
- Welding Processes: Stick (SMAW), TIG (GTAW), MIG (GMAW), Flux-Cored (FCAW), Air Carbon Arc Gouging (up to 3/16″)
- Compressor: Ingersoll Rand Rotary Screw Air Compressor
- Air Output: 26 CFM at 100 PSI
- Generator Output: 13,000W Peak / 11,000W Continuous
- Receptacles: GFCI-protected 120V/240V outlets
- Electric Fuel Pump: Yes
- Noise Level: Approx. 76 dB under load @ 23 ft
- Dimensions: 59.5 in L × 20 in W × 34.25 in H
- Weight: Approx. 771 lbs (350 kg)
- GTIN: 715959365296
- Google Product Category: 2920 (Welding Machines)
- Warranty: 3-Year Miller True Blue Warranty
Miller Trailblazer 302 Kohler Air Pak Welder/Generator w/ GFCI Technical Specifications
| Brand | Miller |
|---|---|
| Full Model Name/SKU | Trailblazer 302 Air Pak w/ GFCI (907549003) |
| Country of Origin | USA |
| Welding Process | Stick (SMAW), TIG (GTAW), MIG (GMAW), Flux-Cored (FCAW), Air Carbon Arc |
| Inverter/Transformer Technology | Four-Pole, Three-Phase Rotating Field |
| Input Voltage | N/A (Engine Driven) |
| Output Current Range | 10 – 300 A |
| Duty Cycle | 100% @ 280 A |
| Open Circuit Voltage (OCV) | 80 VDC |
| Rated Input Capacity | 13,000 Watts (Peak) / 11,000 Watts (Continuous) |
| Power Factor & Efficiency | Independent Generator Power Loop |
| Wire Feed Speed Range | N/A |
| Protection Class | IP23 |
| Insulation Class | Class H |
| Cooling System | Air-Cooled (Kohler CH740) |
| Dimensions | 864 x 508 x 1514 mm |
| Net Weight | 350 kg |
| Smart Features | Rotary Screw Air Compressor (26 CFM), Electric Fuel Pump, OSHA-Compliant GFCI |
| Standard Compliance | CSA, OSHA |
| Primary Application | Public Works Maintenance, Mining, High-Altitude Service Work |
