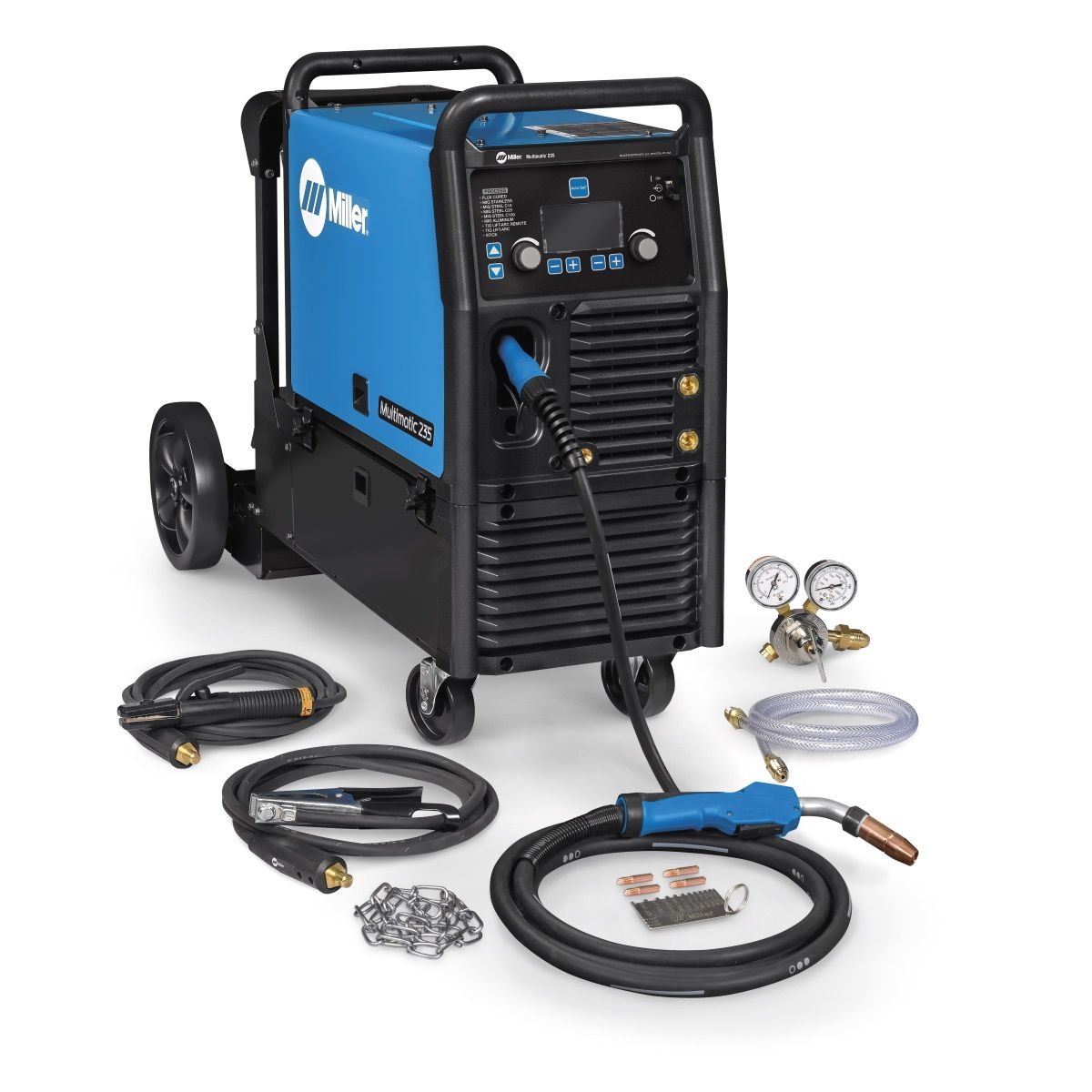

Miller Multimatic 235 Multi-Process Welder w/ Running Gear
$1,956.00
In Stock
In Stock
Wholesale Price
Request for Quotations
Description
Miller Multimatic 235 Multiprocess Welder W/Running Gear 951846 Specs
- Brand: Miller
- Model: Multimatic 235 with Running Gear
- MPN: 951846
- Processes: MIG (GMAW), Flux-Cored (FCAW), Stick (SMAW), DC TIG (GTAW)
- Input Voltage: 120V / 240V (MVP Plug)
- Output Range: 30 – 235 Amps
- Weld Thickness Capacity: Up to 1/2 inch mild steel
- Duty Cycle: 60% @ 170A (240V), 40% @ 115A (120V)
- Wire Feed Speed: 60 – 600 IPM
- Display: Color LCD with Auto-Set Elite
- Running Gear: Included (with cylinder rack)
- Spool Gun Ready: Yes (Spoolmate 200 compatible)
- TIG Capable: Yes (requires optional TIG kit)
- Dimensions: 29.5 in L × 11.25 in W × 23.75 in H
- Weight: Approx. 63 lbs (unit only)
- GTIN: 715959674848
- Google Product Category: 2920 (Welding Machines)
- Warranty: 3-Year Miller True Blue Warranty
Miller Multimatic 235 Multi-Process Welder w/ Running Gear Technical Specifications
| Brand | Miller |
|---|---|
| Full Model Name/SKU | Multimatic 235 w/ Running Gear (907757) |
| Country of Origin | USA |
| Welding Process | MIG (GMAW), Flux-Cored (FCAW), Stick (SMAW), DC TIG (GTAW) |
| Inverter/Transformer Technology | IGBT Inverter |
| Input Voltage | 240 V (Single-Phase Only) |
| Output Current Range | 20 – 235 A |
| Duty Cycle | 40% @ 170 A, 15% @ 235 A |
| Open Circuit Voltage (OCV) | 54 VDC |
| Rated Input Capacity | 6.3 kW |
| Power Factor & Efficiency | Optimized Single-Phase Performance |
| Wire Feed Speed Range | 1.5 – 20 m/min (60 – 800 ipm) |
| Protection Class | IP21S |
| Insulation Class | Class F |
| Cooling System | Fan-On-Demand |
| Dimensions | 737 x 483 x 889 mm (with Running Gear) |
| Net Weight | 63 kg (Total System) |
| Smart Features | Auto-Set Elite, MDX-250 MIG Gun, Integrated EZ-Latch Running Gear |
| Standard Compliance | CSA, IEC 60974-1 |
| Primary Application | Light Industrial Fabrication, Maintenance Repair, HVAC, DIY Industrial |
