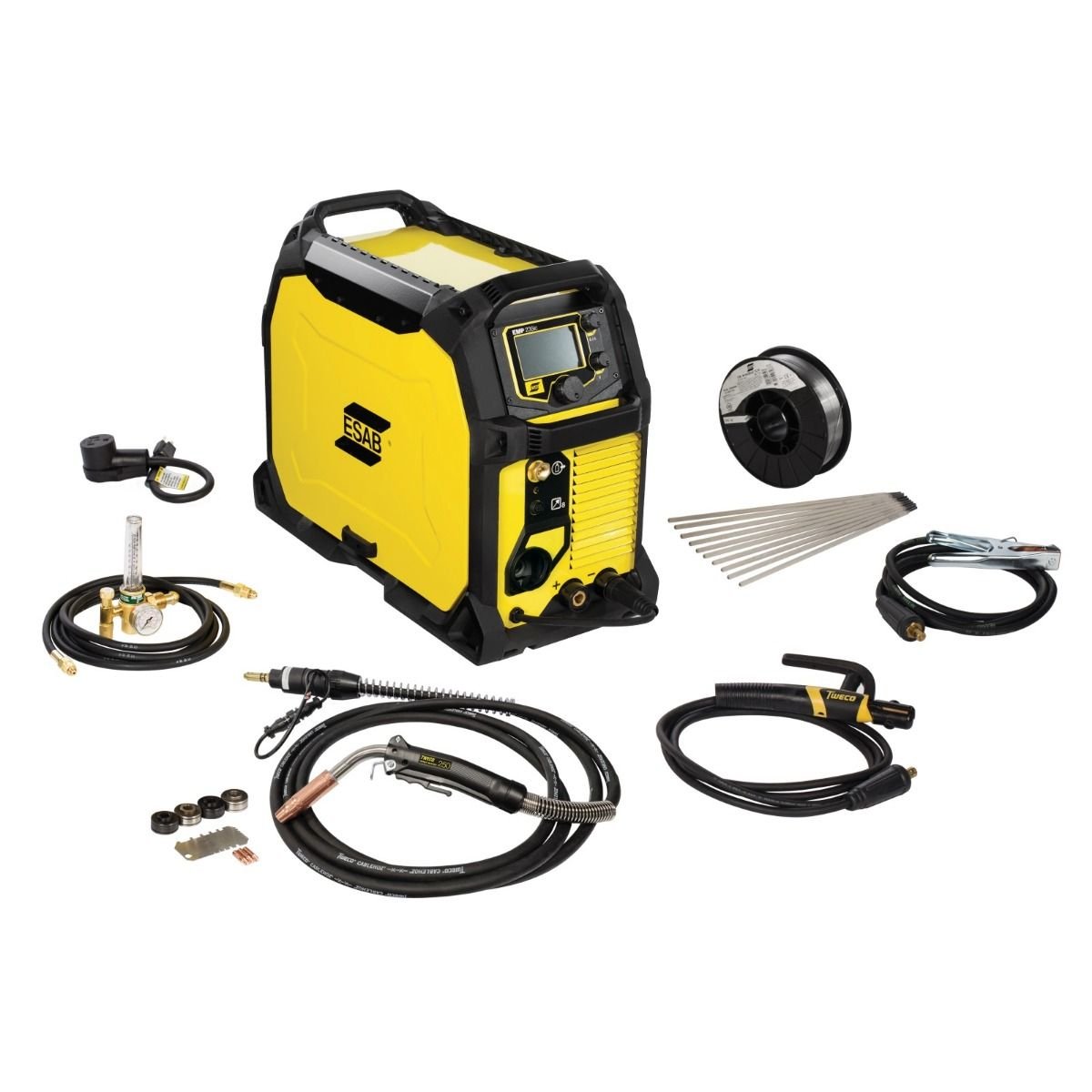

ESAB 0558012702 Rebel EMP 235ic 235A Multi-Process Welder (MIG/Stick/TIG)
$2,256.00
In Stock
In Stock
Wholesale Price
Request for Quotations
Description
Esab Rebel Emp 235Ic Mig/Stick/Tig Welder 0558012702 Specs
- Brand: ESAB
- Model: Rebel EMP 235ic
- MPN: 0558012702
- Processes: MIG (GMAW), Flux-Cored (FCAW), Stick (SMAW), DC TIG (GTAW)
- Input Voltage: 120V / 230V (Dual Voltage)
- Output Range: 30 – 250 Amps
- Rated Output: 250A @ 40% Duty Cycle (230V)
- Technology: Inverter-based, sMIG, TFT Display, Dual Gas Input
- Display: 4.3” Color TFT Screen with intuitive interface
- Wire Feed Speed: 50 – 600 IPM
- Material Compatibility: Mild Steel, Stainless Steel, Aluminum (w/ Spool Gun)
- Spool Gun Compatible: Yes
- Included Accessories: MIG gun, ground clamp, electrode holder, gas regulator, drive rolls, contact tips, TIG lead adapter
- Weight: 53 lbs (24 kg)
- Dimensions: 23.6 in L × 9 in W × 16 in H
- Portability: Lightweight, rugged carry handle
- Google Product Category: 2920 (Welding Machines)
- Warranty: 3-Year ESAB Warranty
ESAB Rebel EMP 235ic 235A Multi-Process Welder Technical Specifications
| Brand | ESAB |
|---|---|
| Full Model Name/SKU | Rebel EMP 235ic (0558012702) |
| Country of Origin | China |
| Welding Process | MIG (GMAW), Flux-Cored (FCAW), Stick (SMAW), DC TIG (GTAW) |
| Inverter/Transformer Technology | Digital Multi-Process Inverter |
| Input Voltage | 120 / 230 V (Single-Phase) |
| Output Current Range | 5 – 250 A |
| Duty Cycle | 25% @ 235 A (230V), 20% @ 130 A (120V) |
| Open Circuit Voltage (OCV) | 90 VDC |
| Rated Input Capacity | 8.5 kVA |
| Power Factor & Efficiency | sMIG (Smart MIG) Technology Efficiency |
| Wire Feed Speed Range | 2.0 – 17.8 m/min (80 – 700 ipm) |
| Protection Class | IP23S |
| Insulation Class | Class F |
| Cooling System | Forced Air Cooling |
| Dimensions | 686 x 292 x 495 mm |
| Net Weight | 24 kg |
| Smart Features | sMIG (Smart MIG), Multi-Process Capability, TFT Color Display, Four-Handle Roll Cage |
| Standard Compliance | CSA, CE, RoHS |
| Primary Application | Mechanical Contractors, HVAC, Maintenance Repair, Light Industrial Production |
