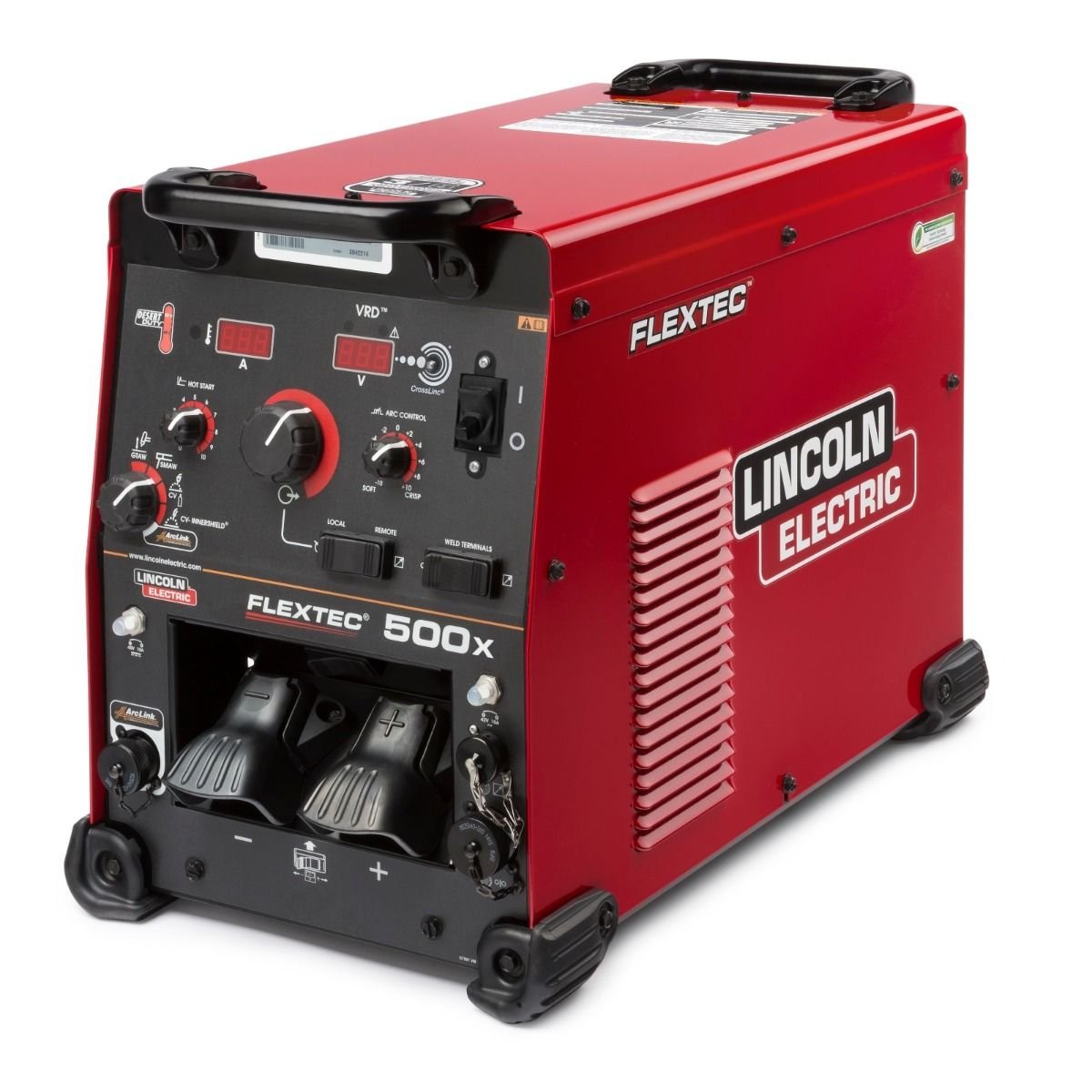

Lincoln K3607-1 Flextec 500X Pulsed MIG Multi-Process Welder
$3,630.00
In Stock
In Stock
Wholesale Price
Request for Quotations
Description
Lincoln Flextec 500X Pulsed Mig Multi Process Welder K3607-1 Specs
- Brand: Lincoln Electric
- Model: Flextec 500X
- MPN: K3607-1
- Processes: Stick, DC TIG, MIG, Pulsed MIG, Flux-Cored
- Input Power: 380/460/575V 3-Phase
- Rated Output: 500A @ 60% Duty Cycle
- Output Range: 5 – 500 Amps
- Technology: Inverter-based, CrossLinc, ArcLink, Ready.Set.Weld
- Display: Digital amp/volt meters
- Enclosure Rating: IP23 (outdoor rated)
- Cooling: Fan-As-Needed
- Weight: 118 lbs (53.5 kg)
- Dimensions: 17.7 x 13.6 x 25.3 in (450 x 345 x 643 mm)
- Compatible Accessories: LN-25X Feeder, CrossLinc Remote
- Application: Heavy Industrial, Fabrication, Shipbuilding, Construction
- Google Product Category: 2920 (Welding Machines)
- Condition: New
- Warranty: 3-Year Manufacturer’s Warranty
Lincoln Flextec 500X Pulsed MIG Multi-Process Welder Technical Specifications
| Brand | Lincoln Electric |
|---|---|
| Full Model Name/SKU | Flextec 500X (K3607-1) |
| Country of Origin | USA |
| Welding Process | Pulsed MIG, MIG, Stick, TIG, Flux-Cored, Arc Gouging |
| Inverter/Transformer Technology | Digital Multi-Process Inverter |
| Input Voltage | 380 / 460 / 575 V (Three-Phase) |
| Output Current Range | 5 – 600 A |
| Duty Cycle | 100% @ 450 A, 60% @ 500 A |
| Open Circuit Voltage (OCV) | 57 VDC |
| Rated Input Capacity | 22.2 kVA @ 450A |
| Power Factor & Efficiency | 0.95 Power Factor / 88% Efficiency |
| Wire Feed Speed Range | N/A (Compatible with Flex Feed/ArcLinc Feeders) |
| Protection Class | IP23 |
| Insulation Class | Class H |
| Cooling System | Fan-As-Needed (F.A.N.) |
| Dimensions | 477 x 356 x 673 mm |
| Net Weight | 57 kg |
| Smart Features | CrossLinc Technology, Pulsed MIG Support, Desert Duty Rated, VRD (Voltage Reduction Device) |
| Standard Compliance | CSA, CE, NOM, ANSI |
| Primary Application | Heavy Industrial Manufacturing, Structural Fabrication, Large Scale Infrastructure |
