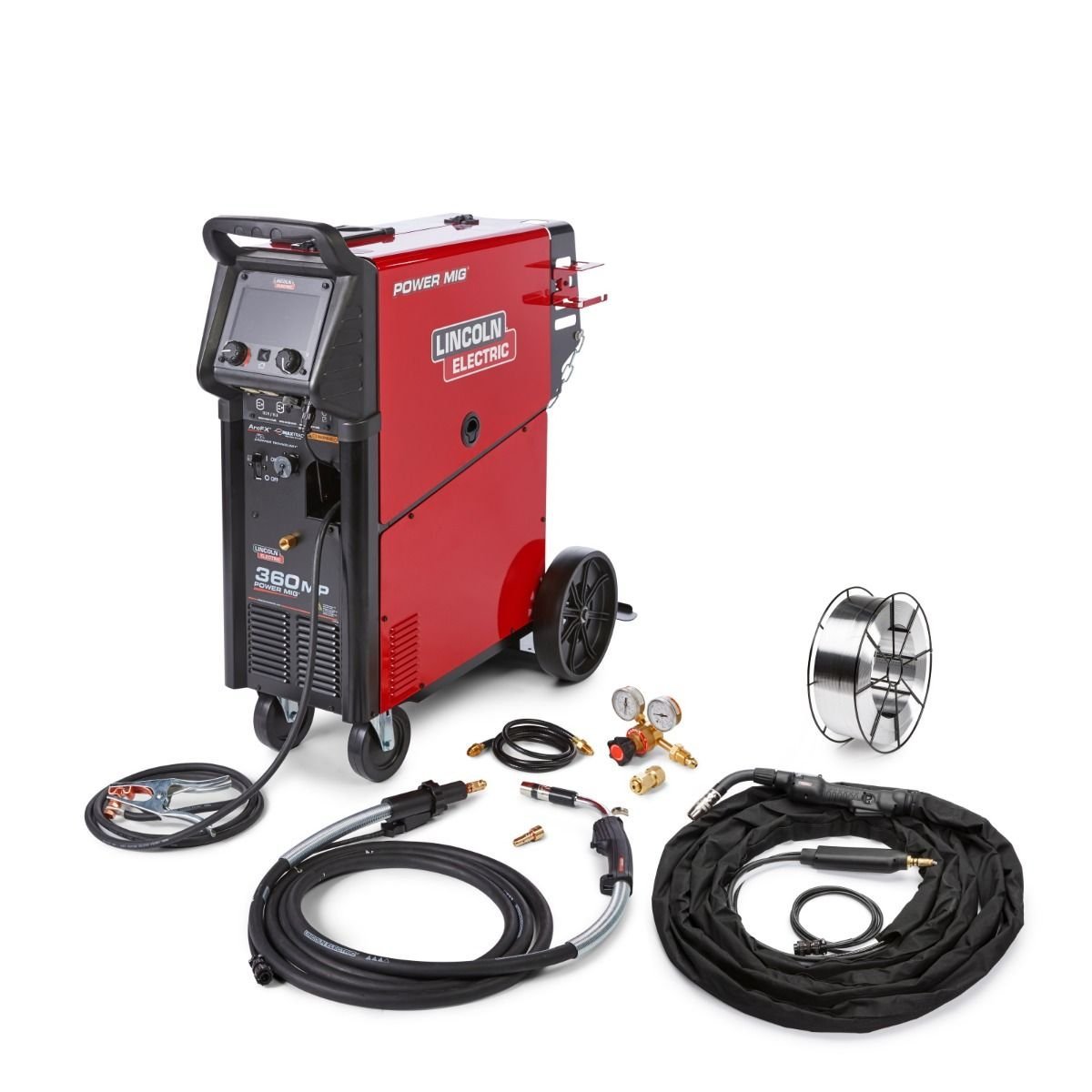

Lincoln K4662-1 Power MIG 360 Multi-Process Welder – Aluminum Trailer Mfg One-Pak
$6,870.00
In Stock
Lincoln K4662-1 Power MIG 360 is a heavy-duty Multi-Process welder designed for aluminum trailer manufacturing. This is a high-output production machine.
- Optimized for pulsed aluminum MIG welding, providing high deposition rates with superior bead appearance and low spatter
- Features advanced connectivity and monitoring tools for production lines and manufacturing environments
- Brand New One-Pak including push-pull gun and industrial cart with Lincoln’s warranty
In Stock
2-Day Shipping
All orders are processed and dispatched within 2 days
Description
Lincoln Power Mig 360 Multiprocess Welder Aluminum Trailer Mfg One-Pak K4662-1 Specs
- Brand: Lincoln Electric
- Model: Power MIG 360 MP Aluminum Trailer Mfg One-Pak
- MPN: K4662-1
- Processes: MIG (GMAW), Pulsed MIG (GMAW-P), Flux-Cored (FCAW), DC TIG (GTAW), Stick (SMAW)
- Input Voltage: 208/230/460V, 1 or 3 Phase
- Output Range: 5 – 360 Amps
- Rated Output: 300A @ 60% Duty Cycle
- Technology: Inverter, Advanced Pulse MIG, Digital Control, Memory Storage, True Multi-Process
- Material Compatibility: Aluminum, Mild Steel, Stainless Steel
- Spool Gun Included: Yes – Magnum PRO Aluminum spool gun
- Display: Large color LCD user interface with push-and-turn control knob
- Included Accessories: Magnum PRO Aluminum spool gun, MIG gun, work clamp, electrode holder, gas regulator, TIG-ready kit (torch not included), power cords
- Weight: Approx. 225 lbs (102 kg)
- Dimensions: 39 in H × 20 in W × 36 in D
- Portability: Wheeled industrial cart included
- Google Product Category: 2920 (Welding Machines)
- Warranty: 3-Year Lincoln Electric Industrial Warranty
Lincoln Power MIG 360 Multi-Process Welder - Aluminum Trailer Mfg One-Pak Technical Specifications
| Brand | Lincoln Electric |
|---|---|
| Full Model Name/SKU | Power MIG 360 MP Aluminum Trailer Mfg One-Pak (K4662-1) |
| Country of Origin | USA |
| Welding Process | Pulsed MIG, MIG, Flux-Cored, Stick, DC TIG |
| Inverter/Transformer Technology | Chopper Technology (CT) |
| Input Voltage | 208 / 230 / 460 / 575 V (Auto-Reconnect) |
| Output Current Range | 5 – 360 A |
| Duty Cycle | 40% @ 360 A, 100% @ 250 A |
| Open Circuit Voltage (OCV) | 60 VDC |
| Rated Input Capacity | 11.2 kW |
| Power Factor & Efficiency | Optimized for Long-Reach Aluminum Feeding |
| Wire Feed Speed Range | 1.3 – 17.8 m/min (50 – 700 ipm) |
| Protection Class | IP23 |
| Insulation Class | Class F |
| Cooling System | Fan-As-Needed (F.A.N.) |
| Dimensions | 947 x 457 x 1016 mm |
| Net Weight | 118 kg (Full Package) |
| Smart Features | Prince XL Push-Pull Gun, 7-inch Color Display, Ready.Set.Weld, ArcFX |
| Standard Compliance | CSA, IEC 60974-1 |
| Primary Application | Aluminum Trailer Manufacturing, Boat Building, Large Aluminum Structures |
