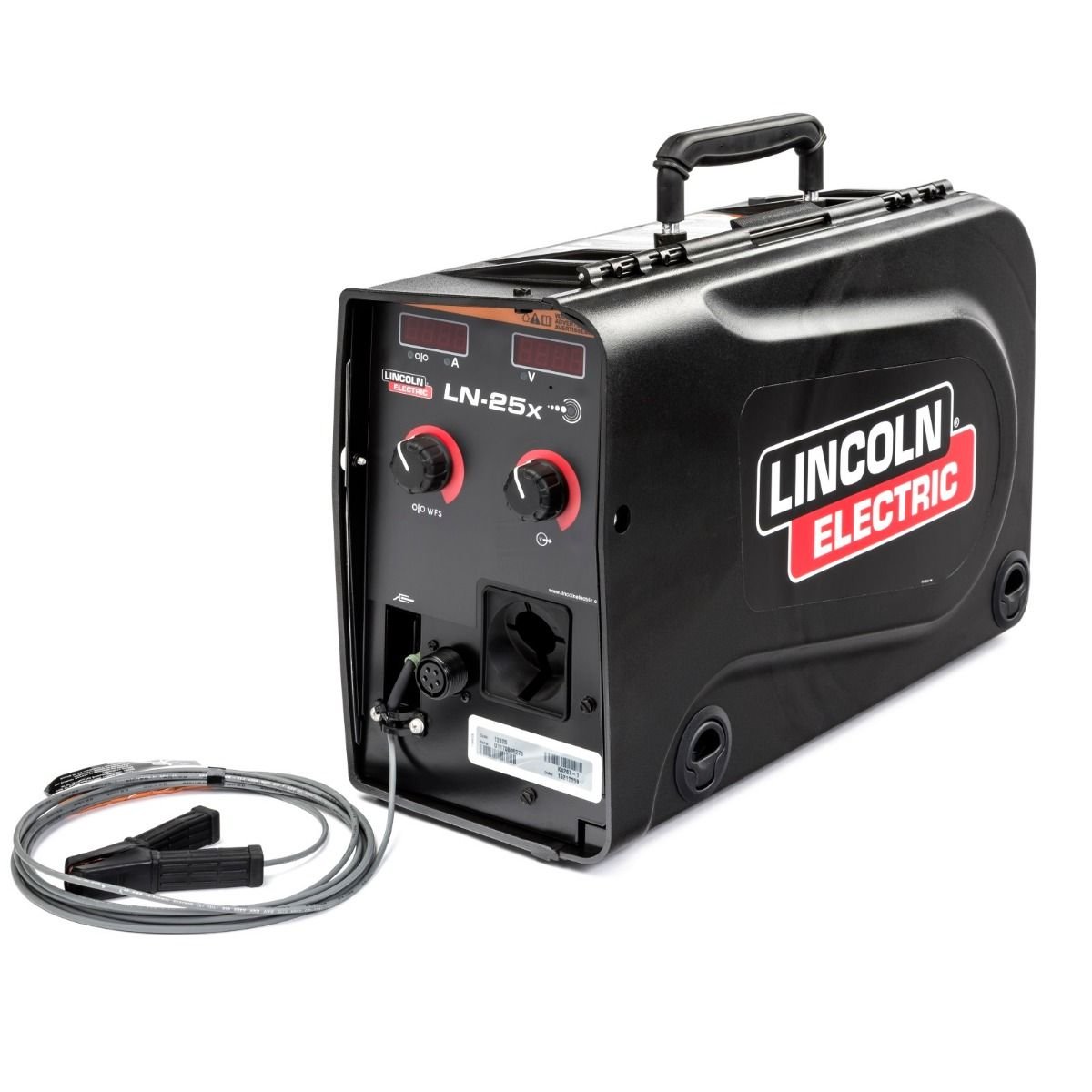

Lincoln K4267 LN-25X Portable Wire Feeder w/ CrossLinc Technology
$2,076.00
In Stock
Lincoln K4267 LN-25X is a portable wire feeder featuring CrossLinc technology. This rugged unit is designed for construction and site work.
- CrossLinc technology enables full parameter control at the feeder without a control cable, reducing clutter and site hazards
- The impact-resistant case protects wire and internal components from the harshest job site environments and weather
- Brand New portable feeder including Lincoln’s professional-grade CrossLinc performance and warranty
In Stock
2-Day Shipping
All orders are processed and dispatched within 2 days
Description
Lincoln Ln-25X Wire Feeder W/Crosslinc Technology K4267 Specs
- Brand: Lincoln Electric
- Model: LN-25X with CrossLinc Technology
- MPN (Part Number): K4267
- Process Type: Flux-Cored (FCAW), MIG (GMAW)
- Input Power: 14-pin Control Cable / Arc Power
- Wire Feed Speed Range: 50 – 700 in/min (1.3 – 17.8 m/min)
- Wire Size Range: 0.023 – 5/64 in (0.6 – 2.0 mm)
- Drive System: MAXTRAC 4-roll drive
- Digital Display: Voltage, wire speed, error codes
- Remote Control: Yes, via CrossLinc
- Input Cable Length: 15 ft (4.5 m)
- Housing: Impact-resistant polymer with sealed electronics
- Protection Class: IP23-rated for outdoor use
- Duty Cycle: 100% @ 450 Amps
- Dimensions: 14.8 in x 7.8 in x 21.7 in (375 mm x 198 mm x 551 mm)
- Weight: 38 lbs (17.2 kg)
- Compatible Power Sources: Lincoln power sources with CrossLinc or standard CV arc
- Standards: CSA, CE compliant
- Applications: Field fabrication, construction, shipbuilding, industrial welding
- Warranty: 3-Year Lincoln Warranty
- Country of Origin: USA
- Google Product Category: 2920 (Welding Machines)
Lincoln LN-25X Portable Wire Feeder w/ CrossLinc Technology Technical Specifications
| Brand | Lincoln Electric |
|---|---|
| Full Model Name/SKU | LN-25X Portable Wire Feeder (K4267-1) |
| Country of Origin | USA |
| Welding Process | MIG (GMAW), Pulsed MIG, Flux-Cored (FCAW) |
| Inverter/Transformer Technology | N/A (Portable Across-the-Arc Feeder) |
| Input Voltage | 15 – 110 VDC |
| Output Current Range | Up to 450 A Rating |
| Duty Cycle | 100% @ 450 A |
| Open Circuit Voltage (OCV) | N/A |
| Rated Input Capacity | N/A |
| Power Factor & Efficiency | CrossLinc Technology for Remote Voltage Control via Weld Cable |
| Wire Feed Speed Range | 1.3 – 17.8 m/min (50 – 700 ipm) |
| Protection Class | IP23 (Flame-retardant Polycarbonate Case) |
| Insulation Class | Class F |
| Cooling System | Passive Convection |
| Dimensions | 381 x 221 x 589 mm |
| Net Weight | 17 kg |
| Smart Features | CrossLinc Technology, Maxtrac Drive System, Internal Flow Meter, TVT (True Voltage Technology) |
| Standard Compliance | CSA, CE |
| Primary Application | Shipyards, Pipeline, Structural Construction, Field Fabrication |
