Miller 907710001 Maxstar 161 STL DC TIG/Stick Welder w/ X-Case (Portable)
$1,368.00
In Stock
Miller 907710001 Maxstar 161 STL is a portable DC TIG/Stick welder featuring the rugged X-Case. This compact unit is designed for professional field repairs.
- The STL model provides Lift-Arc start for TIG welding without high frequency, ensuring clean starts in sensitive environments
- Weighing only 13 lbs, this machine is highly portable while delivering up to 160 Amps of DC welding power
- Brand New unit including X-Case protection and Miller’s manufacturer warranty
In Stock
2-Day Shipping
All orders are processed and dispatched within 2 days
Description
Miller Maxstar 161 Stl Tig And Stick Welder With X-Case 907710001 Specs
- Brand: Miller
- Model: Maxstar 161 STL
- MPN: 907710001
- Processes: DC TIG, Stick
- Input Voltage: 120V / 240V
- Output Range: 20–160 Amps (TIG), 30–160 Amps (Stick)
- Duty Cycle: 60% @ 160A (240V)
- Lift-Arc: Yes
- Technology: Inverter-based with adaptive hot start
- Portability: Highly portable – only 13 lbs
- Dimensions: 9 in H × 5.5 in W × 13.25 in D
- Weight: 13 lbs (machine only)

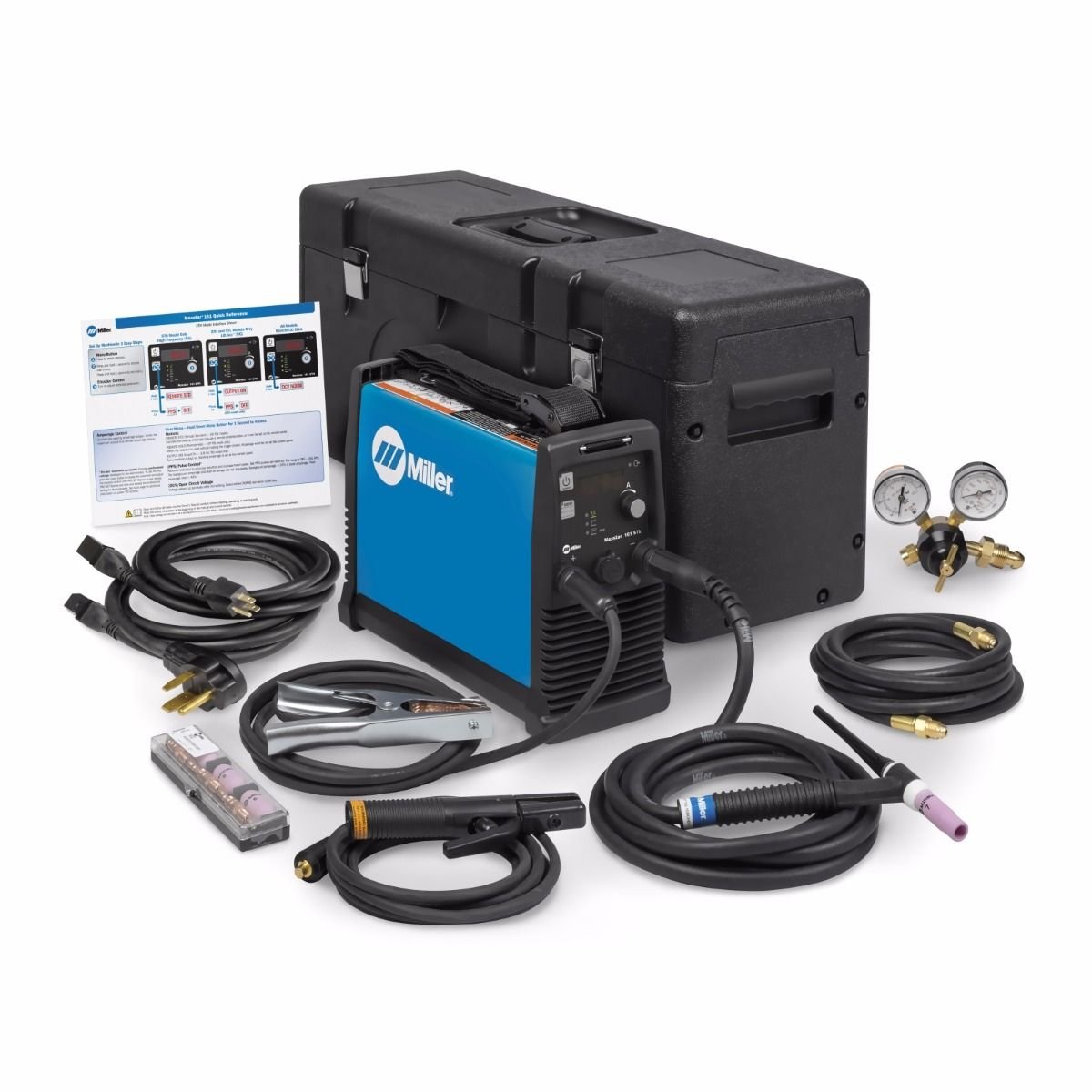

- Included Accessories: TIG torch, stick electrode holder, ground clamp, shoulder strap, X-Case
- Material Compatibility: Mild Steel, Stainless Steel
- Google Product Category: 2920 (Welding Machines)
- Warranty: 3-Year Miller True Blue Warranty
Miller Maxstar 161 STL DC TIG/Stick Welder w/ X-Case (Portable) Technical Specifications
| Brand | Miller |
|---|---|
| Full Model Name/SKU | Maxstar 161 STL w/ X-Case (907710001) |
| Country of Origin | USA |
| Welding Process | DC TIG (GTAW), Stick (SMAW) |
| Inverter/Transformer Technology | DC IGBT Inverter |
| Input Voltage | 120 / 240 V (MVP Plug) |
| Output Current Range | 5 – 160 A |
| Duty Cycle | 30% @ 160 A (240V), 100% @ 110 A (240V) |
| Open Circuit Voltage (OCV) | 48 VDC |
| Rated Input Capacity | 6.3 kVA |
| Power Factor & Efficiency | Ultra-Portable High-Efficiency Design |
| Wire Feed Speed Range | N/A |
| Protection Class | IP23 |
| Insulation Class | Class F |
| Cooling System | Fan-On-Demand |
| Dimensions | 262 x 139 x 343 mm |
| Net Weight | 6.1 kg (Power Source Only) |
| Smart Features | X-Case Protective Carrier, Lift-Arc Start, MVP Plug, Thermal Overload Protection |
| Standard Compliance | CSA, IEC 60974-1 |
| Primary Application | Field Service, HVAC, Process Piping, Remote Site Maintenance |
