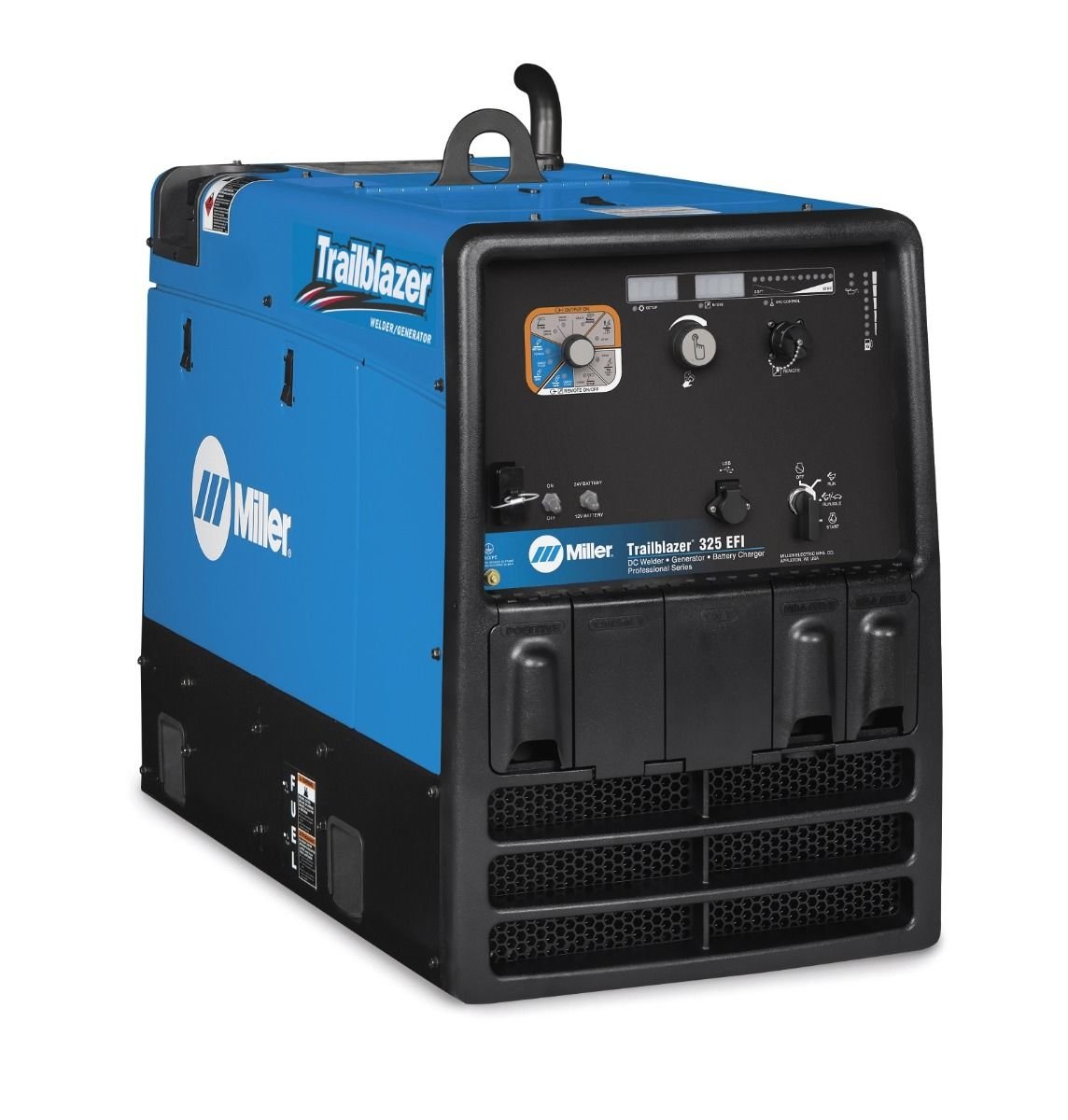

Miller Trailblazer 325 EFI Welder/Generator w/ Excel Power & Battery Charge/Jump Start
$6,924.00
In Stock
In Stock
Wholesale Price
Request for Quotations
Description
Miller Trailblazer 325 Efi Welder/Generator With Excel Power Battery Charge/Jump Start 907798004
- Brand: Miller
- Model: Trailblazer 325 EFI with Excel Power & Jump Start
- MPN: 907798004
- Engine: Kohler CH750 EFI, V-Twin Gasoline Engine
- Engine Power: 25 HP @ 3,600 RPM
- Fuel Type: Gasoline
- Fuel Tank Capacity: 12 gallons (45.4 liters)
- Welding Output: Up to 325 Amps DC
- Duty Cycle: 100% at 300 Amps
- Welding Processes: Stick (SMAW), TIG (GTAW), MIG (GMAW), Flux-Cored (FCAW), Air Carbon Arc Gouging (up to 3/16″)
- EFI (Electronic Fuel Injection): Yes – better starts & fuel economy
- Excel Power: Yes – 2,400W of 120V power at idle
- Battery Charge & Jump Start: Yes – 12V and 24V support
- Generator Output: 10,500W Peak / 9,500W Continuous (120/240V)
- Auto-Speed Technology: Yes – adjusts engine RPM to load
- Noise Level: 65.5 dB @ idle, 73.5 dB @ 23 ft under load
- Dimensions: 42.6 in L × 20 in W × 32.4 in H
- Weight: Approx. 490 lbs (222 kg)
- GTIN: 715959688499
- Google Product Category: 2920 (Welding Machines)
- Warranty: 3-Year Miller True Blue Warranty
Miller Trailblazer 325 EFI Welder/Generator w/ Excel Power & Battery Charge/Jump Technical Specifications
| Brand | Miller |
|---|---|
| Full Model Name/SKU | Trailblazer 325 EFI w/ Excel Power & Battery Charge/Jump (907798001) |
| Country of Origin | USA |
| Welding Process | Stick (SMAW), TIG (GTAW), MIG (GMAW), Flux-Cored (FCAW), Air Carbon Arc Gouging |
| Inverter/Transformer Technology | ITW Inverter Technology |
| Input Voltage | N/A (Engine Driven) |
| Output Current Range | 10 – 325 A |
| Duty Cycle | 100% @ 325 A |
| Open Circuit Voltage (OCV) | 75 VDC |
| Rated Input Capacity | 12,000 Watts (Peak) / 10,500 Watts (Continuous) |
| Power Factor & Efficiency | Electronic Fuel Injection (EFI) for 33% More Fuel Efficiency |
| Wire Feed Speed Range | N/A |
| Protection Class | IP23 |
| Insulation Class | Class F |
| Cooling System | Air-Cooled (Kohler ECH730 EFI) |
| Dimensions | 711 x 508 x 1029 mm |
| Net Weight | 209 kg |
| Smart Features | Excel Power (2400W at idle), Battery Charge/Jump Start (150A/300A), Auto-Speed |
| Standard Compliance | CSA, EPA Tier 4 |
| Primary Application | Fleet Service Trucks, Emergency Roadside Repair, General Fabrication |
