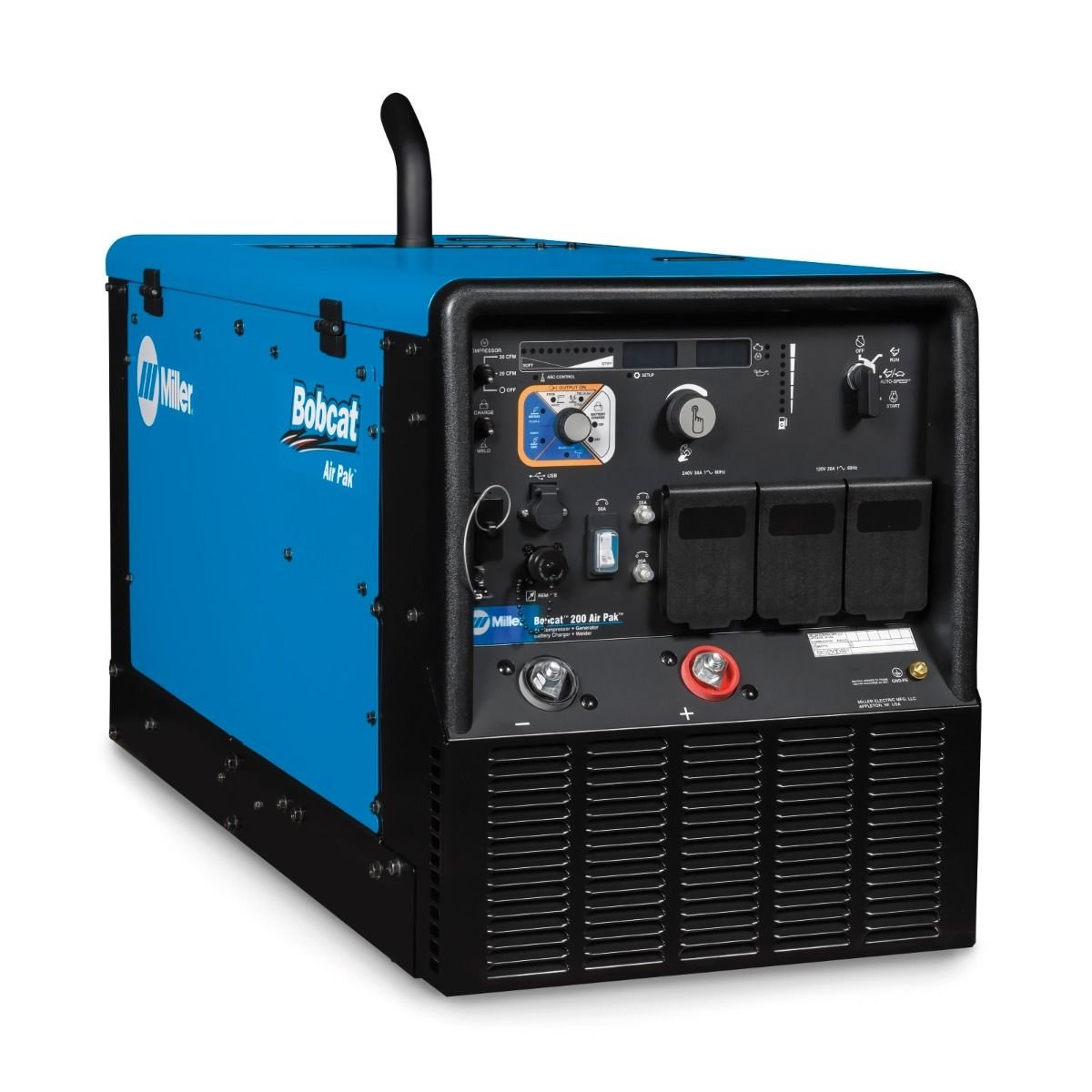

Miller Bobcat 200 Air Pak Welder Generator w/ Built-in Air Compressor
$10,314.00
In Stock
Miller Bobcat 200 Air Pak is a multi-function power solution integrating a welder, generator, and air compressor into one compact unit. Engineered for maximum mobile efficiency.
- Integrated rotary screw air compressor delivers 28 CFM for high-demand tools
- Versatile 200A welding output supports stick, TIG, and MIG field applications
- Brand New all-in-one system includes 6,500W generator and 3-Year Warranty
In Stock
2-Day Shipping
All orders are processed and dispatched within 2 days
Description
Miller Bobcat 200 Air Pak Welder Generator 907771
- Brand: Miller
- Model: Bobcat 200 Air Pak
- MPN: 907771
- Engine: Kohler CH750, 2-Cylinder Gasoline
- Engine Power: 27 HP @ 3,600 RPM
- Fuel Type: Gasoline
- Fuel Tank Capacity: 12 gallons (45.4 liters)
- Welding Output: 40 – 210 Amps DC
- Welding Processes: Stick, MIG, Flux-Cored, DC TIG
- Duty Cycle: 100% at 210 Amps
- Air Compressor: 30 CFM @ 175 PSI, Rotary Screw, Continuous Duty
- Battery Charge/Crank: 12/24V Charging, 300A Cranking
- Generator Output: 6,500W Continuous, 11,000W Peak (120/240V AC)
- Power Quality: Clean power – safe for electronics
- Noise Level: 74.5 dB @ 23 ft under load
- Dimensions: 59.5 in L × 20 in W × 34.25 in H
- Weight: Approx. 558 lbs (253 kg)
- GTIN: 715959681297
- Google Product Category: 2920 (Welding Machines)
- Warranty: 3-Year Miller True Blue Warranty
Miller Bobcat 200 Air Pak Welder Generator w/ Built-in Air Compressor Technical Specifications
| Brand | Miller |
|---|---|
| Full Model Name/SKU | Bobcat 200 Air Pak (907761) |
| Country of Origin | USA |
| Welding Process | Stick (SMAW), TIG (GTAW), MIG (GMAW), Flux-Cored (FCAW) |
| Inverter/Transformer Technology | Three-Phase Rotating Field |
| Input Voltage | N/A (Engine Driven) |
| Output Current Range | 20 – 210 A |
| Duty Cycle | 60% @ 210 A, 100% @ 160 A |
| Open Circuit Voltage (OCV) | 65 VDC |
| Rated Input Capacity | 8,000 Watts (Peak) / 8,000 Watts (Continuous) |
| Power Factor & Efficiency | Compact All-in-One Optimization |
| Wire Feed Speed Range | N/A |
| Protection Class | IP23 |
| Insulation Class | Class F |
| Cooling System | Air-Cooled (Kohler ECH730 EFI) |
| Dimensions | 716 x 508 x 1199 mm |
| Net Weight | 222 kg |
| Smart Features | 28 CFM Rotary Screw Compressor, 12/24V Battery Charger/Jump Starter, Auto-Speed |
| Standard Compliance | CSA, EPA Tier 4 |
| Primary Application | Service Trucks, Mobile Mechanics, Municipal Fleet Maintenance |
