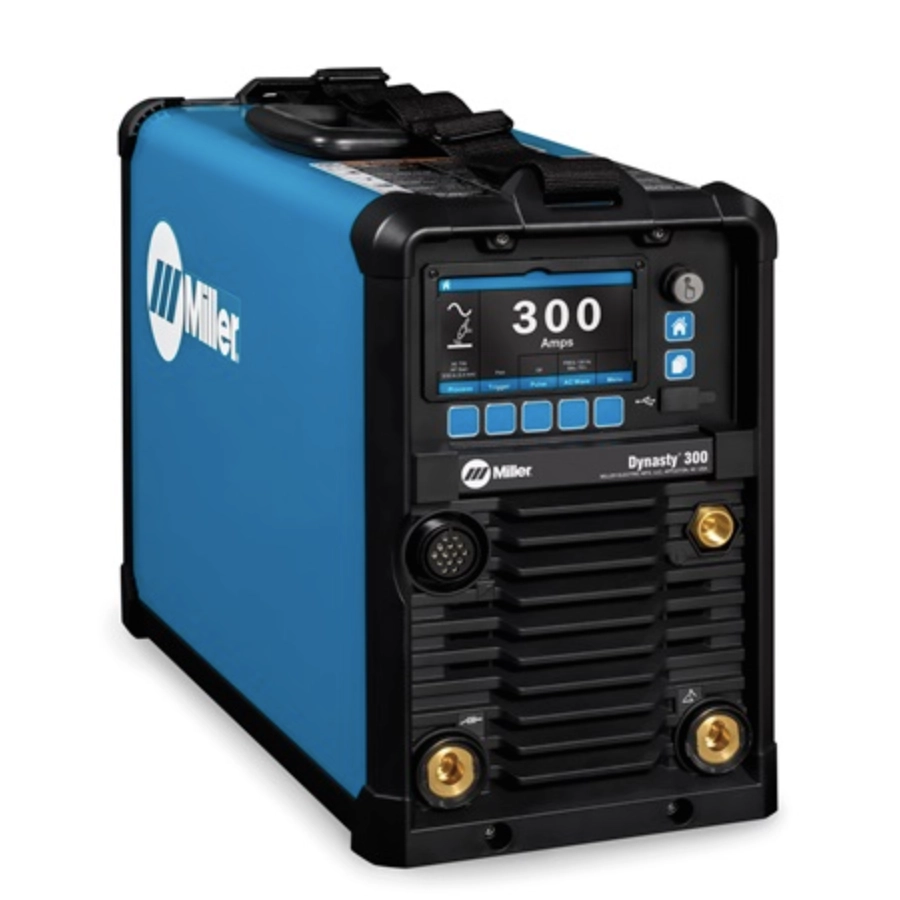

Miller 907819 Dynasty 300 CV Multi-Process Welder w/ CPS
$6,426.00
In Stock
Miller 907819 Dynasty 300 CV is a Multi-Process AC/DC TIG welder with CPS. This machine combines TIG precision with MIG/Stick versatility.
- The CV (Constant Voltage) capability allows for professional MIG welding when paired with a wire feeder, alongside elite TIG performance
- Cooler Power Supply (CPS) integrated outlet makes adding a water-cooling system seamless for high-duty cycle industrial tasks
- Brand New industrial unit featuring multi-process capabilities and Miller’s industrial warranty
In Stock
2-Day Shipping
All orders are processed and dispatched within 2 days
Description
Miller Dynasty 300 Cv Multiprocess Welder W/Cps 907819 Specs
- Brand: Miller
- Model: Dynasty 300 CV with CPS
- MPN: 907819
- Process: AC/DC TIG, Stick, CV MIG
- Input Voltage: 208–575V, 1/3 Phase, Auto-Line
- Amperage Range: 1 – 300 Amps
- Output Power: AC/DC Multiprocess
- Duty Cycle: 60% at 300A
- Cooling Type: Integrated CPS (Coolant Power Supply) for water cooling
- TIG Features: High-frequency start, pulse control, AC balance, and frequency control
- Arc Starting: Lift-Arc & HF Start
- Weight: Approx. 55 lbs (24.9 kg)
- Dimensions: 13.6 x 7.5 x 20.5 in (345 x 191 x 521 mm)
- Interface: Easy-to-read digital display with programmable memory
- Power Efficiency: Inverter-based technology for lower energy consumption
- Compatible with: Wireless foot controls, TIG torches, MIG feeders (sold separately)
- Included: Power source, CPS cooling, 8-pin receptacle, remote interface
- Application: Aerospace, Manufacturing, Pipe Welding, Heavy Fabrication
- Google Product Category: 2920 (Welding Machines)
- Condition: New
- Warranty: 3-Year Miller True Blue Warranty
Miller Dynasty 300 CV Multi-Process Welder w/ CPS Technical Specifications
| Brand | Miller |
|---|---|
| Full Model Name/SKU | Dynasty 300 CV w/ CPS (907819) |
| Country of Origin | USA |
| Welding Process | AC/DC TIG, Stick, MIG (CV), Flux-Cored (CV) |
| Inverter/Transformer Technology | AC/DC Multi-Process Inverter |
| Input Voltage | 208 – 600 V (Auto-Line Technology) |
| Output Current Range | 1 – 300 A |
| Duty Cycle | 60% @ 210 A, 100% @ 175 A |
| Open Circuit Voltage (OCV) | 60 VDC |
| Rated Input Capacity | 11.4 kVA |
| Power Factor & Efficiency | 0.95 Power Factor |
| Wire Feed Speed Range | N/A (Compatible with SuitCase Feeders) |
| Protection Class | IP23 |
| Insulation Class | Class H |
| Cooling System | Cooler Power Supply (CPS) Integrated |
| Dimensions | 445 x 318 x 610 mm |
| Net Weight | 25 kg |
| Smart Features | CV Output for MIG, Pro-Set, Blue Lightning HF Start, Auto-Line |
| Standard Compliance | CSA, CE, IEC 60974-1 |
| Primary Application | Industrial Manufacturing, Precision Pipe, Aerospace Repair |
