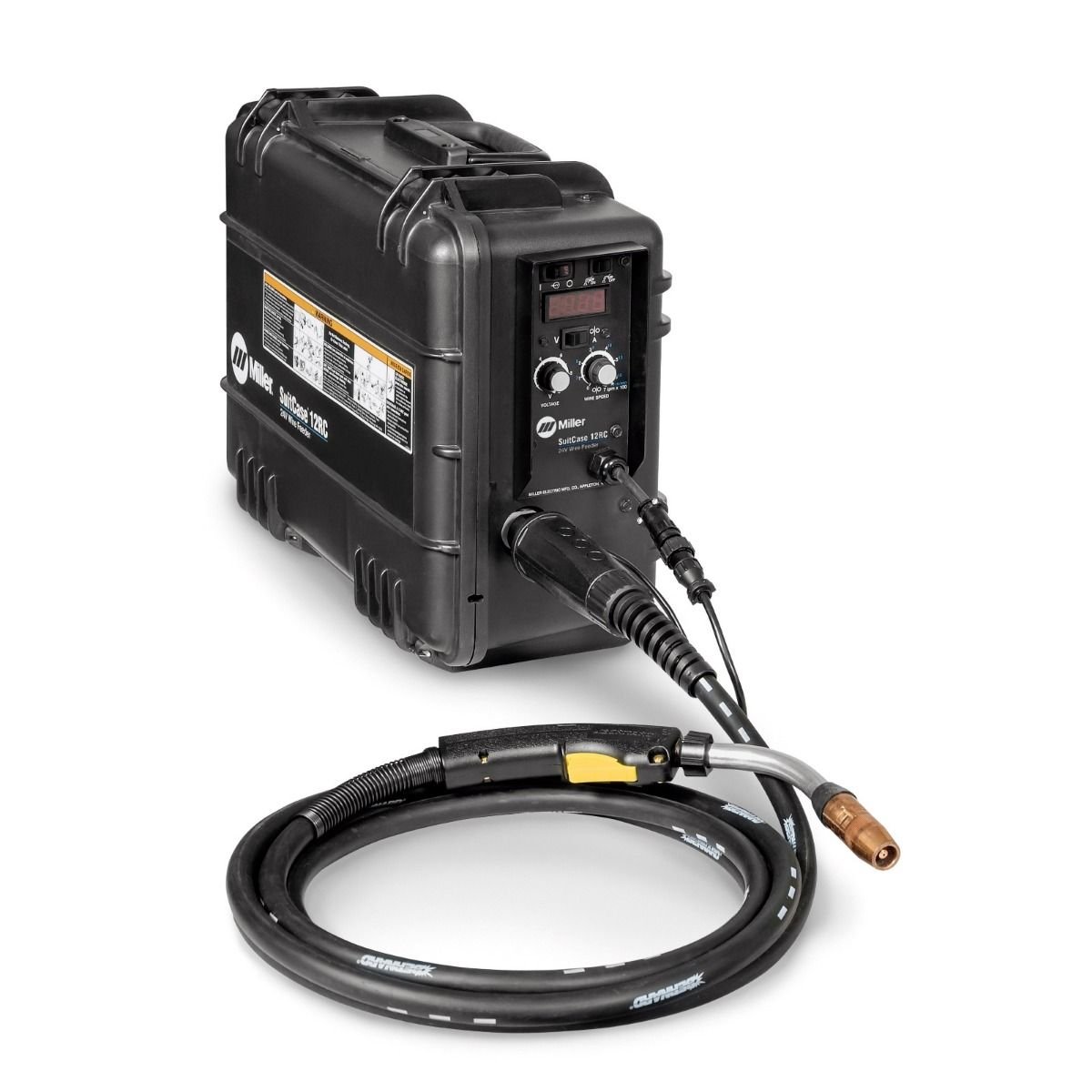

Miller 951580 SuitCase 12RC Wire Feeder w/ Bernard Q300 Gun & Meters
$2,616.00
In Stock
In Stock
Wholesale Price
Request for Quotations
Description
Miller Suitcase 12Rc With Bernard Q300 Gun Meters Remote Voltage 951580 Specs
- Brand: Miller
- Model: Suitcase 12RC with Bernard Q300 Gun & Meters
- MPN: 951580
- Process: MIG (GMAW), Flux-Cored (FCAW)
- Input Power: 24 VAC (from compatible power sources)
- Wire Feed Speed: 50–780 inches per minute (IPM)
- Remote Voltage Control: Yes – integrated control knob
- Display: Digital meters for voltage and wire speed
- Gun Included: Bernard Q300 MIG Gun (300A capacity)
- Drive Rolls: Quick-change, heavy-duty 4-roll drive system
- Wire Size Capacity: 0.023″ – 1/16″ (0.6 – 1.6 mm)
- Case Material: Impact-resistant flame-retardant plastic
- Enclosure Rating: IP23 (weather-resistant for job sites)
- Dimensions: 21 in L × 7.5 in W × 15 in H
- Weight: Approx. 35 lbs (without wire spool)
- Use Case: Industrial welding, construction, maintenance, structural steel
- Google Product Category: 2920 (Welding Machines)
- Warranty: 3-Year True Blue Miller Warranty
Miller SuitCase 12RC Wire Feeder w/ Bernard Q300 Gun & Meters Technical Specifications
| Brand | Miller |
|---|---|
| Full Model Name/SKU | SuitCase 12RC Wire Feeder (951580) |
| Country of Origin | USA |
| Welding Process | MIG (GMAW), Flux-Cored (FCAW) |
| Inverter/Transformer Technology | External Drive System (Remote Control Circuit) |
| Input Voltage | 24 VAC (Auxiliary Power from Power Source) |
| Output Current Range | N/A (Feeder Only - Up to 425 A Rating) |
| Duty Cycle | 100% @ 425 A |
| Open Circuit Voltage (OCV) | N/A |
| Rated Input Capacity | N/A |
| Power Factor & Efficiency | Remote Voltage Control via Interconnect Cable |
| Wire Feed Speed Range | 1.3 – 17.8 m/min (50 – 700 ipm) |
| Protection Class | IP23 (Impact Resistant Polycarbonate Case) |
| Insulation Class | Class F |
| Cooling System | Passive Convection |
| Dimensions | 394 x 229 x 533 mm |
| Net Weight | 11.6 kg |
| Smart Features | Bernard Q300 MIG Gun, Digital Meters, Remote Control (RC) functionality |
| Standard Compliance | CSA, CE |
| Primary Application | Shipbuilding, Heavy Industrial construction, Bridge Fabrication |
