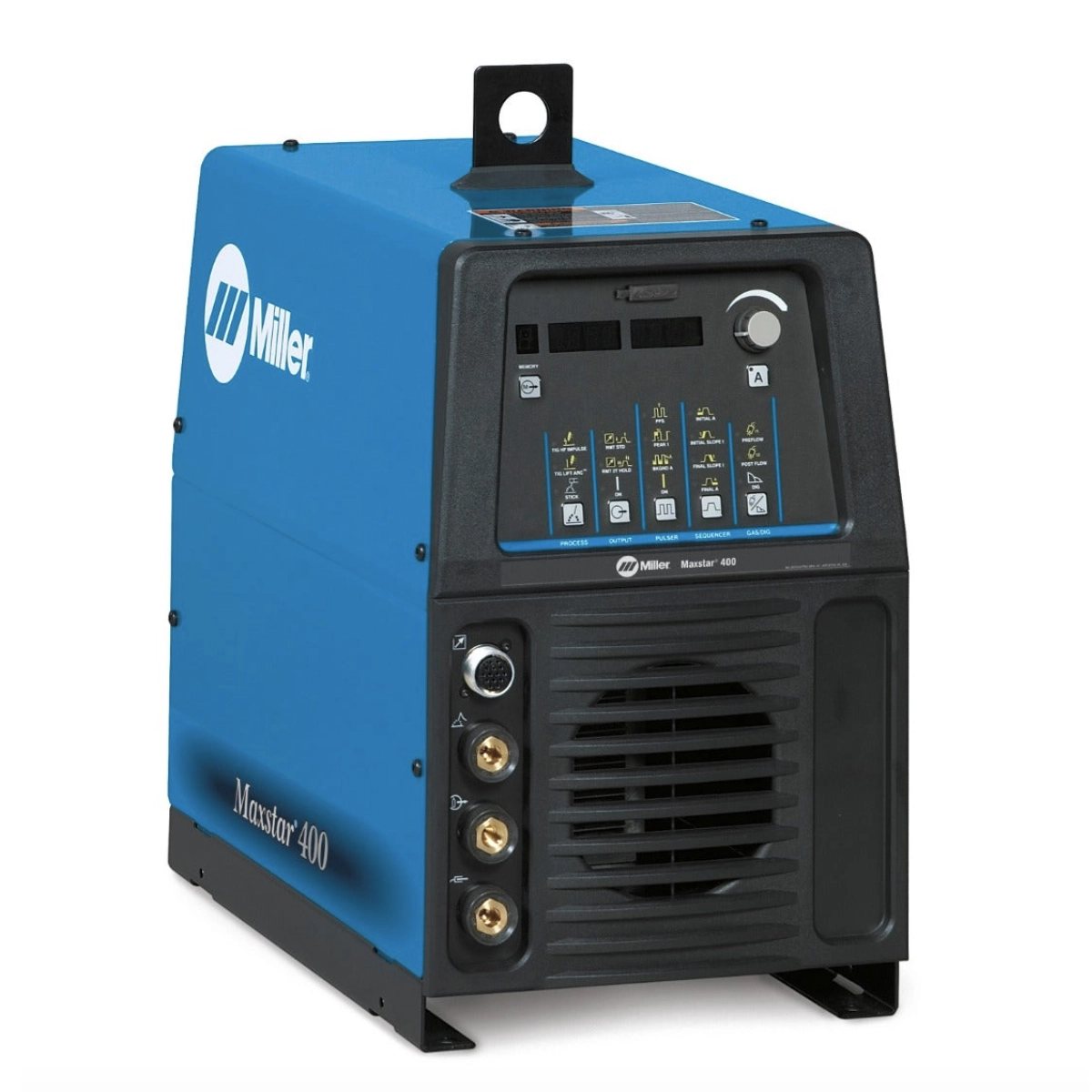

Miller 907716 Maxstar 400 DC TIG/Stick Welder (Base Unit)
$6,000.00
In Stock
In Stock
Wholesale Price
Request for Quotations
Description
Miller Maxstar 400 Dc Tig Welder 907716 Specs
- Brand: Miller
- Model: Maxstar 400
- MPN: 907716
- Processes: DC TIG (GTAW), Stick (SMAW)
- Input Power: Auto-Line 208–575V, 1-Phase or 3-Phase
- Weld Output: 5 – 400 Amps
- Rated Output: 400A @ 36V, 60% Duty Cycle
- Technology: Inverter-Based, Auto-Line, Fan-On-Demand
- Cooling: Air-Cooled
- Display: Digital Controls with Menu Interface
- Weight: Approx. 122 lb (55.3 kg)
- Dimensions: 17.5 in H x 12.5 in W x 24 in D
- Compatible Foot Control: Wireless Foot Control (optional)
- Applications: Pipe Welding, Heavy Fabrication, Industrial Maintenance
- Compliance: CSA Certified, IP23 Rated
- Warranty: 3-Year Miller True Blue
- Condition: Brand New
- Google Product Category: 2920 (Welding Machines)
Miller Maxstar 400 DC TIG/Stick Welder (Base Unit) Technical Specifications
| Brand | Miller |
|---|---|
| Full Model Name/SKU | Maxstar 400 Base (907716) |
| Country of Origin | USA |
| Welding Process | DC TIG (GTAW), Pulsed TIG (GTAW-P), Stick (SMAW) |
| Inverter/Transformer Technology | DC IGBT Inverter |
| Input Voltage | 208 – 575 V (Auto-Line) |
| Output Current Range | 3 – 400 A |
| Duty Cycle | 100% @ 300 A, 60% @ 400 A |
| Open Circuit Voltage (OCV) | 75 VDC |
| Rated Input Capacity | 15.4 kVA |
| Power Factor & Efficiency | 0.95 Power Factor |
| Wire Feed Speed Range | N/A |
| Protection Class | IP23 |
| Insulation Class | Class H |
| Cooling System | Fan-On-Demand (Air-Cooled) |
| Dimensions | 629 x 349 x 559 mm |
| Net Weight | 61.2 kg |
| Smart Features | Auto-Line Technology, Programmable Arc Start, Lift-Arc, High-Speed Pulsing |
| Standard Compliance | CSA, CE, IEC 60974-1 |
| Primary Application | Nuclear Power Plants, Petrochemical, High-End Industrial Manufacturing |
