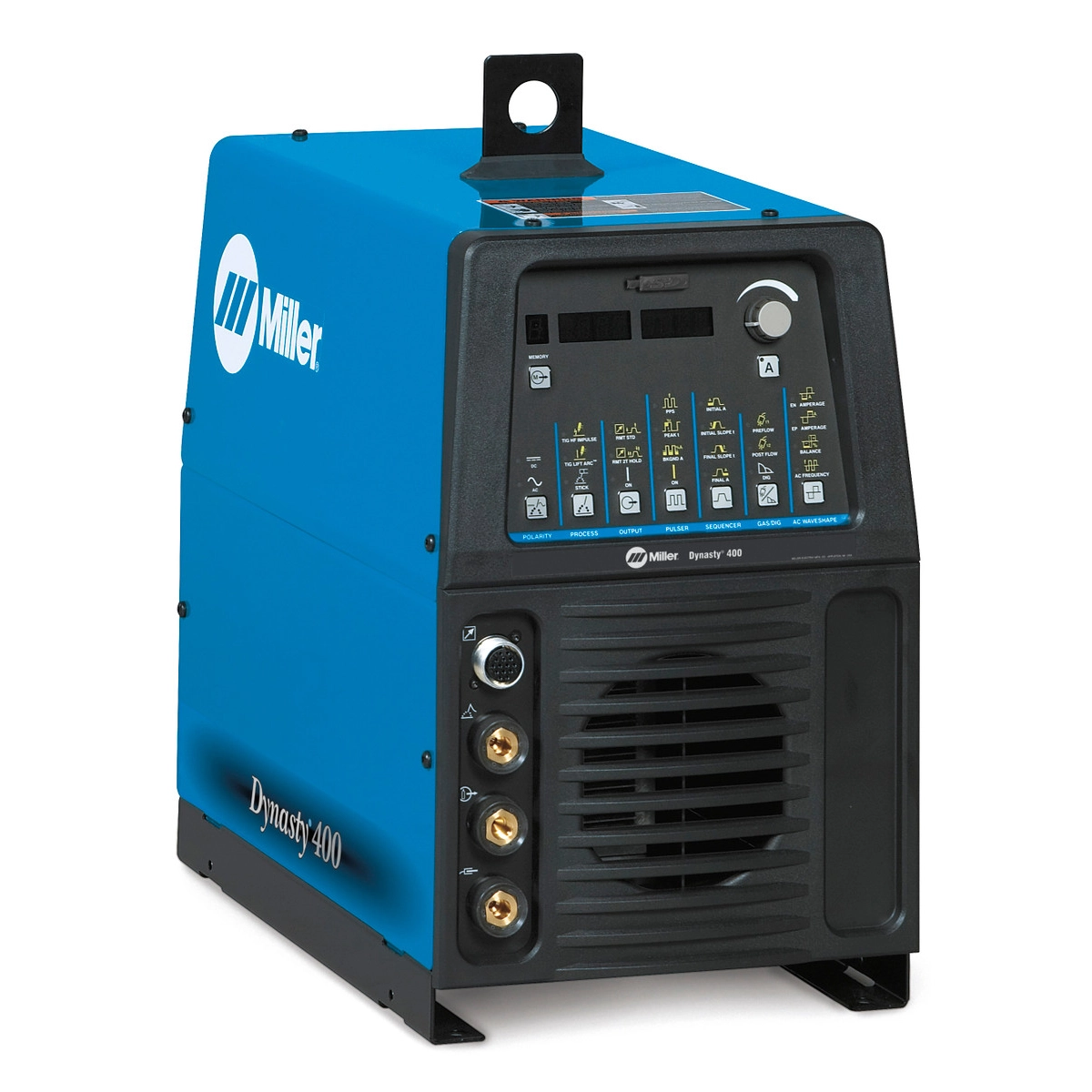

Miller 907717 Dynasty 400 AC/DC TIG Welder (Base Unit)
$7,146.00
In Stock
In Stock
Wholesale Price
Request for Quotations
Description
Miller Dynasty 400 Tig Welder 907717 Specs
- Brand: Miller
- Model: Dynasty 400
- MPN: 907717
- Processes: TIG (GTAW), Stick (SMAW)
- Output Type: AC/DC
- Rated Output: 400A @ 26V, 60% Duty Cycle
- Amperage Range: 3–400 A
- Input Power: 208–575V, 1/3-Phase, 50/60Hz
- Technology: Auto-Line, Pro-Set, Inverter Technology
- Arc Starting: High-frequency or Lift-Arc start
- Cooling: Water-cooled (Coolant system sold separately)
- Waveform Control: Advanced Squarewave, Soft Squarewave, Sinewave, Triangular
- Memory Settings: 9 program memory slots
- Net Weight: Approx. 100 lbs (45.3 kg)
- Dimensions: 13.6 in H × 17.5 in W × 24 in D
- Applications: Aerospace, shipbuilding, pipe welding, precision fabrication
- Display: Digital front panel with intuitive controls
- Compatibility: Wireless Foot Control, Coolmate Coolers
- Warranty: 3-Year Miller True Blue Warranty
- Condition: New
- Google Product Category: 2920 (Welding Machines)
Lincoln LN-25X Portable Wire Feeder w/ CrossLinc Technology Technical Specifications
| Brand | Lincoln Electric |
|---|---|
| Full Model Name/SKU | LN-25X Portable Wire Feeder (K4267-1) |
| Country of Origin | USA |
| Welding Process | MIG (GMAW), Pulsed MIG, Flux-Cored (FCAW) |
| Inverter/Transformer Technology | N/A (Portable Across-the-Arc Feeder) |
| Input Voltage | 15 – 110 VDC |
| Output Current Range | Up to 450 A Rating |
| Duty Cycle | 100% @ 450 A |
| Open Circuit Voltage (OCV) | N/A |
| Rated Input Capacity | N/A |
| Power Factor & Efficiency | CrossLinc Technology for Remote Voltage Control via Weld Cable |
| Wire Feed Speed Range | 1.3 – 17.8 m/min (50 – 700 ipm) |
| Protection Class | IP23 (Flame-retardant Polycarbonate Case) |
| Insulation Class | Class F |
| Cooling System | Passive Convection |
| Dimensions | 381 x 221 x 589 mm |
| Net Weight | 17 kg |
| Smart Features | CrossLinc Technology, Maxtrac Drive System, Internal Flow Meter, TVT (True Voltage Technology) |
| Standard Compliance | CSA, CE |
| Primary Application | Shipyards, Pipeline, Structural Construction, Field Fabrication |
