Miller 907757 / 907529 Multimatic 220 AC/DC Welder & Spectrum 375 Plasma Cutter Bundle
$3,588.00
In Stock
In Stock
Wholesale Price
Request for Quotations
Description
Miller Multimatic 220 Ac/Dc Welder Spectrum 375 Plasma Cutter 907757 907529 Specs
- Brand: Miller
- Welder Model: Multimatic 220 AC/DC (SKU: 907757)
- Plasma Cutter Model: Spectrum 375 X-TREME (SKU: 907529)
- Processes (Welder): MIG, Flux-Cored, Stick, AC/DC Lift-Arc TIG
- Input Voltage: 120V / 240V (Dual Voltage)
- Output Range: 30–230A (MIG), 10–210A (TIG), 30–200A (Stick)
- Duty Cycle: 200A @ 25% (MIG at 240V)
- Controls: Auto-Set Elite, LCD interface, independent TIG AC balance and frequency
- Weight (Welder): 56 lbs (25.4 kg)
- Plasma Cutting Capacity: 3/8 in. (10 mm) mild steel
- Plasma Input Voltage: 120V / 240V (Dual Voltage)
- Cutting Output: 30 Amps @ 240V
- Torch Type: XT30C with 12 ft cable
- Weight (Cutter): 19 lbs (8.6 kg)

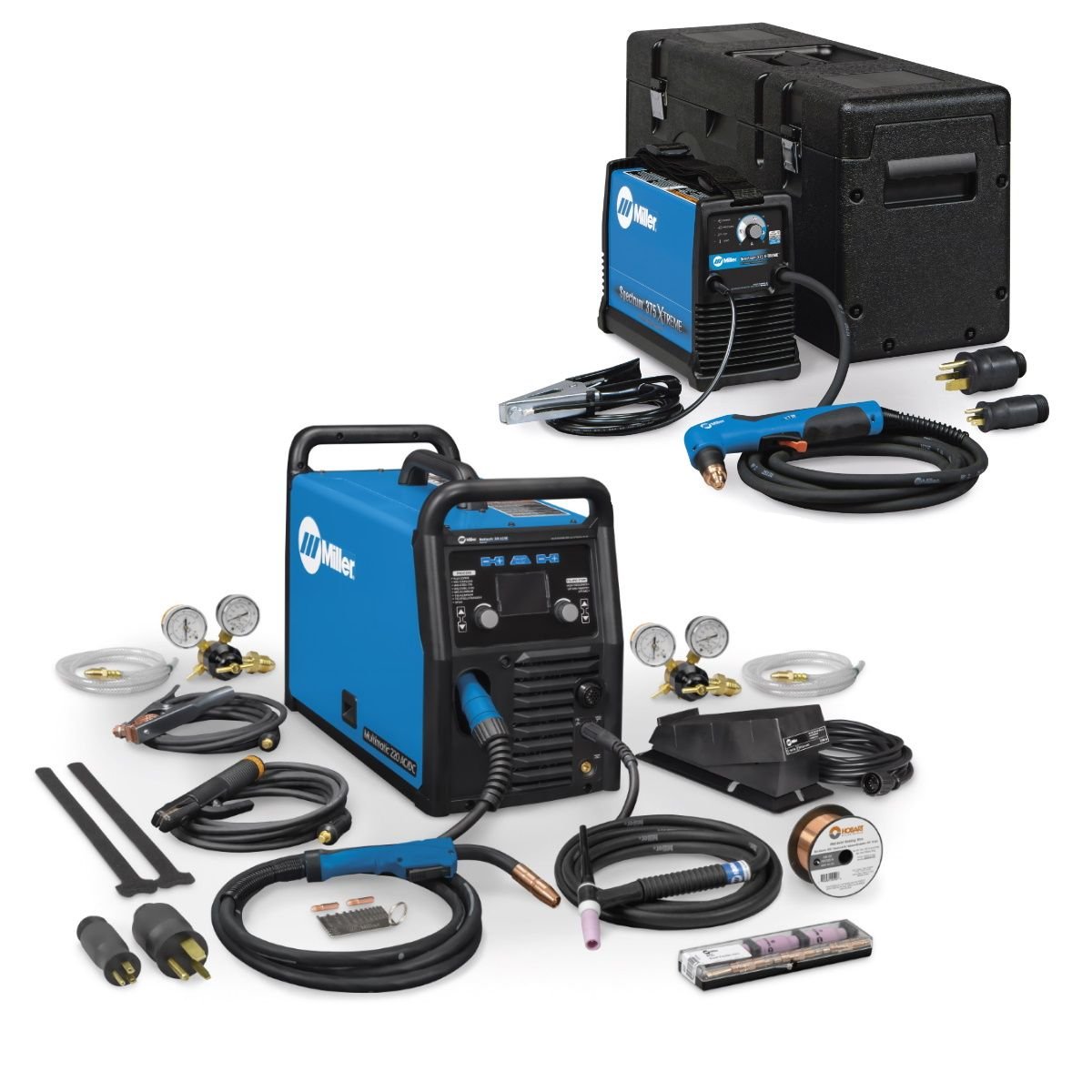

- Included Accessories: MIG gun, TIG torch, Stick electrode holder, Foot control, Work clamp, XT30C plasma torch, air filter, carrying cases
- Material Compatibility: Steel, Stainless Steel, Aluminum
- Google Product Category: 2920 (Welding Machines)
- Warranty: 3-Year Miller True Blue Warranty (Welder and Cutter)
Miller Multimatic 220 AC/DC & Spectrum 375 Plasma Bundle Technical Specifications
| Brand | Miller |
|---|---|
| Full Model Name/SKU | Multimatic 220 & Spectrum 375 Bundle (907757-907529) |
| Country of Origin | USA |
| Welding Process | MIG, Flux-Cored, Stick, AC/DC TIG, Plasma Cutting |
| Inverter/Transformer Technology | Dual Multi-Process Inverter System |
| Input Voltage | 120 / 240 V (Multi-Voltage Plug / MVP) |
| Output Current Range | 20 – 220 A (Welding) / 30 A (Cutting) |
| Duty Cycle | 15% @ 210 A (MIG/TIG), 35% @ 30 A (Plasma) |
| Open Circuit Voltage (OCV) | 45 VDC (Welding) / 250 VDC (Plasma) |
| Rated Input Capacity | 5.8 kW |
| Power Factor & Efficiency | Compact Portable Efficiency Optimization |
| Wire Feed Speed Range | 1.5 – 15.2 m/min (60 – 600 ipm) |
| Protection Class | IP21S |
| Insulation Class | Class F |
| Cooling System | Fan-On-Demand |
| Dimensions | 445 x 318 x 533 mm (Welder Only) |
| Net Weight | 25.4 kg (Welder) + 8.6 kg (Cutter) |
| Smart Features | Auto-Set Elite, MVP Plugs, Quick Select Gas, Plasma XT30 Torch |
| Standard Compliance | CSA, IEC 60974-1 |
| Primary Application | Maintenance, DIY Fabrication, Light Industrial Repair, Custom Prototyping |
