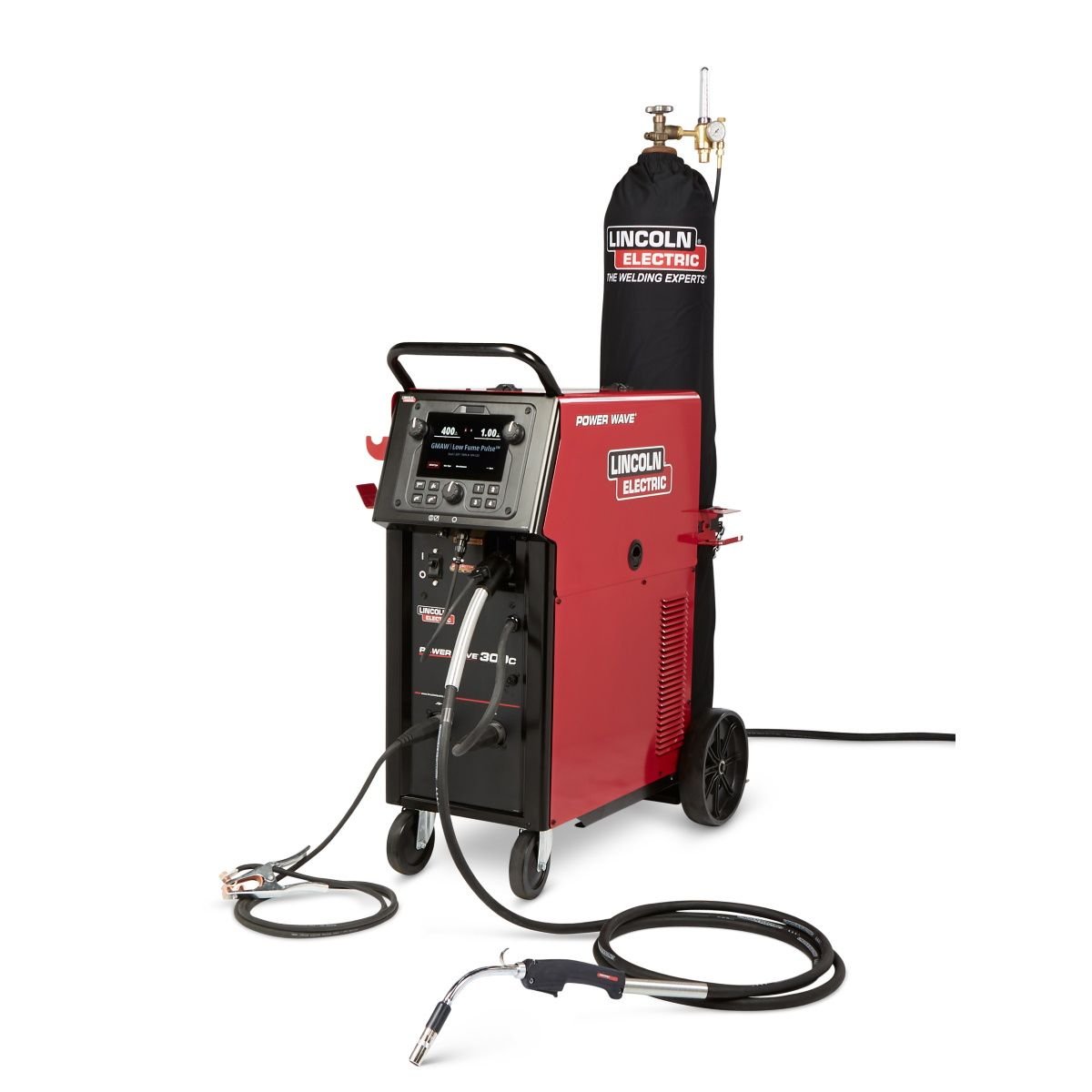

Lincoln Power Wave 300C Standard Multi-Process Welder (MIG/TIG/Stick)
$6,216.00
In Stock
In Stock
Wholesale Price
Request for Quotations
Description
Lincoln Power Wave 300C Standard Multi Process Welder K4487-1 Specs
- Brand: Lincoln Electric
- Model: Power Wave 300C Standard
- MPN: K4487-1
- Process Types: MIG, Pulsed MIG, Flux-Cored, Stick, DC TIG
- Input Voltage: 208–575V, 1/3 Phase, 50/60 Hz
- Output Range: 5 – 300 Amps
- Rated Output: 300A @ 100% Duty Cycle
- Display: 7″ Color Touchscreen
- Control Technology: Waveform Control Technology
- Data Integration: Ethernet, USB, Cloud-Ready with CheckPoint
- Wire Feed Compatibility: Compatible with Lincoln Electric wire feeders
- Dimensions: 25 in L × 10.5 in W × 20.25 in H
- Weight: Approx. 76 lbs (34.5 kg)
- GTIN: 015082973356
- Google Product Category: 2920 (Welding Machines)
- Warranty: 3-Year Lincoln Electric Warranty
Lincoln Power Wave 300C Standard Multi-Process Welder Technical Specifications
| Brand | Lincoln Electric |
|---|---|
| Full Model Name/SKU | Power Wave 300C Standard (K4453-2) |
| Country of Origin | USA |
| Welding Process | MIG (GMAW), Pulsed MIG, DC TIG (GTAW), Stick (SMAW), Flux-Cored (FCAW) |
| Inverter/Transformer Technology | Digital Inverter Technology |
| Input Voltage | 208/230/415/460/575 V (1 or 3 Phase) |
| Output Current Range | 5 – 300 A |
| Duty Cycle | 40% @ 300 A, 100% @ 210 A |
| Open Circuit Voltage (OCV) | 80 VDC |
| Rated Input Capacity | 11.0 kW |
| Power Factor & Efficiency | 88% Efficiency |
| Wire Feed Speed Range | 1.3 – 20.3 m/min (50 – 800 ipm) |
| Protection Class | IP23 |
| Insulation Class | Class H |
| Cooling System | Forced Air Cooling |
| Dimensions | 478 x 356 x 610 mm |
| Net Weight | 47 kg |
| Smart Features | Ready.Set.Weld Technology, ArcFX, CheckPoint IoT Ready |
| Standard Compliance | CSA, IEC 60974-1 |
| Primary Application | General Fabrication, Vocational Training, Small to Medium Manufacturing |
