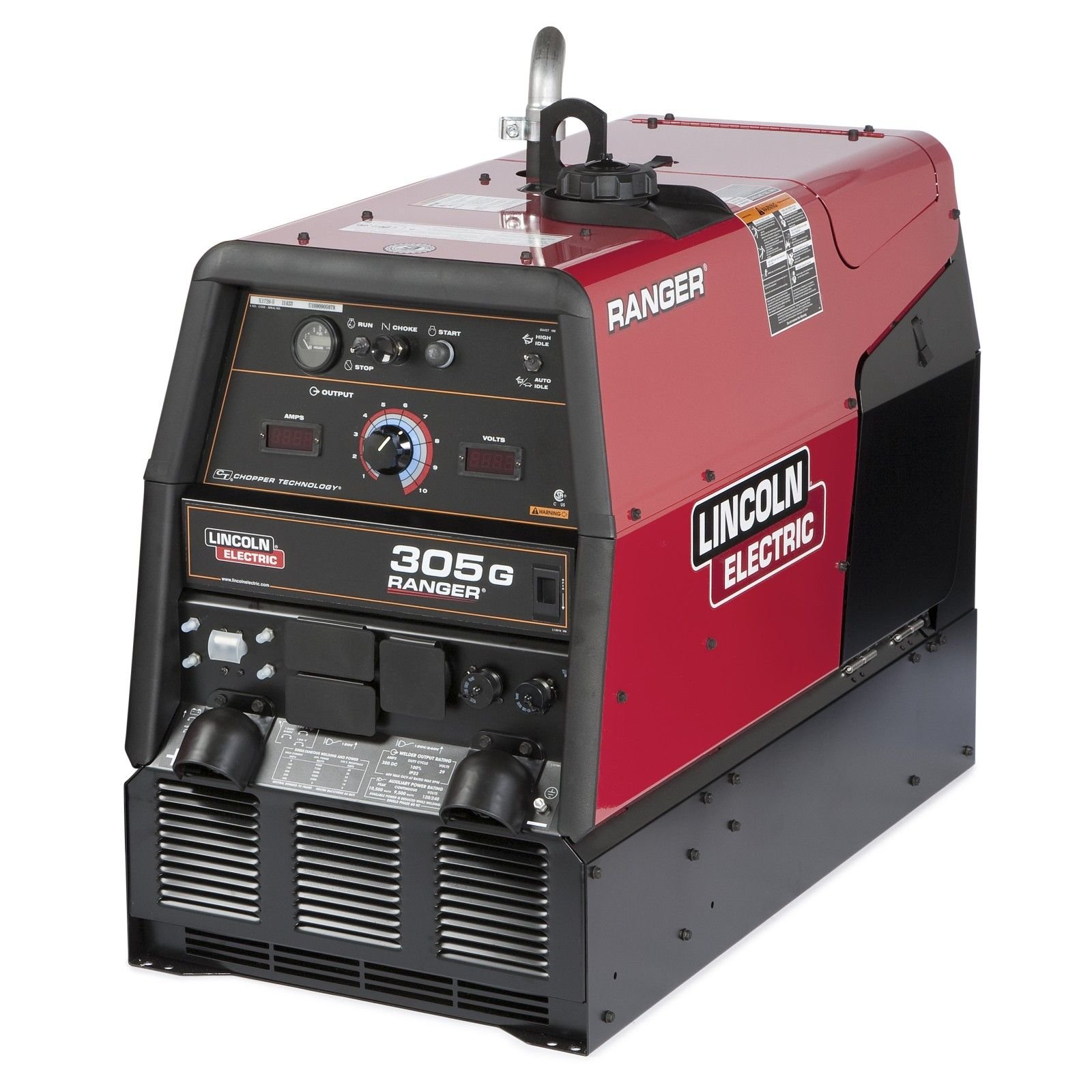

Lincoln Ranger 305 G Gas Welder Generator (10,000 Watts Peak)
$5,388.00
In Stock
Lincoln Ranger 305 G is a versatile gas welder generator providing 10,000 watts of peak auxiliary power for tools and emergency backup. Engineered for rugged outdoor construction.
- Powerful 305A DC welding output is specifically tuned for stick and pipe welding
- High 10,000W peak generator output handles large equipment, lights, and motors
- Brand New industrial-grade unit features a fully enclosed case and 3-Year Warranty
In Stock
2-Day Shipping
All orders are processed and dispatched within 2 days
Description
Lincoln Ranger 305G Welder Generator K1726-5
- Brand: Lincoln Electric
- Model: Ranger 305G
- MPN: K1726-5
- Engine Brand: Kohler
- Engine Model: CH730 OHV (2-cylinder)
- Engine Power: 23 HP at 3,600 RPM
- Fuel Type: Gasoline
- Fuel Tank Capacity: 12 gallons (45.4 liters)
- Welding Output: Up to 305 Amps @ 25V, 100% Duty Cycle
- Processes: Stick, TIG, MIG, Flux-Cored, Gouging (up to 3/16″)
- Generator Power: 10,500 Watts Peak, 9,000 Watts Continuous
- Chopper Technology: Yes – smooth arc and reduced spatter
- Receptacles: (2) 120V duplex, (1) 120/240V receptacle
- Dimensions: 42.3 in L × 21.5 in W × 36 in H
- Weight: Approx. 510 lbs (231 kg)
- Noise Level: 100.7 dB @ Rated Output
- GTIN: 015082568885
- Google Product Category: 2920 (Welding Machines)
- Warranty: 3-Year Limited Warranty
Lincoln Ranger 305 G Gas Welder Generator Technical Specifications
| Brand | Lincoln Electric |
|---|---|
| Full Model Name/SKU | Ranger 305 G (K2712-1) |
| Country of Origin | USA |
| Welding Process | Stick (SMAW), TIG (GTAW), MIG (GMAW), Flux-Cored (FCAW), Gouging |
| Inverter/Transformer Technology | Chopper Technology (CT) |
| Input Voltage | N/A (Engine Driven) |
| Output Current Range | 20 – 305 A |
| Duty Cycle | 100% @ 305 A |
| Open Circuit Voltage (OCV) | 80 VDC |
| Rated Input Capacity | 10,500 Watts (Peak) / 9,500 Watts (Continuous) |
| Power Factor & Efficiency | High Efficiency Chopper Output |
| Wire Feed Speed Range | N/A |
| Protection Class | IP23 |
| Insulation Class | Class F |
| Cooling System | Air-Cooled (Kohler OHV Command CH740) |
| Dimensions | 759 x 546 x 1073 mm |
| Net Weight | 231 kg |
| Smart Features | Digital Weld Meters, Skewed Rotor Design (Low Total Harmonic Distortion) |
| Standard Compliance | NEMA, CSA, EPA Tier 4 |
| Primary Application | Construction, Pipe Welding, Structural Steel |
