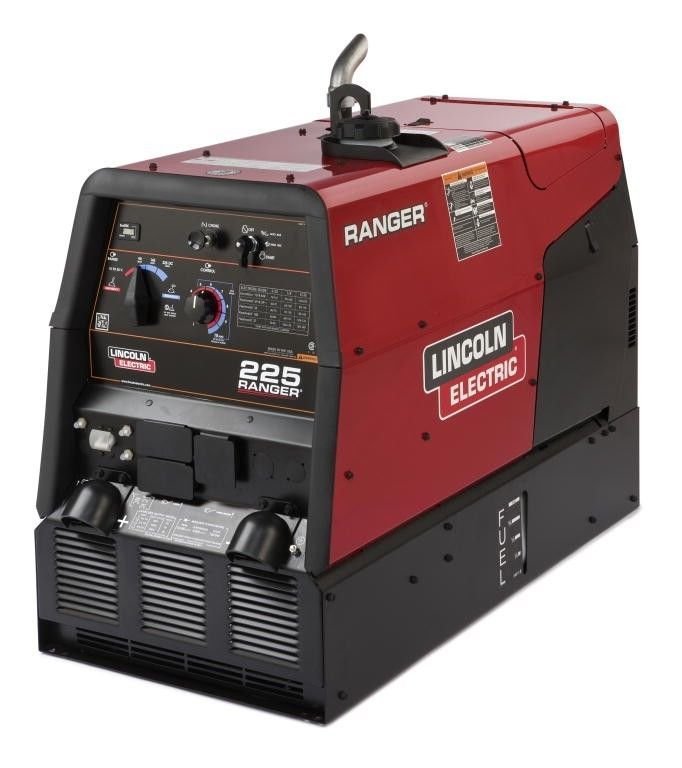

Lincoln Ranger 225 Engine Driven Welder/Generator
$3,516.00
In Stock
In Stock
Wholesale Price
Request for Quotations
Description
Lincoln Ranger 225 Engine Welder Generator K2857-1 Specs
- Brand: Lincoln Electric
- Model: Ranger 225
- MPN: K2857-1
- Welding Output: 50–225 Amps DC
- Welding Processes: Stick (SMAW), TIG (GTAW), Flux-Cored (FCAW), Gouging
- Generator Output: 10,500 Watts Peak, 9,000 Watts Continuous
- Engine Type: Kohler CH730 Gasoline Engine
- Horsepower: 23 HP at 3,600 RPM
- Fuel Type: Gasoline
- Fuel Tank Capacity: 12 gallons (45.4 liters)
- Duty Cycle: 225A @ 100%
- Start Type: Electric Start
- Receptacles: 120V duplex, 240V receptacle
- Applications: Construction, Farm/Ranch, Maintenance, Backup Power
- Weight: 514 lbs (233 kg)
- Dimensions: 42.3 in L × 21.5 in W × 29.9 in H
- Noise Level: 100.7 dB (with load)
- Google Product Category: 2920 (Welding Machines)
- Warranty: 3-Year Limited Warranty
Lincoln Ranger 225 Engine Driven Welder/Generator Technical Specifications
| Brand | Lincoln Electric |
|---|---|
| Full Model Name/SKU | Ranger 225 (K2857-1) |
| Country of Origin | USA |
| Welding Process | Stick (SMAW), TIG (GTAW), MIG (GMAW), Flux-Cored (FCAW) |
| Inverter/Transformer Technology | AC/DC Rotating Field Generator |
| Input Voltage | N/A (Engine Driven) |
| Output Current Range | 50 – 225 A |
| Duty Cycle | 100% @ 210 A / 25V, 100% @ 225 A / 25V (CV) |
| Open Circuit Voltage (OCV) | 80 VDC |
| Rated Input Capacity | 10,500 Watts (Peak) / 9,000 Watts (Continuous) |
| Power Factor & Efficiency | Smooth DC Weld Output with Low Power Ripple |
| Wire Feed Speed Range | N/A |
| Protection Class | IP23 |
| Insulation Class | Class F |
| Cooling System | Air-Cooled (Kohler OHV Command CH730) |
| Dimensions | 759 x 546 x 1073 mm |
| Net Weight | 233 kg |
| Smart Features | Versatile AC/DC Output, 9-Gallon Fuel Tank, Fully Enclosed Case |
| Standard Compliance | NEMA, CSA, EPA Tier 4 |
| Primary Application | Commercial Construction, Industrial Maintenance, Service Trucks |
