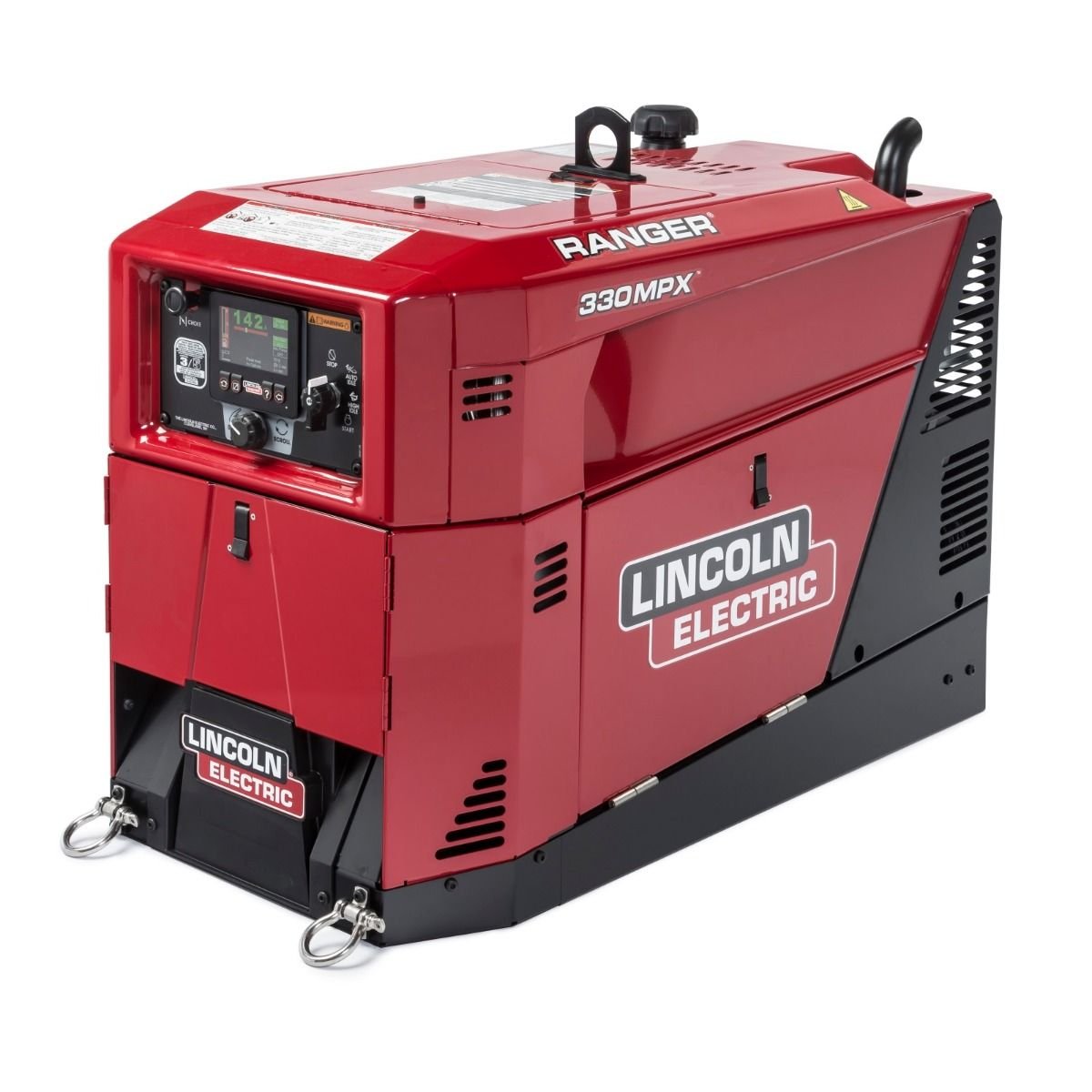

Lincoln Ranger 330 MPX EFI Welder/Generator w/ GFCI
$5,640.00
In Stock
In Stock
Wholesale Price
Request for Quotations
Description
Lincoln Ranger 330Mpx Efi Welder/Generator W/Gfci K4779-1 Specs
- Brand: Lincoln Electric
- Model: Ranger 330MPX EFI with GFCI
- MPN: K4779-1
- Processes: Stick (SMAW), TIG (GTAW), MIG (GMAW), Flux-Cored (FCAW), Gouging
- Engine: Kohler ECH740 EFI, 25 HP, Gasoline, V-Twin
- Welding Output: 330A @ 28V, 100% Duty Cycle
- Output Range: 20 – 330 Amps
- Auxiliary Power: 10,000W Peak / 9,000W Continuous (Clean Power <5% THD)
- Fuel Tank Capacity: 12 gallons (45.4 liters)
- Run Time: Up to 14–18 hours at 50% load
- Start Type: Electric Start
- Technologies: CrossLinc, ArcFX, Ready.Set.Weld, EFI
- GFCI Outlets: Yes – (2) 120V Duplex, OSHA Compliant
- Noise Level: 70.5 dB at 23 ft
- Dimensions: 29.9 in L × 21.5 in W × 42.4 in H
- Weight: 446 lbs (202.3 kg)
- Cooling System: Air-Cooled
- Google Product Category: 2920 (Welding Machines)
- Warranty: 3-Year Limited Lincoln Electric Warranty
Lincoln Ranger 330 MPX EFI Welder/Generator w/ GFCI Technical Specifications
| Brand | Lincoln Electric |
|---|---|
| Full Model Name/SKU | Ranger 330 MPX EFI (K4452-1) |
| Country of Origin | USA |
| Welding Process | Stick (SMAW), TIG (GTAW), MIG (GMAW), Flux-Cored (FCAW), Gouging |
| Inverter/Transformer Technology | Chopper Technology (CT) |
| Input Voltage | N/A (Engine Driven) |
| Output Current Range | 20 – 330 A |
| Duty Cycle | 100% @ 330 A |
| Open Circuit Voltage (OCV) | 60 VDC |
| Rated Input Capacity | 11,500 Watts (Peak) / 10,000 Watts (Continuous) |
| Power Factor & Efficiency | EFI (Electronic Fuel Injection) for Optimized Fuel Consumption |
| Wire Feed Speed Range | N/A |
| Protection Class | IP23 |
| Insulation Class | Class F |
| Cooling System | Air-Cooled (Kohler ECH740 EFI) |
| Dimensions | 660 x 508 x 914 mm |
| Net Weight | 203 kg |
| Smart Features | CrossLinc Technology, Digital User Interface, Auto-Stop/Start, Full GFCI |
| Standard Compliance | NEMA, CSA, OSHA Compliant |
| Primary Application | Structural Steel Construction, Industrial Fabrication, Maintenance |
