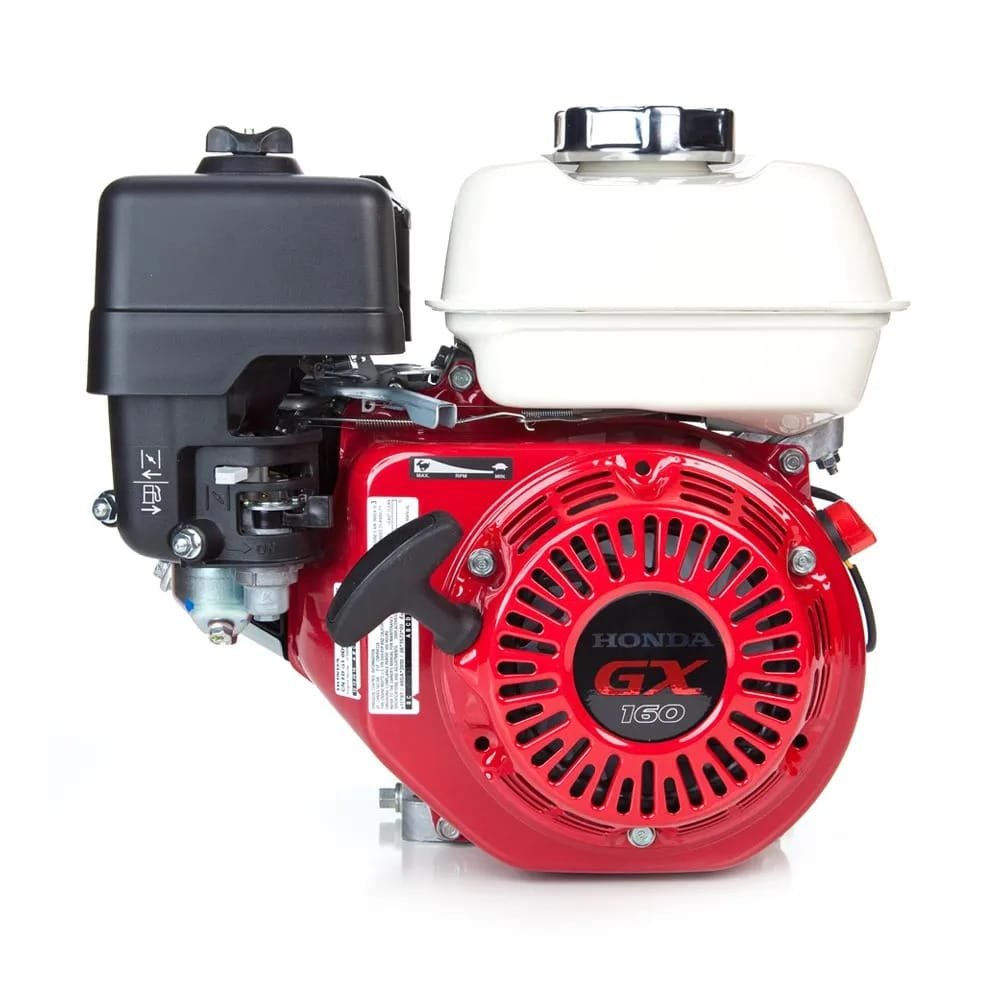

Honda GX160 – 5.5HP 163cc Horizontal Engine
$206.00
In Stock
In Stock
Wholesale Price
Request for Quotations
Description
Honda GX160 QX2 Horizontal Engine
Honda GX160 QX2 (GX160UT2QX2) horizontal OHV engine is 160cc and puts out 4.8 net HP. This Honda GX has a 3/4″ x 2-7/16″ crankshaft with a 3/16″ Keyway (Tapped 5/16-24).
| BRAND | Honda |
|---|---|
| MODEL NUMBER | GX160-QX2 |
| REPLACES MODELS | GX160 QX2, GX160QX2, GX160UT2QX2, GX160T1QX2, GX160UT1QX2, GX160-UT1QX2, GX160-UT1-QX2, GX160K1-QX2, GX160-K1QX2, GX160-K1-QX2, GX160K1-QWX2, GX160-QMX2. |
| WARRANTY | 3 Year Consumer & Commercial |
| SHIPPING WEIGHT | 41 |
| DISPLACEMENT | 163cc |
| STARTER TYPE | Recoil |
| CRANKSHAFT ORIENTATION | Horizontal |
| CRANKSHAFT TYPE | Straight |
| FUEL SYSTEM | Gasoline |
| GEAR REDUCTION | No |
| CRANKSHAFT DIMENSIONS | 3/4″ x 2-27/64″ |
| CRANKSHAFT DIAMETER | 3/4″ |
| CRANKSHAFT LENGTH | 2-27/64″ |
| CRANKSHAFT END TAPPED SIZE | 5/16 – 24 |
| CRANKSHAFT KEYWAY WIDTH | 3/16″ |
| CRANKSHAFT ROTATION DIRECTION (FROM PTO SIDE) | Counterclockwise |
| BEARING TYPE | Ball |
| CYLINDERS | 1 |
| CYLINDER BORE TYPE | Cast Iron |
| AIR CLEANER TYPE | Dual Element |
| FUEL PUMP | No |
| OIL COOLER | No |
| OIL CAPACITY | 20 |
| LOW OIL ALERT | No |
| LOW OIL SHUTDOWN | Yes |
| IGNITION SYSTEM | Transistorized Magneto |
| CARBURETOR TYPE | Float |
| CHOKE CONTROL | Manual |
| BOLT CIRCLE | 3 – 5/8 |
| PTO HEIGHT | 4 – 11/64 |
Honda GX160 Specs
| Brand | Honda |
| Full Model Code | GX160UT2 |
| Country of Origin | Thailand |
| Engine Series | Commercial GX |
| Engine Type | 4-Stroke, OHV, Single Cylinder |
| Displacement | 163 cc |
| Net Power Output | 4.8 HP (3.6 kW) @ 3600 RPM |
| Net Torque | 10.3 Nm @ 2500 RPM |
| Bore x Stroke | 68.0 x 45.0 mm |
| Compression Ratio | 9.0:1 |
| Cooling System | Forced Air |
| Ignition System | Transistorized Magneto |
| Starting System | Recoil Start |
| Fuel Tank Capacity | 3.1 L |
| Fuel Consumption | 1.4 L/h |
| Oil Capacity & Type | 0.58 L (SAE 10W-30) |
| PTO Shaft Type | 3/4 inch Keyed Straight |
| Dry Weight | 15.1 kg |
| Dimensions | 312x362x346 mm |
| Application | Commercial lawn and garden equipment, construction and industrial equipment. |
