Honda GX340 – 11HP 337cc Horizontal Electric Start
$476.00
In Stock
In Stock
Wholesale Price
Request for Quotations
Description

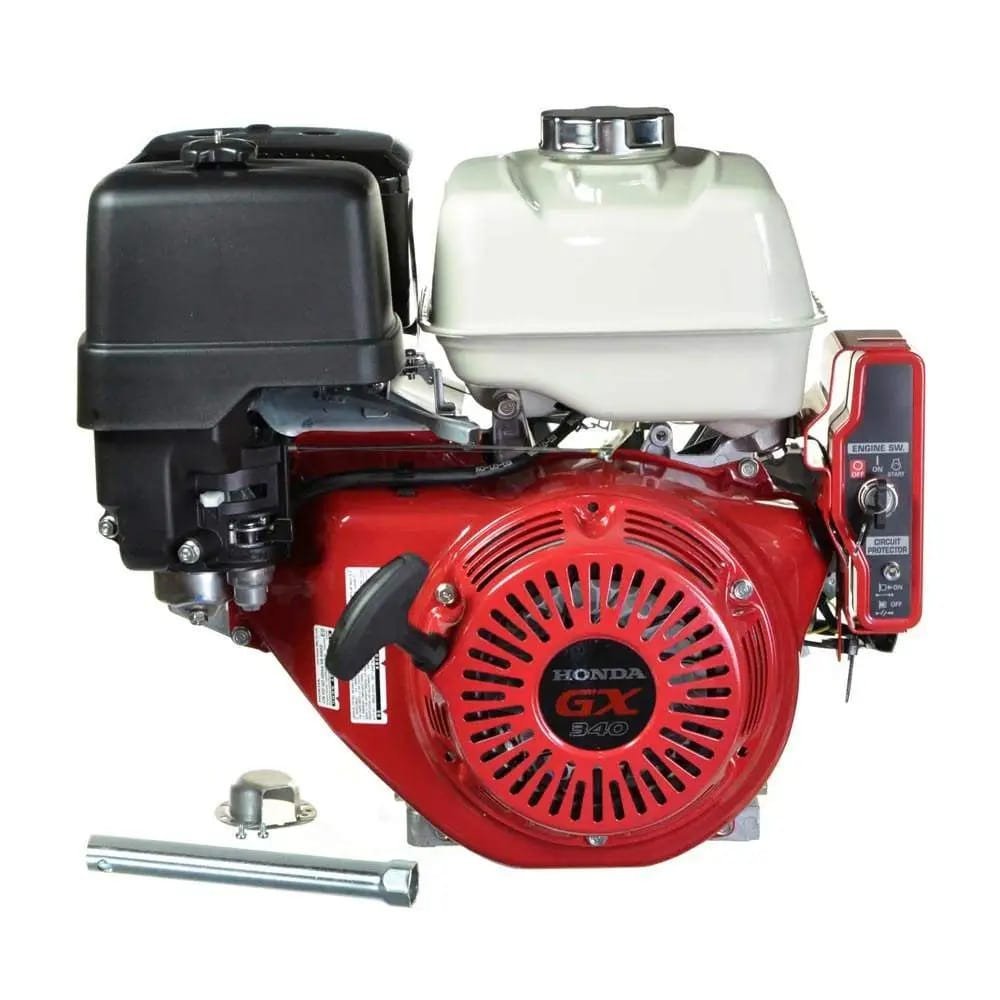

Honda GX340 QAE2 Horizontal Engine
The Honda GX340 QAE2 is a 337cc, air-cooled, 4-stroke, horizontal-shaft engine that delivers 11 horsepower. It is commonly used in equipment like pressure washers, generators, and water pumps. Known for its reliability, fuel efficiency, and easy maintenance, the GX340 QAE2 provides consistent power for a wide range of commercial and industrial applications.
| BRAND | Honda |
|---|---|
| MODEL NUMBER | GX340-QAE2 |
| WARRANTY | 3 Year Consumer & Commercial |
| SHIPPING WEIGHT | 86 |
| DISPLACEMENT | 389cc |
| STARTER TYPE | Electric & Recoil |
| CRANKSHAFT ORIENTATION | Horizontal |
| CRANKSHAFT TYPE | Straight |
| FUEL SYSTEM | Gasoline |
| GEAR REDUCTION | No |
| CRANKSHAFT DIMENSIONS | 1″ x 3-31/64″ |
| CRANKSHAFT LENGTH | 3-31/64″ |
| CRANKSHAFT ROTATION DIRECTION (FROM PTO SIDE) | Counterclockwise |
| BEARING TYPE | Ball |
| CYLINDERS | 1 |
| CYLINDER BORE TYPE | Cast Iron |
| AIR CLEANER TYPE | Dual Element |
| FUEL PUMP | No |
| OIL COOLER | No |
| OIL CAPACITY | 1.16 qt |
| LOW OIL ALERT | Yes |
| IGNITION SYSTEM | Digital CDI with Variable Timing |
| CARBURETOR TYPE | Float |
| CHOKE CONTROL | Manual |
| PTO HEIGHT | 5 – 1/4 |
Honda GX690 V-Twin - 688cc Horizontal Electric Start Specs
| Brand | Honda |
| Full Model Code | GX690RH |
| Country of Origin | Japan |
| Engine Series/Family | GX V-Twin Series |
| Engine Type | Air-cooled 4-stroke 90° V-twin OHV |
| Displacement | 688 cc |
| Net Power Output | 22.1 HP (16.5 kW) @ 3,600 rpm |
| Max. Net Torque | 48.3 Nm (35.6 lbs-ft) @ 2,500 rpm |
| Bore x Stroke | 78 x 72 mm |
| Compression Ratio | 9.3:1 |
| Cooling System | Forced Air |
| Ignition System | Digital CDI |
| Starting System | Electric Start |
| Fuel Tank Capacity | External Tank |
| Fuel Consumption | 6.7 L/h @ 3,600 rpm |
| Oil Capacity & Grade | 1.9 L (SAE 10W-30) |
| PTO Shaft Rotation | Counterclockwise |
| Dry Weight | 44.6 kg (98.3 lbs) |
| Dimensions | 429 x 410 x 438 mm |
| Application | Industrial generators and wood chippers. |
