Honda GX35 Mini – 4-Stroke 1.5HP Trimmers
$152.00
In Stock
In Stock
Wholesale Price
Request for Quotations
Description

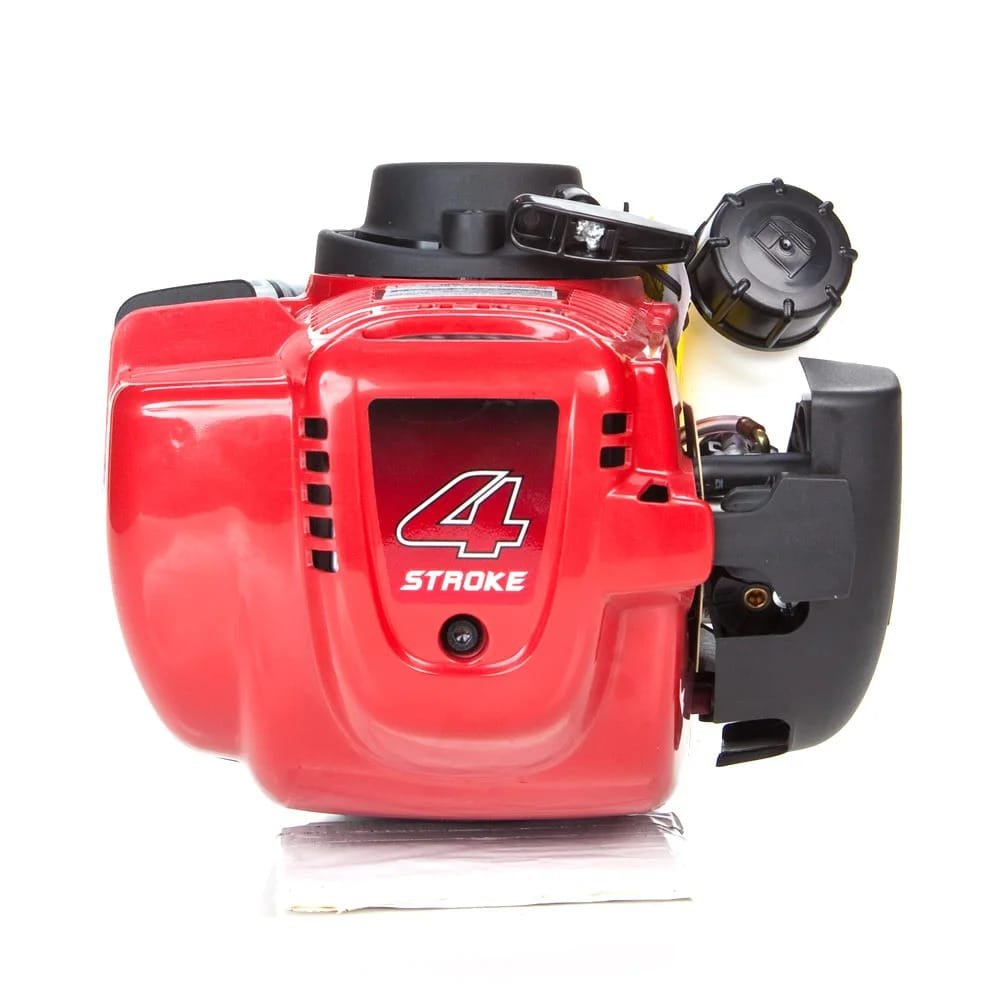

Honda GX35 S3 Horizontal Engine
Honda GX35 S3 (GX35NTS3) mini 4-stroke OHC horizontal engine is 35cc and puts out 1.3 net HP. Honda Mini 4-Stroke engines are ultra lightweight but still efficiently deliver a surprising amount of quiet power.
| BRAND | Honda |
|---|---|
| MODEL NUMBER | GX35-S3 |
| WARRANTY | 2 Years |
| SHIPPING WEIGHT | 11 |
| DISPLACEMENT | 35.8cc |
| STARTER TYPE | Recoil |
| CRANKSHAFT ORIENTATION | Horizontal |
| CRANKSHAFT TYPE | NA – Clutch Attached |
| FUEL SYSTEM | Gasoline |
| GEAR REDUCTION | No |
| CRANKSHAFT DIAMETER | N/A |
| CRANKSHAFT LENGTH | N/A |
| CRANKSHAFT END TAPPED SIZE | N/A |
| CRANKSHAFT KEYWAY WIDTH | None |
| CRANKSHAFT ROTATION DIRECTION (FROM PTO SIDE) | Counterclockwise |
| CYLINDERS | 1 |
| CYLINDER BORE TYPE | Aluminum Alloy |
| AIR CLEANER TYPE | Foam Element |
| FUEL PUMP | No |
| OIL COOLER | No |
| OIL CAPACITY | 3.4 |
| LOW OIL ALERT | No |
| LOW OIL SHUTDOWN | No |
| IGNITION SYSTEM | Transistorized Magneto |
| CARBURETOR TYPE | Diaphragm |
| CHOKE CONTROL | Manual |
| MAX RPM | 7000 |
| BOLT CIRCLE | None |
Honda GX630 V-Twin - 688cc Horizontal Electric Start Specs
| Brand | Honda |
| Full Model Code | GX630RH |
| Country of Origin | Japan |
| Engine Series/Family | GX V-Twin Series |
| Engine Type | Air-cooled 4-stroke 90° V-twin OHV |
| Displacement | 688 cc |
| Net Power Output | 20.8 HP (15.5 kW) @ 3,600 rpm |
| Max. Net Torque | 48.3 Nm (35.6 lbs-ft) @ 2,500 rpm |
| Bore x Stroke | 78 x 72 mm |
| Compression Ratio | 9.3:1 |
| Cooling System | Forced Air |
| Ignition System | Digital CDI |
| Starting System | Electric Start |
| Fuel Tank Capacity | External Tank |
| Fuel Consumption | 6.0 L/h @ 3,600 rpm |
| Oil Capacity & Grade | 1.9 L (SAE 10W-30) |
| PTO Shaft Rotation | Counterclockwise |
| Dry Weight | 44.4 kg (97.9 lbs) |
| Dimensions | 405 x 410 x 438 mm |
| Application | Commercial mowers and industrial generators. |
