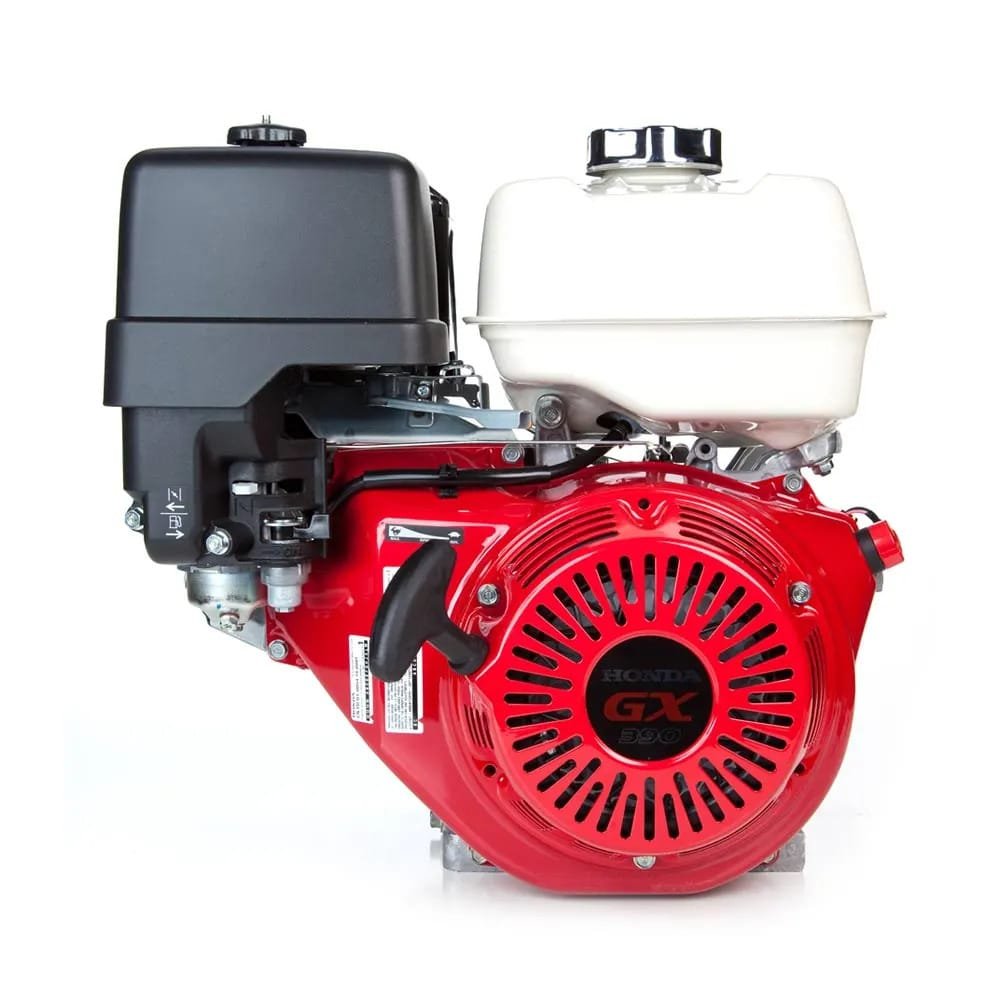

Honda GX390 – 13HP 389cc Horizontal Engine
$371.00
In Stock
In Stock
Wholesale Price
Request for Quotations
Description
Honda GX390 QA2 Horizontal Engine
Honda GX390 QA2 (GX390UT2QA2) horizontal OHV engine is 390cc and puts out 11.7 net HP. This Honda GX has a 1″ x 3-31/64″ crankshaft. The engine has a recoil starter, a silent muffler with a spark arrestor and deflector plus an oil alert system.
| BRAND | Honda |
|---|---|
| MODEL NUMBER | GX390-QA2 |
| REPLACES MODELS | GX390U1QA2, GX390UT1 QA2, GX390UT1-QA2, GX390K1-QA2, GX390UT2QA2, GX390UT2QA2, GX390K1QA2 |
| WARRANTY | 3 Year Consumer & Commercial |
| SHIPPING WEIGHT | 78 |
| DISPLACEMENT | 389cc |
| STARTER TYPE | Recoil |
| CRANKSHAFT ORIENTATION | Horizontal |
| CRANKSHAFT TYPE | Straight |
| FUEL SYSTEM | Gasoline |
| GEAR REDUCTION | No |
| CRANKSHAFT DIMENSIONS | 1″ x 3-31/64″ |
| CRANKSHAFT LENGTH | 3-31/64″ |
| CRANKSHAFT END TAPPED SIZE | 7/16 – 20 |
| CRANKSHAFT KEYWAY WIDTH | 1/4″ |
| CRANKSHAFT ROTATION DIRECTION (FROM PTO SIDE) | Counterclockwise |
| CYLINDERS | 1 |
| CYLINDER BORE TYPE | Cast Iron |
| AIR CLEANER TYPE | Dual Element |
| FUEL PUMP | No |
| OIL COOLER | No |
| OIL CAPACITY | 38 |
| LOW OIL ALERT | No |
| LOW OIL SHUTDOWN | Yes |
| IGNITION SYSTEM | Digital CDI with Variable Timing |
| CARBURETOR TYPE | Float |
| CHOKE CONTROL | Manual |
| BOLT CIRCLE | 5,6-1/2 |
| PTO HEIGHT | 5 – 1/4 |
Honda GX390 Specs
| Brand | Honda |
| Full Model Code | GX390UT2 |
| Country of Origin | Thailand |
| Engine Series | Commercial GX |
| Engine Type | 4-Stroke, OHV, Single Cylinder |
| Displacement | 389 cc |
| Net Power Output | 11.7 HP (8.7 kW) @ 3600 RPM |
| Net Torque | 26.4 Nm @ 2500 RPM |
| Bore x Stroke | 88.0 x 64.0 mm |
| Compression Ratio | 8.2:1 |
| Cooling System | Forced Air |
| Ignition System | Digital CDI |
| Starting System | Recoil Start |
| Fuel Tank Capacity | 6.1 L |
| Fuel Consumption | 3.5 L/h |
| Oil Capacity & Type | 1.1 L (SAE 10W-30) |
| PTO Shaft Type | 1 inch Keyed Straight |
| Dry Weight | 31.7 kg |
| Dimensions | 406x460x448 mm |
| Application | Commercial pressure washers, construction equipment, and tillers. |
