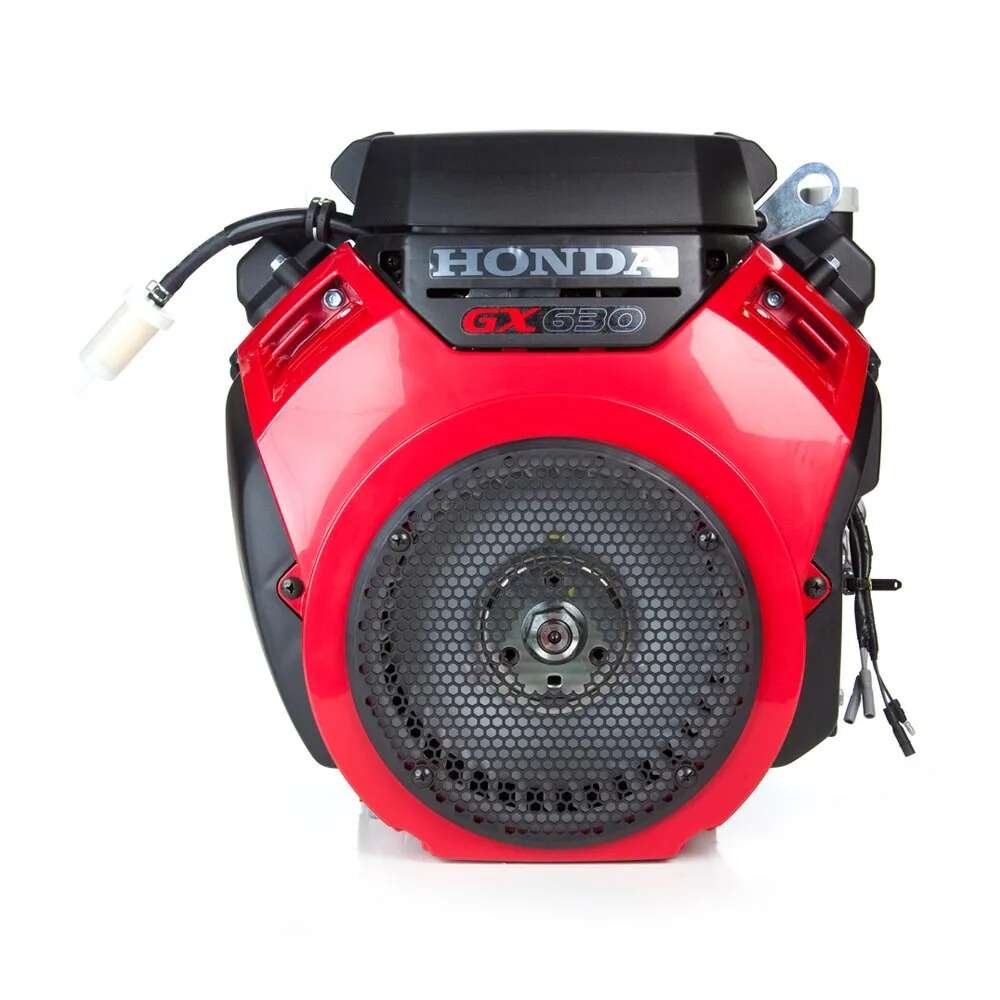

Honda GX630 V-Twin – 688cc Horizontal Electric Start
$809.00
In Stock
In Stock
Wholesale Price
Request for Quotations
Description
Honda GX630 QAF Horizontal Engine
The Honda GX630 QAF is a 627cc, air-cooled, horizontal-shaft engine designed for a variety of industrial and commercial applications. Known for its reliability and durability, it features a V-twin design, offering smooth operation and high torque. The engine is equipped with a semi-dry sump system, a large-capacity oil filter, and a large fuel tank for extended operation.
| BRAND | Honda |
|---|---|
| MODEL NUMBER | GX630-QAF |
| REPLACES MODELS | GX620K1-QAF1, GX620-QAF1 |
| WARRANTY | 3 Year Consumer & Commercial |
| SHIPPING WEIGHT | 110 |
| DISPLACEMENT | 688cc |
| STARTER TYPE | Electric |
| CRANKSHAFT ORIENTATION | Horizontal |
| CRANKSHAFT TYPE | Straight |
| FUEL SYSTEM | Gasoline |
| GEAR REDUCTION | No |
| CRANKSHAFT DIMENSIONS | 1″ x 2-29/32″ |
| CRANKSHAFT LENGTH | 2-29/32″ |
| CRANKSHAFT END TAPPED SIZE | 3/8 – 24 |
| CRANKSHAFT KEYWAY WIDTH | 1/4″ |
| CRANKSHAFT ROTATION DIRECTION (FROM PTO SIDE) | Counterclockwise |
| CYLINDERS | 2 |
| CYLINDER BORE TYPE | Integrated |
| AIR CLEANER TYPE | Dual Element |
| FUEL PUMP | Yes |
| OIL COOLER | No |
| OIL CAPACITY | 68 |
| LOW OIL ALERT | Yes |
| LOW OIL SHUTDOWN | No |
| IGNITION SYSTEM | Digital CDI with Variable Ignition Timing |
| CARBURETOR TYPE | Two Barrel Float Valve, Internal Vent |
| CHOKE CONTROL | Remote (Wire) |
| BOLT CIRCLE | 5,6-1/2,7-3/4 |
| PTO HEIGHT | 5 – 1/4 |
Honda GX240 - 8HP 240cc Horizontal Electric Start Specs
| Brand | Honda |
| Full Model Code | GX240UT2 |
| Country of Origin | Thailand |
| Engine Series/Family | GX Series (Commercial Grade) |
| Engine Type | Air-cooled 4-stroke OHV cylinder |
| Displacement | 242 cc |
| Net Power Output | 7.9 HP (5.9 kW) @ 3,600 rpm |
| Max. Net Torque | 18.3 Nm (13.5 lbs-ft) @ 2,500 rpm |
| Bore x Stroke | 77 x 58 mm |
| Compression Ratio | 8.2:1 |
| Cooling System | Forced Air |
| Ignition System | Digital CDI |
| Starting System | Electric and Recoil Start |
| Fuel Tank Capacity | 5.3 Liters |
| Fuel Consumption | 2.1 L/h @ 3,600 rpm |
| Oil Capacity & Grade | 1.1 L (SAE 10W-30) |
| PTO Shaft Rotation | Counterclockwise |
| Dry Weight | 25.2 kg (55.6 lbs) |
| Dimensions | 380 x 429 x 422 mm |
| Application | Construction equipment and heavy-duty pumps. |
