Honda GX100 – 3HP 99cc Horizontal Engine
$257.00
In Stock
Optimize your rammers and compaction equipment with the 3HP 99cc Honda GX100 Engine, specifically engineered for heavy-duty horizontal applications in high-vibration construction environments.
- Power: 3.0 Horsepower 99cc OHV
- Series: Professional Grade Rammer Engine
- Durability: High Vibration Resistance Build
- Protection: Specialized Cast Iron Sleeve
- Warranty: Three Year Commercial Warranty
In Stock
2-Day Shipping
All orders are processed and dispatched within 2 days
Description

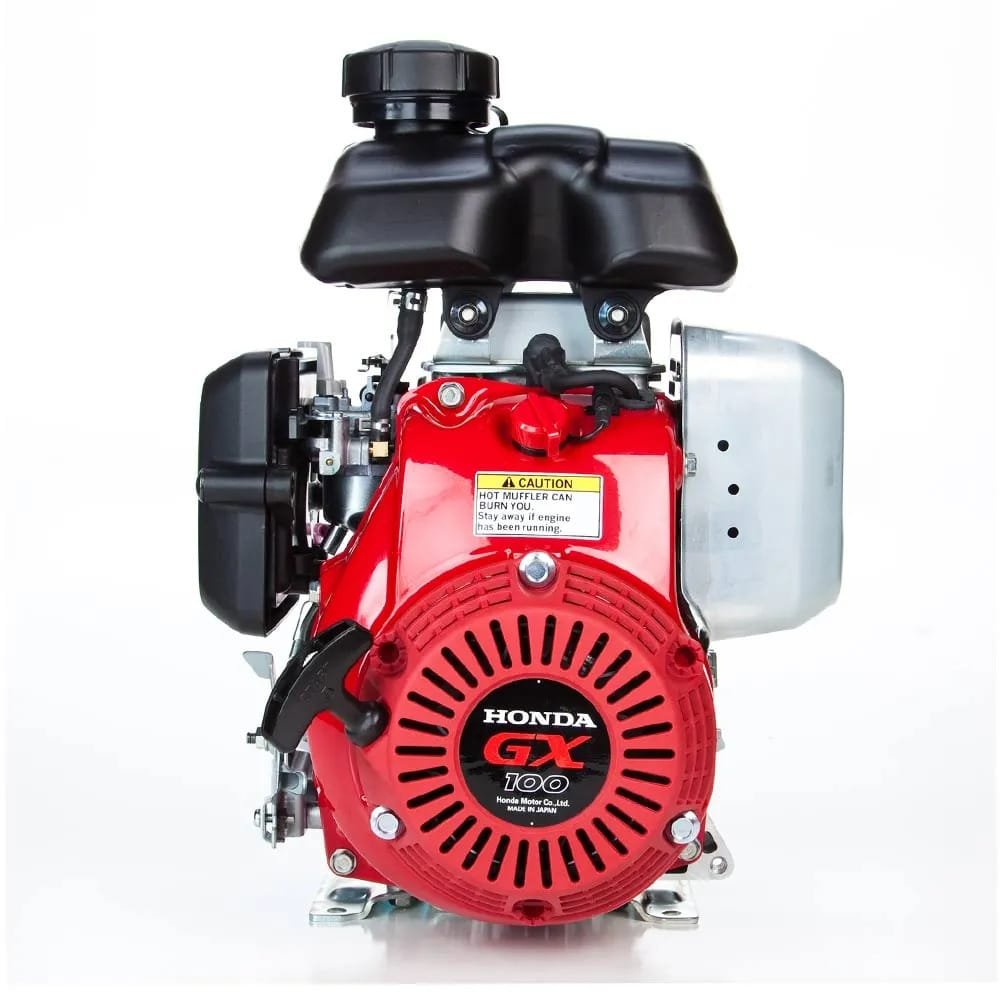

Honda GX100 QA2 Horizontal Engine
The Honda GX100 QA2 is a 98cc, air-cooled, 4-stroke, horizontal-shaft engine designed for light-duty applications. Producing 3.0 horsepower, it is commonly used in equipment like small pumps, generators, and garden tools.
| BRAND | Honda |
|---|---|
| MODEL NUMBER | GX100-QA2 |
| WARRANTY | 3 Year Consumer & Commercial |
| SHIPPING WEIGHT | 30 |
| DISPLACEMENT | 98cc |
| STARTER TYPE | Recoil |
| CRANKSHAFT ORIENTATION | Horizontal |
| CRANKSHAFT TYPE | Straight |
| FUEL SYSTEM | Gasoline |
| GEAR REDUCTION | No |
| CRANKSHAFT DIMENSIONS | 5/8″ x 2.30″ |
| CRANKSHAFT DIAMETER | 5/8″ |
| CRANKSHAFT LENGTH | 2.30″ |
| CRANKSHAFT END TAPPED SIZE | 1/4 – 28 |
| CRANKSHAFT KEYWAY WIDTH | 3/16″ |
| CRANKSHAFT ROTATION DIRECTION (FROM PTO SIDE) | Counterclockwise |
| CYLINDERS | 1 |
| CYLINDER BORE TYPE | Cast Iron |
| AIR CLEANER TYPE | Dual Element |
| FUEL PUMP | No |
| OIL COOLER | No |
| OIL CAPACITY | 13.5 |
| LOW OIL ALERT | No |
| LOW OIL SHUTDOWN | No |
| IGNITION SYSTEM | Transistorized Magneto |
| CARBURETOR TYPE | Float |
| CHOKE CONTROL | Manual |
| BOLT CIRCLE | 3 – 5/8 |
| NOTES | Engine Notes: |
| PTO HEIGHT | 4 – 11/64 |
Honda GX35 Mini - 4-Stroke 1.5HP Trimmers Specs
| Brand | Honda |
| Full Model Code | GX35T |
| Country of Origin | Thailand |
| Engine Series/Family | Mini 4-Stroke |
| Engine Type | Air-cooled 4-stroke OHC |
| Displacement | 35.8 cc |
| Net Power Output | 1.3 HP (1.0 kW) @ 7,000 rpm |
| Max. Net Torque | 1.6 Nm (1.2 lbs-ft) @ 5,500 rpm |
| Bore x Stroke | 39 x 30 mm |
| Compression Ratio | 8.0:1 |
| Cooling System | Forced Air |
| Ignition System | Transistorized Magneto |
| Starting System | Recoil Starter |
| Fuel Tank Capacity | 0.63 Liters |
| Fuel Consumption | 0.71 L/h @ 7,000 rpm |
| Oil Capacity & Grade | 0.10 L (SAE 10W-30) |
| PTO Shaft Rotation | Counterclockwise |
| Dry Weight | 3.33 kg (7.3 lbs) |
| Dimensions | 198 x 234 x 240 mm |
| Application | Brushcutters and handheld power tools. |
