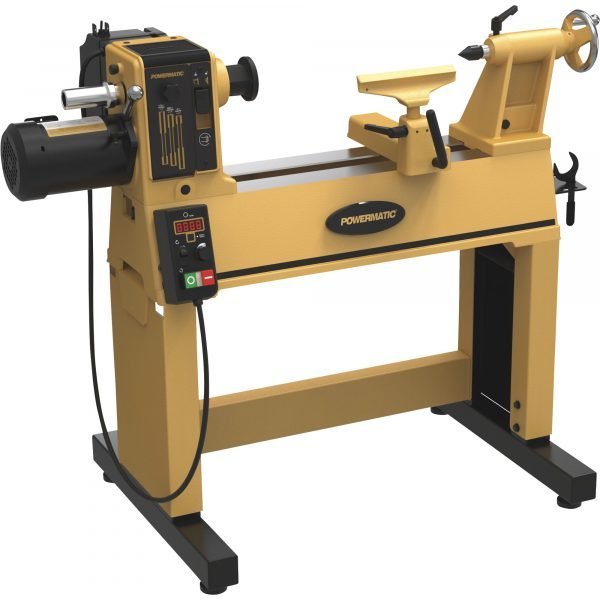

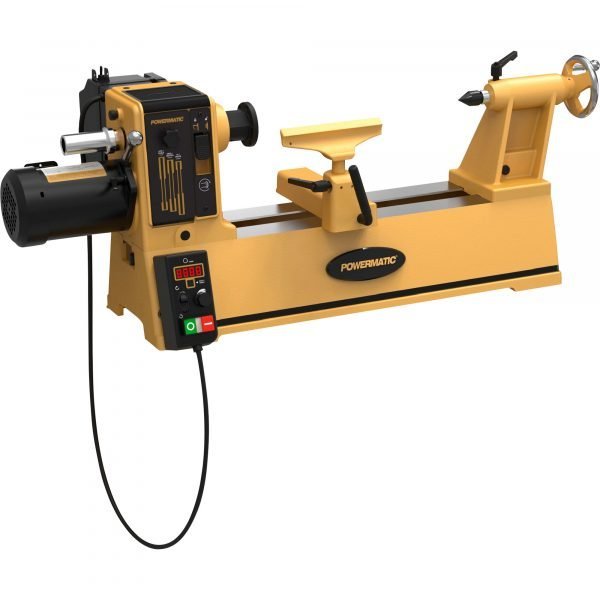

Powermatic PM2014 Bench Wood Lathe – 1 HP, 1 PH
The Powermatic PM2014 Bench Wood Lathe is a powerful and versatile turning machine, offering a substantial 20-inch swing over the bed and powered by a reliable 1 HP motor. This Benchtop model is perfect for woodturners who require high capacity but need the flexibility to mount the lathe on a custom bench or existing cabinet. Ideal for bowl turning and mid-sized projects. Choose the power, large swing, and versatile mounting options of the Powermatic PM2014 Bench Wood Lathe for high-capacity turning.
Description
As a market leader in woodturning, Powermatic is proud to offer the powerful PM2014 model bench wood lathe. Electric motor only requires a 115V single phase input while providing a consistent torque with 1 HP, 230 Volt and 3-phase output using an inverter. Magnetic control box displays both digital speed and indexing and can be relocated for convenience and safety. 24 positive locking indexing position, displayed on the repositionable magnetic control box, simplifies the indexing process. Sliding headstock and removable tailstock make outboard turning easy. Cast iron bed reduces motor vibration for decreased noise and added precision. Variable speeds from as low 15 RPM to as high as 3600 RPM. With constant monitoring of the motor the inverter keeps torque consistent. Lathe easily disassembles for better portability. Acme threads on tail stock for smoother operation and longevity. Includes 8in. tool rest with 1in. post. Attached tool caddy allows convenient access to centers, wrenches and accessories. Banjo features a non-marring, pinch style clamp for solid tool rest placement. Chrome trimmed hand wheels are ergonomic for a comfortable feel.
What’s Included
- (1) Powermatic 1 HP, 115 Volt, 1-Phase Bench Wood Lathe, Model# PM2014
| Item# | 98706 |
| Brand | Powermatic |
| Manufacturer’s Warranty | 5 year limited warranty |
| Ship Weight | 205.7 lbs |
| Product Type | Lathes |
| Distance Between Centers (in.) | 19 1/4 |
| Swing (in.) | 14 1/4 |
| Speeds (qty.) | Variable |
| Speed Range (RPM) | 13–3600 |
| Horsepower | 1 HP |
| Volts | 230 |
| Product Weight | 205.7 lb |
| Dimensions L x W x H (in.) | 34 1/4 x 18 15/16 x 22 7/8 |
Powermatic PM2014 Bench Wood Lathe Technical Specifications
| Brand | Powermatic |
|---|---|
| Full Model SKU | PM2014 (98706) |
| Country of Origin | Taiwan |
| Motor Power | 1 HP (230V 3-phase output) |
| Power Requirements | 115V Single Phase Input (Inverter) |
| Spindle Speed | 13 – 3,600 RPM (Variable) |
| Max. Width of Cut / Rip Capacity | 14 1/4 in. Swing |
| Table Dimensions | 19 1/4 in. Distance Between Centers |
| Table Material | Cast Iron Bed |
| Safety Features | Magnetic Control Box, 24 Locking Index Positions, Inverter Driven Torque |
| Overall Dimensions | 34 1/4 x 18 15/16 x 22 7/8 in. |
| Net Weight | 93 kg |
| Application | Professional Woodturning, Portable High-torque Turning |
