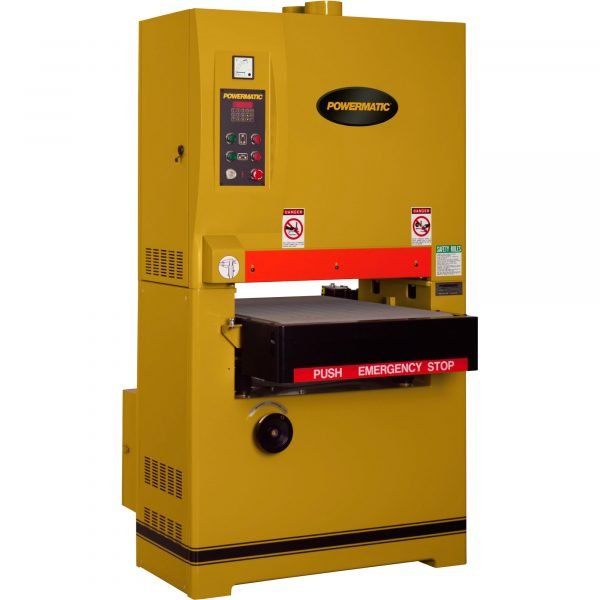

Powermatic WB-25 25 In. Wide Belt Sander – 15 HP, 3 PH
In Stock
$7,525.00
In Stock
The Powermatic WB-25 25 In. Wide Belt Sander is a high-volume finishing machine, capable of sanding stock up to 25 inches wide. Driven by a powerful 15 HP motor and configured for continuous 3-Phase (3 PH) operation, this sander provides the consistent torque and speed necessary for industrial production, delivering perfectly flat and smooth panels quickly. Essential for commercial cabinet, furniture, and millwork shops. Invest in the reliability, power, and efficiency of the Powermatic WB-25 Wide Belt Sander for high-quality panel finishing.
Description
The Powermatic 25in. Wide Belt Sander delivers the utmost performance in measurement and sanding, creating a flawless finish every time. This sander has centralized controls which allow the user to access all the needed buttons on one simple panel for more convenience. The variable speed feed belt allows the user to accurately dial in the exact feed speed to best suit each project and work environment. This sander also features a special digital readout control to show the exact thickness of a finished piece, or to allow the user to preset exactly what thickness they would prefer the finished piece to be. This sander also includes a unique measuring device, the auto thicknesser, that captures the piece of wood to give the user an exact measurement of the starting thickness. The air-eye system controls the oscillation for the 25in. x 75in. sanding belt, which prevents the belt from running off the end of the drums and uses the sanding surface in a more uniform manner to prevent sanding lines from being left on the work piece. This unit’s 3-motor motor system delivers maximum performance. The first motor allows for maximum horsepower to feed the drive drums. The second, smaller motor, directly powers the VS feed belt and the third, smaller motor, powers the feed table up and down to the desired thickness automatically and with ease. For safety, the WB-25 Sander has a disc brake, which slows the machine quickly and stops it instantly in the event of an emergency.
What’s Included
- (1) Powermatic 25in. Wide Belt Sander, 15 HP, 3 PH, 230/460V with Digital Readout, Model# WB-25
| Item# | 84635 |
| Brand | Powermatic |
| Manufacturer’s Warranty | 5 year limited warranty |
| Ship Weight | 1650.0 lbs |
| Amps | 50/25 |
| Volts | 230/460 |
| Horsepower | 15 HP |
| Motor Phase | 3 |
| Drum Length | 25 in |
| Dust Collection Port Size | 5 in |
| Number of Dust Collection Ports | 3 |
| Cordless | No |
| Charger Included | No |
| Sander Type | Edge and Belt |
| Product Weight | 1,650 lb |
| Dimensions L x W x H (in.) | 53 x 45 x 72 |
Powermatic WB-25 25 In. Wide Belt Sander - 15 HP, 3 PH Technical Specifications
| Brand | Powermatic |
|---|---|
| Full Model SKU | WB-25 |
| Country of Origin | Taiwan |
| Motor Power | 15 HP |
| Power Requirements | 230/460V, 3 Phase |
| Spindle/Blade Speed | 2,000 FPM |
| Blade/Cutterhead Diameter | 25 in. Belt Width |
| Max. Width of Cut / Rip Capacity | 25 in. |
| Safety Features | Emergency Stop, Air Tracking System, Overload Protection |
| Overall Dimensions | 50 x 42 x 65 in. |
| Net Weight | 1,150 kg |
| Standard Compliance | CSA / UL |
| Application | Production-Scale Surface Sanding |
