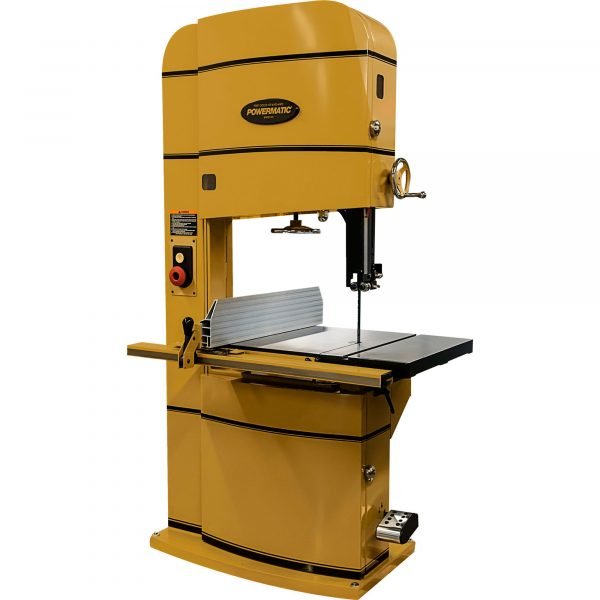

Powermatic PM2415B 24 In. Band Saw – 5 HP, T-Square Accu-Fence
Description
The Powermatic 24in. Band Saw features the Exclusive Powermatic T-Square style Accu-Fence that maximizes accuracy and safety. It features complete adjustability for aligning to blade and squaring to table. Sturdy cast iron table and trunnion assembly offer maximum rigidity for large work pieces. The positive locking cam offers pressure adjustment. The oversized side plate can be used in the horizontal or vertical position. The solid steel resaw post provides optimum rigidity. The blade tension release with electrical interlock prevents the bandsaw from starting when the blade is de-tensioned (patent pending). The heavy-duty upper wheel support and tracking mechanism allow smooth operation. Solid cast iron upper and lower wheels create the momentum needed for heavy resaw.
What’s Included
- (1) Powermatic 24in. Band Saw, 5 HP, 230 Volts, T-Square Accu-Fence, Model# PM2415B
| Item# | 84643 |
| Brand | Powermatic |
| Manufacturer’s Warranty | 5 year limited warranty |
| Ship Weight | 1073.0 lbs |
| Horsepower | 5 HP |
| Volts | 230 |
| Max. Cutting Capacity | 4,800 SFPM |
| Product Weight | 1073 lb |
| Dimensions L x W x H (in.) | 45 x 33.25 x 87.5 in |
Powermatic PM2415B 24 In. Band Saw - 5 HP, T-Square Accu-Fence Technical Specifications
| Brand | Powermatic |
|---|---|
| Full Model SKU | PM2415B |
| Country of Origin | Taiwan |
| Motor Power | 5 HP |
| Power Requirements | 230V, 1 Phase |
| Spindle/Blade Speed | 3,000 SFPM |
| Blade/Cutterhead Diameter | 24 in. Wheel |
| Max. Depth of Cut | 15 in. Resaw Capacity |
| Table Dimensions | 24 x 24 in. |
| Table Material | Cast Iron |
| Fence System Type | T-Square Accu-Fence |
| Dust Port Diameter | 4 in. (Dual) |
| Safety Features | Foot Brake, Magnetic Switch |
| Net Weight | 430 kg |
| Standard Compliance | CSA |
| Application | Professional Grade Resawing and Contouring |
