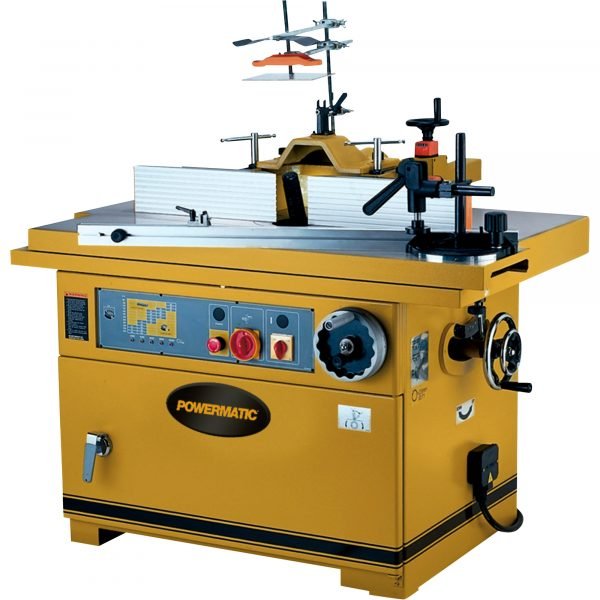

Powermatic TS29 Tilt/Slide Shaper – 7.5 HP, 3PH
Description
The Powermatic Tilt/Slide Shaper is ready to tackle any job. A new fence design includes dual digital readouts, micrometer adjustments and independently adjustable fence halves for fast, accurate setups. The full guard includes 2 stock hold-downs and a see-through cover that flips up for quick tool changes. Dual dust collection ports, in the guard and under the table, ensure a clear work area and improved finish. An extra-large quill assembly with a full 7in. stroke has 3 oversize bearings and the ability to tilt, adding versatility and insuring long, trouble-free performance. A big 71/2 HP motor drives the spindle forward and reverse with 5 speeds. The massive sliding table is fully supported by 6 tapered precision bearings through a full 4ft. stroke. On the table is a large miter head complete with a stock hold-down clamp and a 56in. miter fence with flip stop. The large table can easily accommodate a stock feeder for long production runs.
What’s Included
- (1) Powermatic Tilt/Slide Shaper, 7.5 HP, 3 PH, 230/460V, Model# TS29
| Item# | 84793 |
| Brand | Powermatic |
| Manufacturer’s Warranty | 5 year limited warranty |
| Ship Weight | 1100.0 lbs |
| Spindle Size | 7 in |
| Max. Speed | 10,000 |
| Motor Phase | 230 / 460 |
| Amps | 30 / 15 |
| Dimensions L x W x H (in.) | 51 x 44 x 53 |
Powermatic TS29 Tilt/Slide Shaper - 7.5 HP, 3PH Technical Specifications
| Brand | Powermatic |
|---|---|
| Full Model SKU | TS29 (84793) |
| Country of Origin | Taiwan |
| Motor Power | 7.5 HP |
| Power Requirements | 230/460V, 30/15 Amps |
| Spindle/Blade Speed | 10,000 RPM (5 Speeds) |
| Blade/Cutterhead Diameter | 7 in. Spindle Stroke |
| Table Material | Sliding Table w/ Tapered Precision Bearings |
| Fence System Type | Dual Digital Readout Micrometer Fence |
| Dust Port Diameter | Dual Ports (Guard and Under-table) |
| Safety Features | Full Guard w/ Hold-downs, 4ft Sliding Table Stroke, Spindle Tilt |
| Overall Dimensions | 51 x 44 x 53 in. |
| Net Weight | 499 kg |
| Application | Industrial Production Shaping, Custom Moldings |
