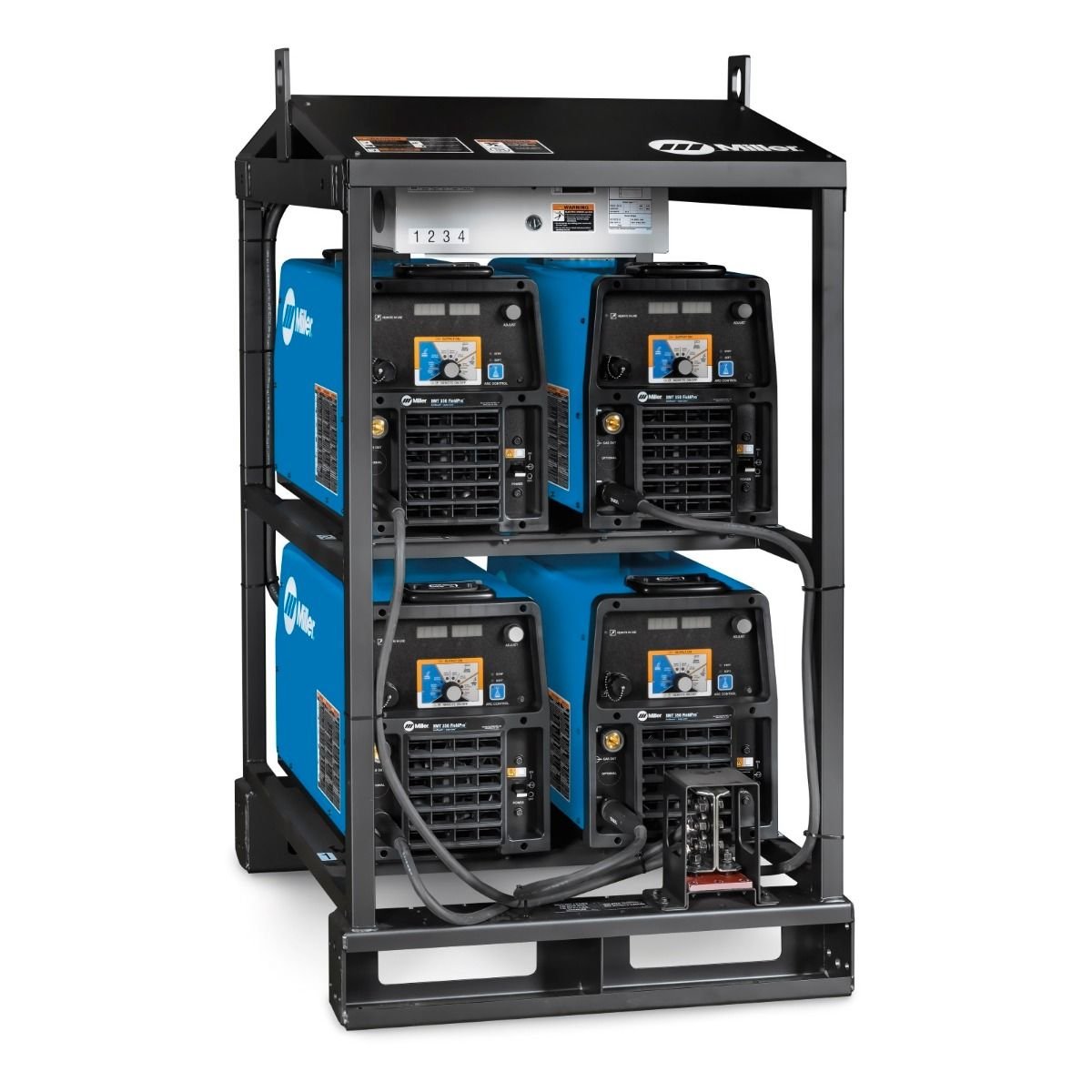

Miller XMT 350 FieldPro ArcReach 4-Pack Rack System
$24,216.00
In Stock
In Stock
Wholesale Price
Request for Quotations
Description
Miller Xmt 350 Fieldpro Arcreach 4-Pack Rack 907739 Specs
- Brand: Miller
- Model: XMT 350 FieldPro ArcReach 4-Pack Rack
- MPN: 907739
- Processes: Stick (SMAW), MIG (GMAW), Flux-Cored (FCAW), DC TIG (GTAW)
- Included Units: 4x XMT 350 FieldPro Welders
- Input Voltage: 208–575V Auto-Line, 3-Phase, 50/60 Hz
- Output Range: 14 – 38 V, up to 350A per unit
- Rated Output: 350A @ 34V, 100% Duty Cycle
- Duty Cycle: 100% per unit
- ArcReach Technology: Yes – remote control enabled
- Rack Features: Lifting eyes, fork pockets, 115V outlets, fused protection
- Cooling System: Fan-On-Demand per unit
- Enclosure Rating: IP23
- Total Weight: Approx. 562 lbs (255 kg)
- Dimensions: 41 in L × 28.5 in W × 40 in H
- GTIN: 715959674503
- Google Product Category: 2920 (Welding Machines)
- Warranty: 3-Year Miller True Blue Warranty
Miller XMT 350 FieldPro ArcReach 4-Pack Rack System Technical Specifications
| Brand | Miller |
|---|---|
| Full Model Name/SKU | XMT 350 FieldPro 4-Pack Rack (907739) |
| Country of Origin | USA |
| Welding Process | Stick (SMAW), TIG (GTAW), MIG (GMAW), Flux-Cored (FCAW) |
| Inverter/Transformer Technology | Multi-Inverter Multi-Process System |
| Input Voltage | 230/460 V (Three Phase Only) |
| Output Current Range | 5 – 425 A (Per Arc) |
| Duty Cycle | 60% @ 350 A (Per Arc) |
| Open Circuit Voltage (OCV) | 75 VDC |
| Rated Input Capacity | 56.8 kVA (Total System Max) |
| Power Factor & Efficiency | Autoline Technology for Variable Input Voltage |
| Wire Feed Speed Range | N/A (Supports ArcReach Feeders) |
| Protection Class | IP23 (Inverters) / NEMA 3R (Rack) |
| Insulation Class | Class H |
| Cooling System | Fan-On-Demand (Air-Cooled) |
| Dimensions | 1500 x 812 x 812 mm |
| Net Weight | 261 kg |
| Smart Features | ArcReach Technology, Common Ground Connection, Single Primary Power Drop |
| Standard Compliance | CSA, CE, IEC 60974-1 |
| Primary Application | Shipyards, Power Plants, Multi-Operator Heavy Construction |
