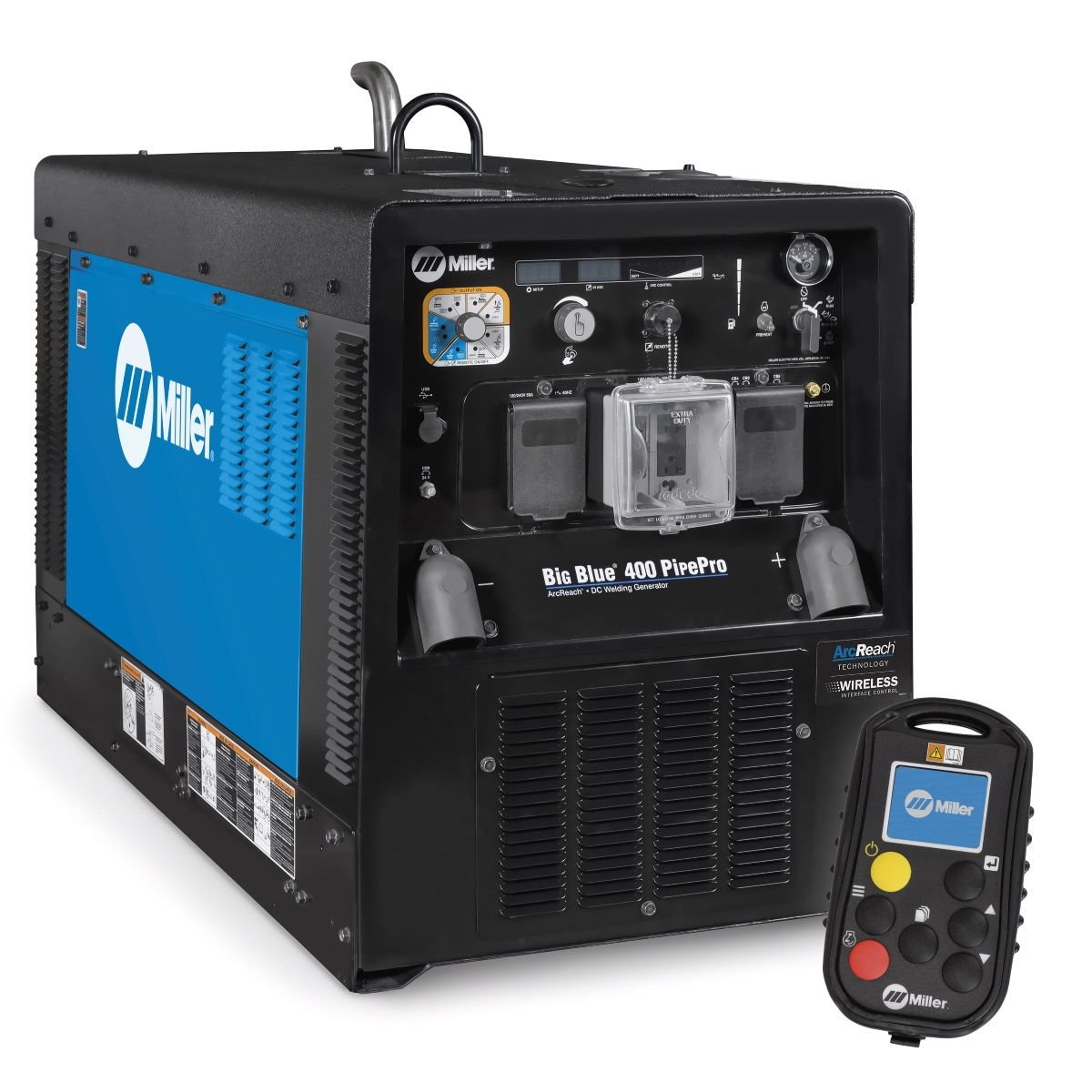

Miller Big Blue 400 PipePro Mitsubishi Welder/Generator (WIC)
$16,926.00
In Stock
In Stock
Wholesale Price
Request for Quotations
Description
Miller Big Blue 400 Pipepro Mitsubishi Welder/Generator W/Wic 907805001 Specs
- Brand: Miller
- Model: Big Blue 400 PipePro with WIC
- MPN: 907805001
- Processes: Stick (SMAW), TIG (GTAW), MIG (GMAW), Flux-Cored (FCAW), Gouging
- Engine: Mitsubishi S4L2, 24.8 HP, Tier 4 Final, 4-cylinder Diesel
- Welding Output: 400A @ 36V, 100% Duty Cycle
- Output Range: 20 – 400 Amps
- Auxiliary Power: 12,000W Peak / 10,000W Continuous (Clean Power <5% THD)
- Wireless Interface Control (WIC): Included
- Technologies: ArcReach, Auto-Speed, Excel Power
- Start Type: Electric Start
- Fuel Tank Capacity: 24 gallons (90.8 liters)
- Run Time: Up to 20+ hours at 25% load
- Cooling System: Liquid-Cooled
- Noise Level: 74.5 dB @ 23 ft
- Dimensions: 59.8 in L × 26 in W × 41.5 in H
- Weight: 1,320 lbs (598.7 kg)
- Outlets: GFCI-protected 120V and 240V receptacles
- Google Product Category: 2920 (Welding Machines)
- Warranty: 3-Year Limited Manufacturer Warranty
Miller Big Blue 400 PipePro Mitsubishi Welder/Generator (WIC) Technical Specifications
| Brand | Miller |
|---|---|
| Full Model Name/SKU | Big Blue 400 PipePro Mitsubishi (907703) |
| Country of Origin | USA |
| Welding Process | Stick (SMAW), TIG (GTAW), MIG (GMAW), Flux-Cored (FCAW), RMD, Pulsed MIG |
| Inverter/Transformer Technology | Line-X Inverter Technology |
| Input Voltage | N/A (Engine Driven) |
| Output Current Range | 20 – 400 A |
| Duty Cycle | 100% @ 400 A |
| Open Circuit Voltage (OCV) | 85 VDC |
| Rated Input Capacity | 12,000 Watts (Peak) / 10,000 Watts (Continuous) |
| Power Factor & Efficiency | Multi-Process Pipe Optimized Efficiency |
| Wire Feed Speed Range | N/A |
| Protection Class | IP23 |
| Insulation Class | Class H |
| Cooling System | Liquid-Cooled (Mitsubishi S4L2) |
| Dimensions | 813 x 724 x 1422 mm |
| Net Weight | 449 kg |
| Smart Features | WIC (Wireless Interface Control), ArcReach, Pipe-Specific Programs (RMD) |
| Standard Compliance | CSA, EPA Tier 4 Final |
| Primary Application | Pipeline Welding, Field Fabrication, Refinery Maintenance |
