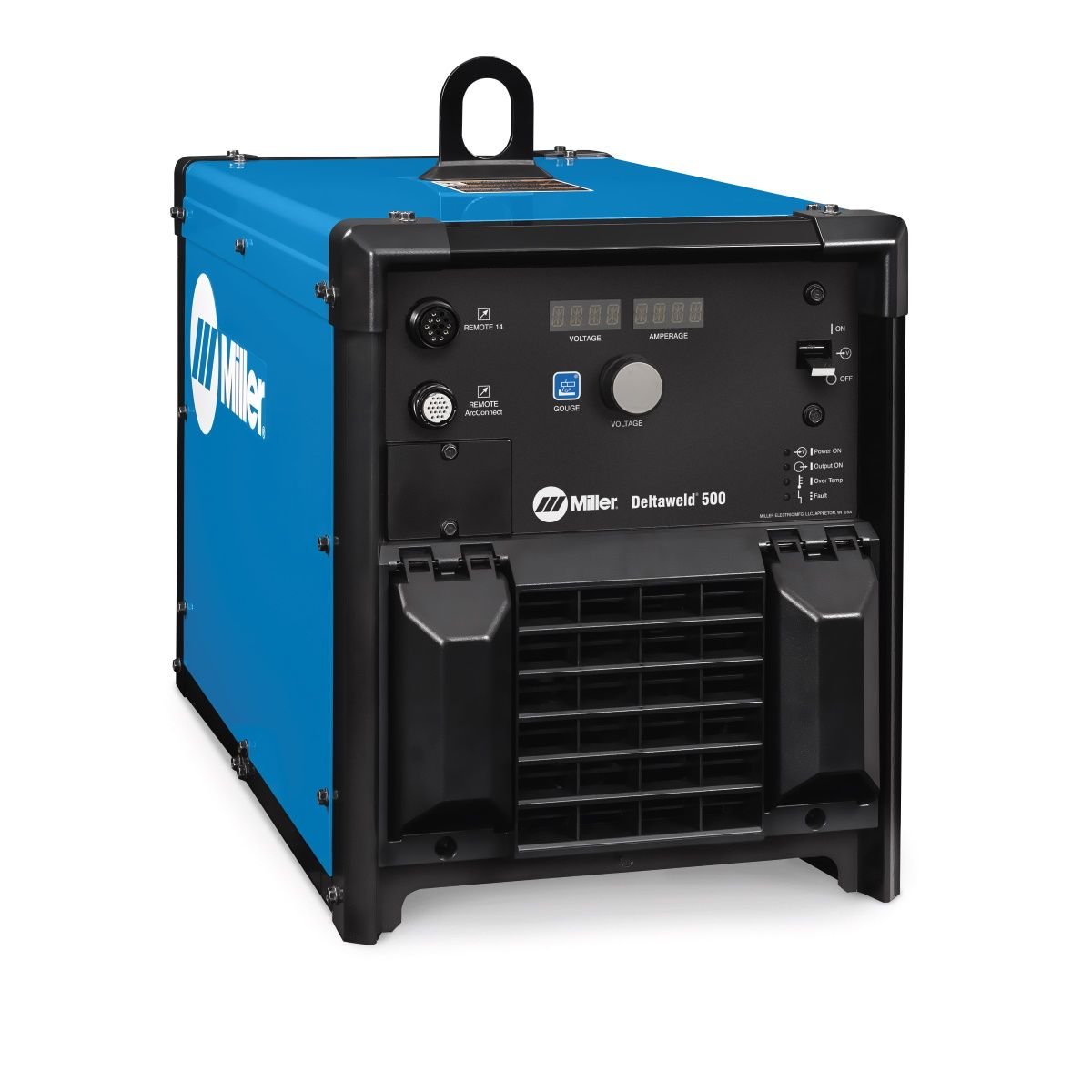

Miller 907786001 Deltaweld 500 Power Source w/ 14-Pin Connector (575V)
$4,656.00
In Stock
In Stock
Wholesale Price
Request for Quotations
Description
Miller Deltaweld 500 Power Source W/14-Pin 575V 907786001 Specs
- Brand: Miller
- Model: Deltaweld 500 Power Source w/14-Pin
- SKU: 907786001
- MPN: 907786001
- Processes: MIG (GMAW), Flux-Cored (FCAW), Pulsed MIG (with optional accessories)
- Input Power: 575V, 3-Phase
- Rated Output: 500A at 44V, 100% Duty Cycle
- Output Range: 14 – 44V
- Amperage Range: 20 – 500 Amps
- Cooling: Fan-On-Demand
- Connection Interface: 14-Pin Control Connector (legacy feeder compatible)
- Digital Communication: ArcConnect capable (when upgraded)
- Enclosure Rating: IP23
- Dimensions: 31.2 in x 17.3 in x 39.7 in (L x W x H)
- Weight: 217 lb (98.4 kg)
- Certifications: CSA, NRTL/C
- Warranty: 3-Year Miller True Blue Warranty
- Compatible Feeders: S-74, S-64, 20 Series (14-pin interface), Intellx series (via ArcConnect upgrade)
- Google Product Category: 2920 (Welding Machines)
- Country of Origin: USA
- Applications: Heavy fabrication, structural welding, manufacturing, repair and maintenance
Miller Deltaweld 500 Power Source w/ 14-Pin Connector (575V) Technical Specifications
| Brand | Miller |
|---|---|
| Full Model Name/SKU | Deltaweld 500 Power Source 575V (907786001) |
| Country of Origin | USA |
| Welding Process | MIG (GMAW), Pulsed MIG (GMAW-P), Flux-Cored (FCAW) |
| Inverter/Transformer Technology | Three-Phase Inverter |
| Input Voltage | 575 V (Three-Phase Only) |
| Output Current Range | 20 – 600 A |
| Duty Cycle | 100% @ 500 A |
| Open Circuit Voltage (OCV) | 85 VDC |
| Rated Input Capacity | 23.2 kVA |
| Power Factor & Efficiency | High-Voltage Industrial Efficiency Optimization |
| Wire Feed Speed Range | N/A (Power Source Only) |
| Protection Class | IP23 |
| Insulation Class | Class H |
| Cooling System | Fan-On-Demand |
| Dimensions | 714 x 424 x 714 mm |
| Net Weight | 66 kg |
| Smart Features | 14-Pin Analog Feeder Connector, ArcConnect Digital Port, Wind Tunnel Technology |
| Standard Compliance | CSA, CE, IEC 60974-1 |
| Primary Application | Canadian Industrial Sector, Mining, High-Voltage Manufacturing Facilities |
