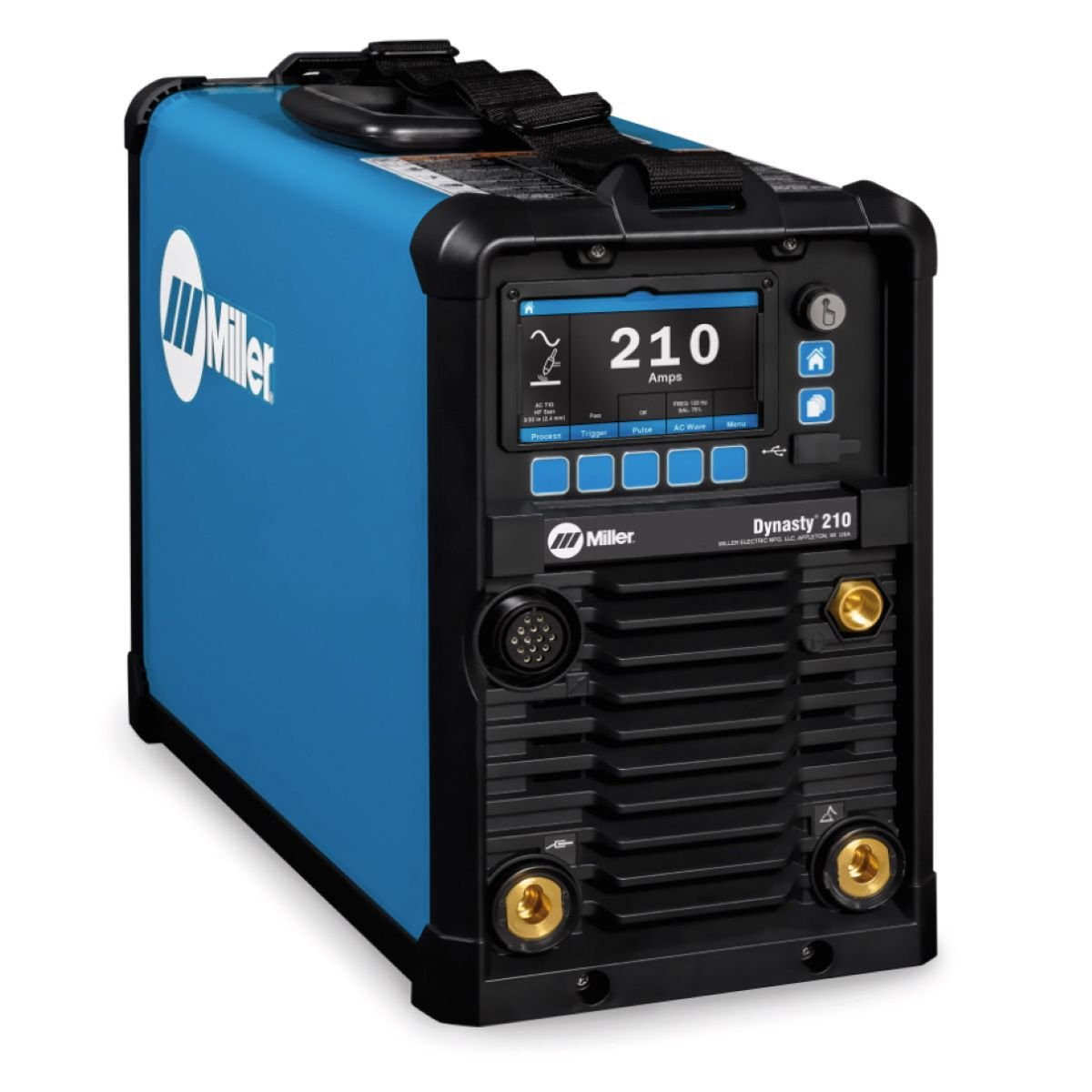

Miller 907816001 Dynasty 210 AC/DC TIG Welder w/ CPS (Auto-Line 120-480V)
$3,882.00
In Stock
Miller 907816001 Dynasty 210 is an industrial AC/DC TIG welder featuring a Cooler Power Supply (CPS). This unit is built for shop-wide versatility.
- Integrated CPS allows for direct water cooler connection, making it easy to build a high-duty cycle TIG station for production work
- Auto-Line technology allows for connection to 120V through 480V power sources with no manual linking required
- Brand New power source featuring CPS technology and Miller’s professional-grade warranty
In Stock
2-Day Shipping
All orders are processed and dispatched within 2 days
Description
Miller Dynasty 210 Tig Welder Auto-Line 120-480V With Cps 907816001 Specs
- Brand: Miller
- Model: Dynasty 210 TIG Welder with CPS
- MPN: 907816001
- Welding Processes: TIG (GTAW), Stick (SMAW)
- Input Voltage: 120V–480V, 1-Phase or 3-Phase
- Amperage Range (TIG): 1–210 Amps
- Amperage Range (Stick): 20–175 Amps
- Duty Cycle (TIG): 60% @ 210A
- Duty Cycle (Stick): 30% @ 175A
- Weight: 50 lbs (22.7 kg)
- Dimensions: 13.6 in H × 7.1 in W × 17 in D
- Power Source: Auto-Line, Accepts 120V–480V
- CPS: Integrated Cooler Power Supply
- Waveforms: Sine, Square, Soft Square, Triangular
- AC Frequency Control: 20–400 Hz
- AC Balance Control: Yes (Adjustable)
- HF Start: Yes
- Pulsed TIG: Yes
- Applications: Fabrication, Aerospace, Automotive, Shipbuilding, Pipe Welding
- Digital Display: Yes with Menu Navigation
- Cooling Options: Air or Water (via CPS)
- Warranty: 3-Year Miller True Blue Warranty
- Condition: New
- Google Product Category: 2920 (Welding Machines)
Lincoln Power MIG 140 MP Multi-Process Welder Technical Specifications
| Brand | Lincoln Electric |
|---|---|
| Full Model Name/SKU | Power MIG 140 MP (K4498-1) |
| Country of Origin | USA |
| Welding Process | MIG (GMAW), Flux-Cored (FCAW), Stick (SMAW), DC TIG (GTAW) |
| Inverter/Transformer Technology | IGBT Inverter |
| Input Voltage | 120 V (Single-Phase Only) |
| Output Current Range | 30 – 140 A |
| Duty Cycle | 60% @ 95 A |
| Open Circuit Voltage (OCV) | 76 VDC |
| Rated Input Capacity | 3.5 kVA |
| Power Factor & Efficiency | Compact Inverter Efficiency for Residential Power |
| Wire Feed Speed Range | 1.0 – 12.7 m/min (40 – 500 ipm) |
| Protection Class | IP21S |
| Insulation Class | Class H |
| Cooling System | Air-Cooled |
| Dimensions | 345 x 224 x 455 mm |
| Net Weight | 15.6 kg |
| Smart Features | Synergic Digital Interface, Spool Gun Ready, Lightweight Portable Chassis |
| Standard Compliance | CSA, IEC 60974-1 |
| Primary Application | Maintenance/Repair, DIY Projects, Light Fabrication, Farm/Ranch |
