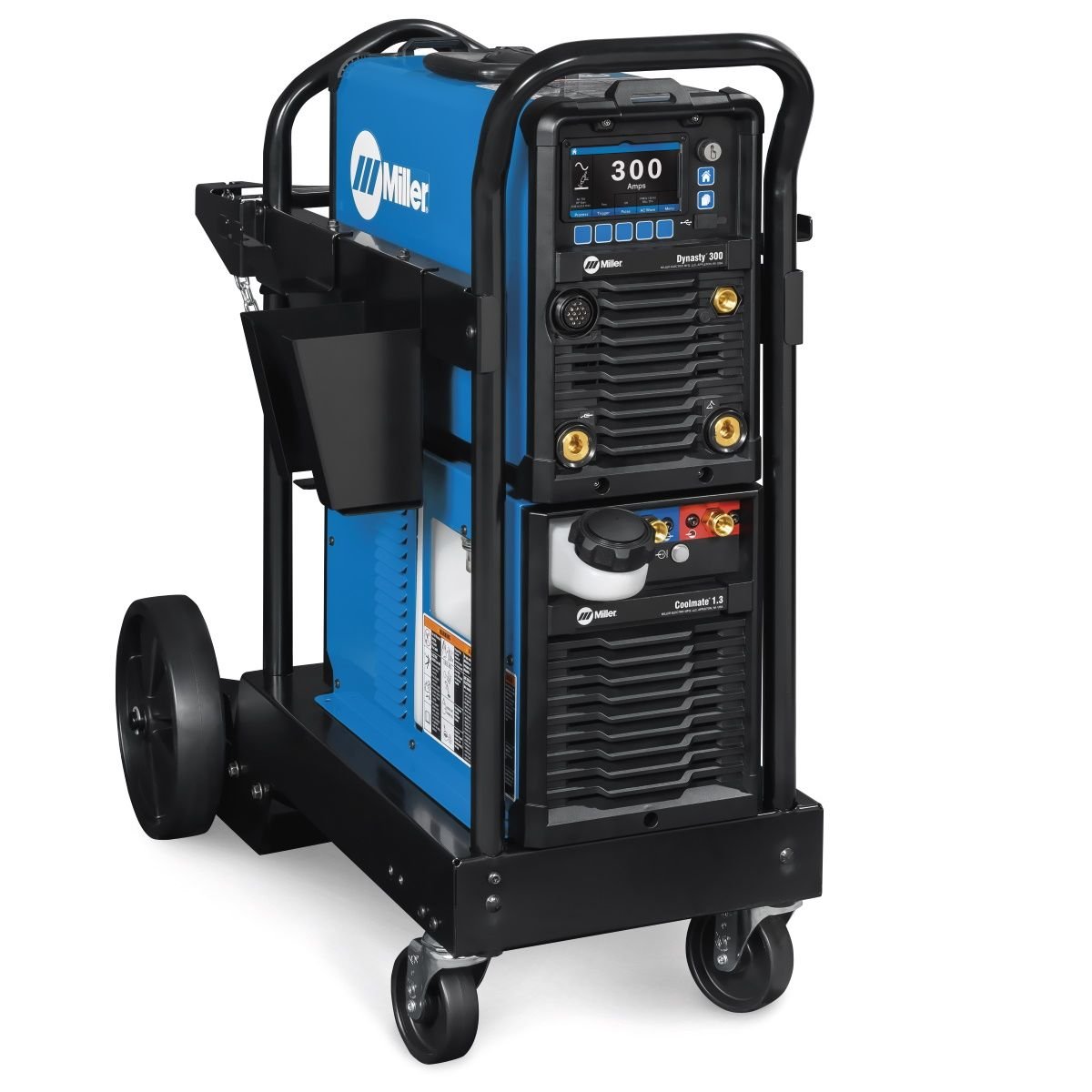

Miller 907818002 Dynasty 300 AC/DC TIG TigRunner Package w/ CPS
$7,182.00
In Stock
Miller 907818002 Dynasty 300 is an industrial AC/DC TIG TigRunner package with CPS. This mobile unit is designed for heavy-duty production.
- TigRunner configuration provides a mobile, integrated TIG station with power source, water cooler, and industrial cart
- Cooler Power Supply (CPS) simplifies shop setup by powering the cooler directly from the welder chassis
- Brand New TigRunner package featuring advanced AC/DC TIG performance and Miller’s industrial warranty
In Stock
2-Day Shipping
All orders are processed and dispatched within 2 days
Description
Miller Dynasty 300 Tigrunner Package With Cps 907818002 Specs
- Brand: Miller
- Model: Dynasty 300 TIGRunner Package with CPS
- MPN: 907818002
- Processes: AC/DC TIG (GTAW), Stick (SMAW)
- Input Power: 208–575V, 1/3 Phase, Auto-Line
- Amperage Range (TIG): 1–300 Amps
- Amperage Range (Stick): 5–250 Amps
- Duty Cycle: 60% @ 300A (TIG, 3-Phase)
- Weight: 52 lb (23.6 kg) – power source only
- Dimensions: 13.6 in H x 8.6 in W x 23.7 in D
- Included Accessories: Coolmate 3.5 Cooler, Running Gear with Cylinder Rack
- Start Method: HF Start, Lift-Arc
- Cooling System: Water-Cooled
- Waveforms: Sine, Triangle, Square, Soft Square
- Pulse Capable: Yes
- AC Balance: Adjustable
- AC Frequency: Adjustable 20–400 Hz
- Applications: Aerospace, Precision Fabrication, Manufacturing, Pipe Welding
- Technology: Auto-Line, Pro-Set, CPS
- Compliance: CSA, NEMA Rated
- Warranty: 3-Year Miller True Blue Warranty
- Condition: New
- Google Product Category: 2920 (Welding Machines)
Miller Deltaweld 500 Industrial MIGrunner w/ Dual Intellx Pro Feeders Technical Specifications
| Brand | Miller |
|---|---|
| Full Model Name/SKU | Deltaweld 500 MIGrunner Dual Intellx Pro (951820) |
| Country of Origin | USA |
| Welding Process | MIG (GMAW), Pulsed MIG (GMAW-P), Flux-Cored (FCAW) |
| Inverter/Transformer Technology | Three-Phase Inverter |
| Input Voltage | 230 / 460 V (Three-Phase) |
| Output Current Range | 20 – 600 A |
| Duty Cycle | 100% @ 500 A |
| Open Circuit Voltage (OCV) | 85 VDC |
| Rated Input Capacity | 23.2 kVA |
| Power Factor & Efficiency | 0.91 Power Factor / 86% Efficiency |
| Wire Feed Speed Range | 1.3 – 19.8 m/min (50 – 780 ipm) |
| Protection Class | IP23 |
| Insulation Class | Class H |
| Cooling System | Fan-On-Demand |
| Dimensions | 714 x 424 x 1000 mm (Total System Height) |
| Net Weight | 112 kg (Total System) |
| Smart Features | Dual Feeder Configuration, Intellx Pro (Accu-Pulse), EZ-Latch Running Gear, ArcConnect |
| Standard Compliance | CSA, CE, IEC 60974-1 |
| Primary Application | Heavy Industrial Production, Multi-Process Stations, General Fabrication |
