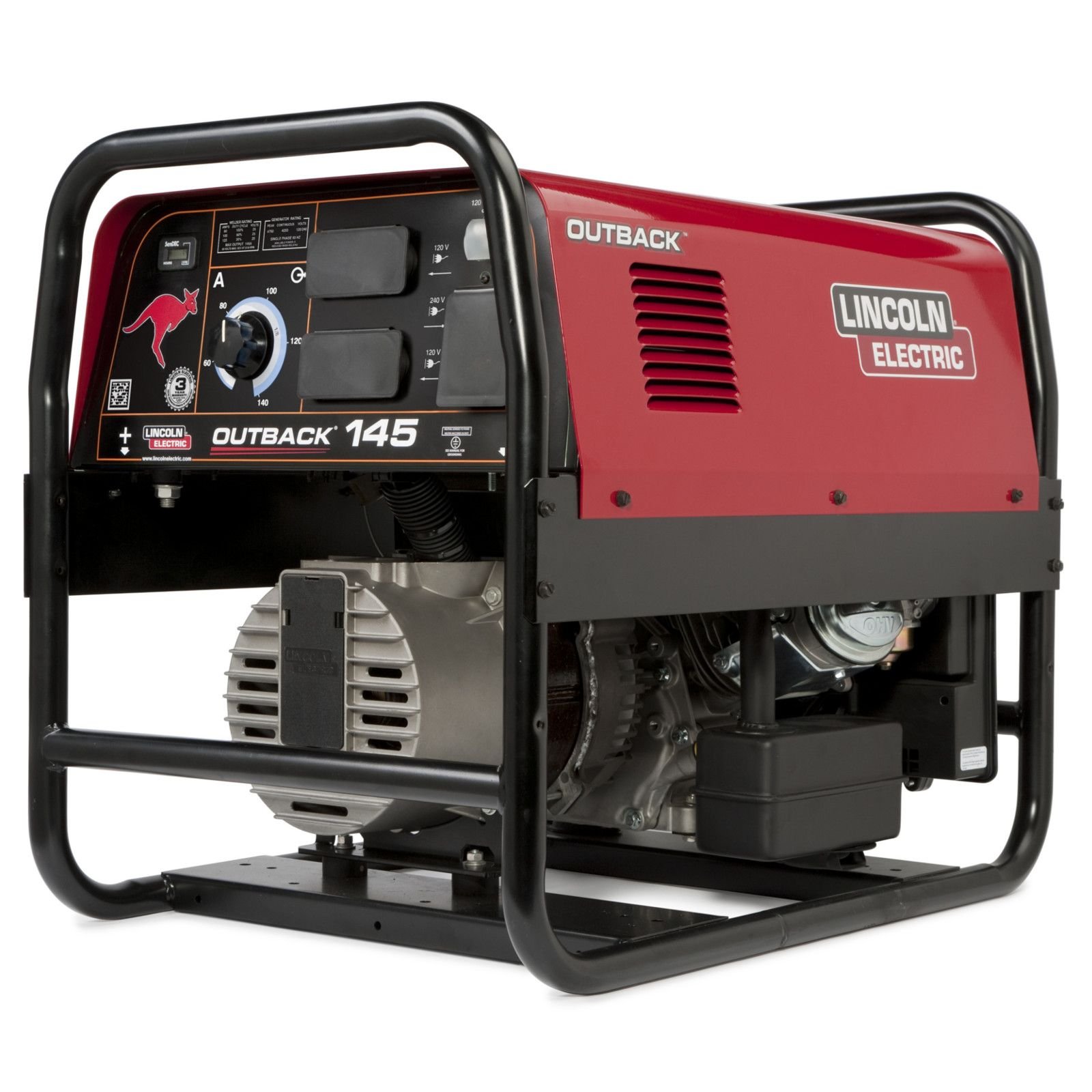

Lincoln Outback 145 Engine Welder Generator
$2,994.00
In Stock
Lincoln Outback 145 is a portable engine-driven welder generator optimized for outdoor service and emergency repair. Engineered for easy transport on farm and ranch job sites.
- Portable 145A DC welding output is perfect for light-to-medium stick welding tasks
- Integrated 4,750W generator provides ample power for field tools and lighting
- Brand New lightweight unit features a rugged frame and Lincoln 3-Year Warranty
In Stock
2-Day Shipping
All orders are processed and dispatched within 2 days
Description
Lincoln Outback 145 Engine Welder Generator K2707-2 Specs
- Brand: Lincoln Electric
- Model: Outback 145
- MPN: K2707-2
- Engine: Kohler CH395, 4-Cycle OHV, Gasoline
- Engine Power: 10.5 HP @ 3,600 RPM
- Fuel Type: Gasoline
- Fuel Tank Capacity: 6.8 gallons (25.7 liters)
- Welding Output: Up to 145 Amps DC
- Welding Process: Stick (SMAW)
- Electrode Size Supported: Up to 1/8 in. diameter
- Generator Output: 4,750W Peak / 4,250W Continuous
- Power Outlets: 120V Duplex and 240V AC
- Duty Cycle: 30% at 145 Amps
- Noise Level: Approx. 76 dB @ 23 ft
- Frame: Tubular steel with engine and alternator protection
- Dimensions: 25.6 in L × 21.5 in W × 21 in H
- Weight: Approx. 249 lbs (113 kg)
- GTIN: 015082658722
- Google Product Category: 2920 (Welding Machines)
- Warranty: 3-Year Lincoln Electric Limited Warranty
Lincoln Outback 145 Engine Welder Generator Technical Specifications
| Brand | Lincoln Electric |
|---|---|
| Full Model Name/SKU | Outback 145 (K2707-1) |
| Country of Origin | USA |
| Welding Process | Stick (SMAW) |
| Inverter/Transformer Technology | AC Generator / Transformer Weld Output |
| Input Voltage | N/A (Engine Driven) |
| Output Current Range | 50 – 145 A |
| Duty Cycle | 30% @ 145 A / 25V |
| Open Circuit Voltage (OCV) | 50 VAC |
| Rated Input Capacity | 4,750 Watts (Peak) / 4,250 Watts (Continuous) |
| Power Factor & Efficiency | Single-Phase AC Power Output |
| Wire Feed Speed Range | N/A |
| Protection Class | IP21 |
| Insulation Class | Class H |
| Cooling System | Air-Cooled (Kohler CH395) |
| Dimensions | 650 x 546 x 800 mm |
| Net Weight | 112 kg |
| Smart Features | Low Oil Shutdown, Rugged Tube Frame, Easy-access Control Panel |
| Standard Compliance | NEMA, CSA |
| Primary Application | Homeowners, Farm/Ranch, General Maintenance Repair |
