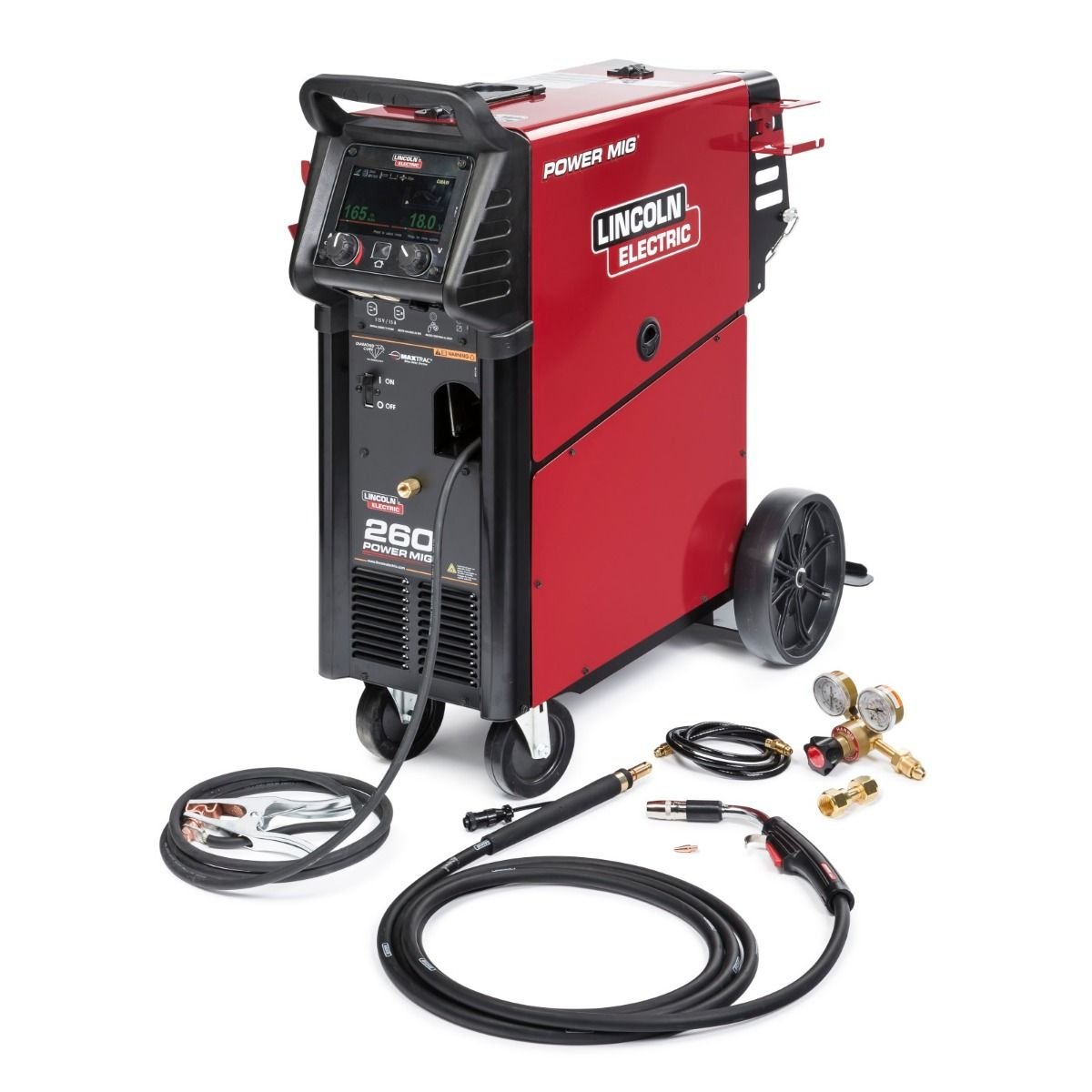

Lincoln Power MIG 260 260 Amp MIG Welder (208-575V Industrial)
$2,256.00
In Stock
In Stock
Wholesale Price
Request for Quotations
Description
Lincoln Power Mig 260 Welder 208-575V K3520-1 Specs
- Brand: Lincoln Electric
- Model: Power MIG 260
- MPN: K3520-1
- Processes: MIG (GMAW), Flux-Cored (FCAW), Pulse MIG
- Input Voltage: 208–575V, 1-Phase
- Output Range: 30–300 Amps
- Wire Feed Speed: 50–700 IPM
- Max Material Thickness: Up to 1/2 in.
- Display: 7″ Color TFT with intuitive graphical interface
- Weld Modes: Standard MIG, Synergic MIG, Pulse-on-Pulse, Spot, Stitch, and Tack
- Compatible Materials: Aluminum, Stainless Steel, Carbon Steel
- Dimensions: 29 in L × 12.6 in W × 26.3 in H
- Weight: 89 lbs (40.3 kg)
- Included Accessories: Magnum PRO MIG Gun, Gas Hose, Work Cable & Clamp, Input Cable
- Google Product Category: 2920 (Welding Machines)
- Warranty: 3-Year Manufacturer Warranty
Lincoln Power MIG 260 260 Amp MIG Welder (208-575V Industrial) Technical Specifications
| Brand | Lincoln Electric |
|---|---|
| Full Model Name/SKU | Power MIG 260 (K4522-1) |
| Country of Origin | USA |
| Welding Process | MIG (GMAW), Pulsed MIG, Flux-Cored (FCAW) |
| Inverter/Transformer Technology | Chopper Technology (CT) |
| Input Voltage | 208/230/460/575 V (Auto-Line Multi-Voltage) |
| Output Current Range | 30 – 300 A |
| Duty Cycle | 40% @ 250 A / 26.5V |
| Open Circuit Voltage (OCV) | 67 VDC |
| Rated Input Capacity | 12.5 kVA @ 250A |
| Power Factor & Efficiency | Advanced High-Efficiency Digital Control |
| Wire Feed Speed Range | 1.3 – 17.8 m/min (50 – 700 ipm) |
| Protection Class | IP21S |
| Insulation Class | Class F |
| Cooling System | Fan-As-Needed (F.A.N.) |
| Dimensions | 947 x 457 x 1016 mm |
| Net Weight | 112 kg |
| Smart Features | Maxtrac Wire Drive System, Ready.Set.Weld Technology, ArcFX Monitoring |
| Standard Compliance | CSA, IEC 60974-1 |
| Primary Application | Industrial Fabrication, Metal Manufacturing, Maintenance Repair |
